Suzuki SV1000S, SV1000SD, and SV1000SF 2003 Factory Service Manual (P/N 99500-39250-03E)

• Coverage and identity: Covers the 2003 Suzuki SV1000SK3 (SV1000S) with the 996cc DOHC 90-degree V-twin. The label chart also references SV1000SD and SV1000SF; they do not receive separate repair chapters. This 477-page PDF reproduces Suzuki Motor Corporation Part No. 99500-39250-03E, issued February 2003.
• Engine and driveline repair: Details engine removal and installation, top- and bottom-end disassembly, cylinder-head and valve service, camshaft timing, piston and crankshaft inspection, bearing selection, clutch work, six-speed transmission service, starter clutch repair, and complete reassembly.
• FI diagnosis and fuel-system service: Provides user- and dealer-mode self-diagnosis, code reset, fail-safe coverage, C11-C49 fault charts, fuel-pressure testing, pump and filter service, throttle-body work, injector inspection, secondary-throttle checks, sensor adjustment, and synchronization.
• Chassis and hydraulic work: Covers fork-cartridge disassembly and setup, steering damper and steering-stem service, swingarm and rear-linkage repair, wheel and tire work, front and rear brake overhaul, and hydraulic clutch release- and master-cylinder service.
• Cooling, electrical, and emissions systems: Addresses radiator and cap testing, thermostat, fan controls, water pump, lubrication and oil cooler service, plus charging, starting, side-stand interlock, ignition, meter, switch, relay, lighting, and battery diagnosis. Regional sections cover PAIR, E-33 evaporative controls, and the E-02/E-19 heated oxygen sensor.

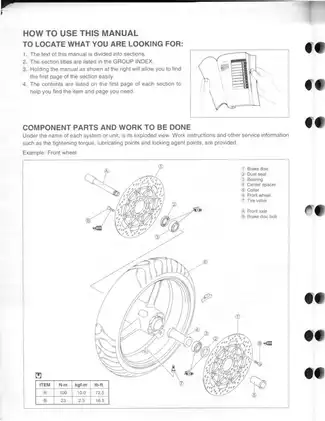

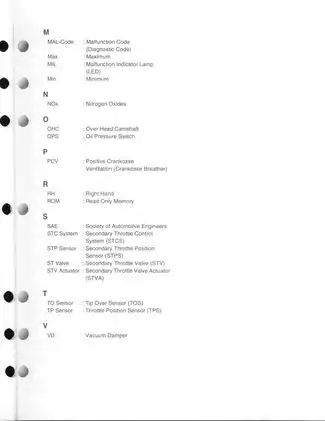

• Diagrams and workshop data: Supplies exploded views, torque tables, service limits, clearances, fluid data, electrical test values, and special-tool references. Visual support includes FI and full-system wiring diagrams, cooling and lubrication circuits, and wire, cable, and hose-routing views.

Suzuki states that this manual is written for people who already have the knowledge, skills, and equipment - including special tools - required to service its motorcycles. It is therefore best suited to trained technicians or experienced owners with a properly equipped workshop, rather than someone looking for a beginner-level maintenance guide.

Engine, Driveline, and FI Repair Depth

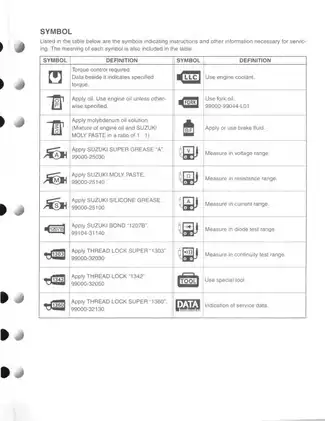

The maintenance section establishes the factory schedule and lubrication points, then moves into tappet-clearance inspection, throttle-valve synchronization, compression testing, and oil-pressure testing. The engine section distinguishes components that can be serviced in the frame from work requiring engine removal. Its repair coverage reaches the camshafts, cylinder heads, valves and seats, cylinders and pistons, connecting rods, crankshaft journals, crankcase bearings, oil jets, gearshift mechanism, clutch, and transmission. Inspection limits, color-coded bearing selection, tightening data, approved lubricants, sealants, and locking agents appear alongside the related procedures.

Fuel-injection troubleshooting occupies a dedicated chapter. It explains ECM injection and fuel-pump control, identifies FI component locations, and pairs malfunction codes with circuit inspection charts for the CMP, CKP, IAP, TP, ECT, IAT, AP, tip-over, secondary-throttle, gear-position, injector, fuel-pump relay, ignition-switch, oxygen-sensor, and PAIR circuits. Separate procedures cover fuel-pressure inspection, pump and mesh-filter service, throttle-body removal and reassembly, TPS and STPS adjustment, injector testing, fast-idle adjustment, and final synchronization.

Chassis, Electrical, and Regional Configuration

Chassis coverage goes well beyond routine pad and tire replacement. The manual handles fork internals and oil-level setup, steering-bearing inspection and tension adjustment, rear-shock settings, swingarm and cushion-link bearings, wheel-bearing replacement, wheel balancing, brake caliper and master-cylinder overhaul, and the hydraulic clutch circuit. Electrical troubleshooting uses system diagrams and test specifications for the generator and regulator/rectifier, starter and relay, side-stand/ignition interlock, ignition coils and sensors, combination meter, lighting, switches, and maintenance-free battery.

Country codes are identified for the UK (E-02), United States except California (E-03), EU (E-19), Australia (E-24), Canada (E-28), and California (E-33). California models receive evaporative-emission inspection and hose-routing coverage, while UK/EU configurations receive heated oxygen-sensor diagnosis. Labels and selected service data also vary by country code.

Factory References and Repair Cautions

Named service equipment includes the mode-selection switch 09930-82720, vacuum balancer set 09913-13121, crankcase-separating tool 09920-13120, fuel-pressure gauge adapter and hose 09940-40211 / 09940-40220, and dedicated fork assembly, seal-installation, and oil-level tools. Useful visual references include the FI wiring diagram, full-system wiring diagram, cooling circuit, engine-lubrication flow chart and circuit, side-stand/ignition interlock schematic, and component-specific harness and hose routings.

The factory cautions identify specific repair traps. The primary-drive fastener uses a left-hand thread and can be damaged if treated like a conventional fastener; unevenly drawing down the camshaft journal holders can damage the cylinder-head or holder thrust surfaces. Fuel, pressurized cooling, brake, clutch, and electrical work must follow the manual's safety and leak-check procedures, since improper repair can leave the motorcycle unsafe to operate.
