Triumph 650cc Twin Unit Construction Repair Manual 1963–1970 (P/N 99-0883)

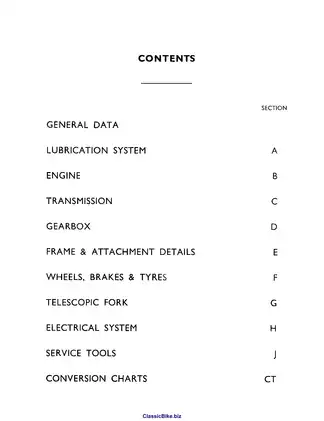

• A 236-page PDF reproduction of the Triumph Engineering Co. Ltd. factory workshop manual for 1963–1970 unit-construction 650cc twins: T120, TR6, and 6T from engine No. DU.101. U.S. coverage includes TR6R, TR6C, T120R, and T120TT, with T120TT coverage ending at DU.66245.
• Documents major engine repair work, including unit removal, rocker-box and cylinder-head service, valve and guide replacement, cylinder-block removal, piston and ring inspection, tappet service, crankcase separation, crankshaft work, and connecting-rod installation.
• Explains the dry-sump lubrication system and covers oil-pressure diagnosis, oil-pump and pressure-release-valve overhaul, filter and oil-passage service, rocker oil-feed work, and the factory wet-sumping check and scavenge-suction test.
• Follows the complete primary drive and clutch assembly into the four-speed gearbox, with procedures for kickstart and gear-change mechanisms, shaft bearings, sprockets, speedometer drives, internal inspection, dismantling, and reassembly.
• Handles chassis repair beyond basic adjustments: swinging-fork and rear-suspension service, wheel and bearing work, wheel building and alignment, brake relining, twin-leading-shoe brake service, and telescopic-fork dismantling, seal replacement, alignment, and hydraulic-damper repair.
• Provides home, export, and U.S. wiring diagrams for early and later coil-ignition systems, A.C. magneto energy-transfer ignition, alternator and rectifier circuits, Zener-diode charge control, contact breakers, and Lucas 2MC capacitor ignition, together with continuity, output, and component test procedures.

Factory Coverage and Reference Data

The repair depth makes this manual best suited to experienced owners, restorers, and professional mechanics who are comfortable using pullers, reamers, presses, precision measuring tools, and electrical test equipment. It goes well beyond routine tune-up information and supports complete mechanical and electrical repair.

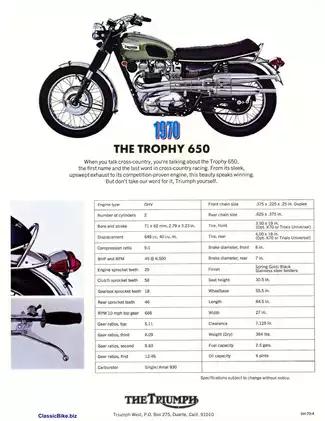

The General Data pages supply model-specific torque settings, fits and clearances, inspection limits, fluid capacities, carburetor setup data, ignition and valve timing, gearing and sprocket information, tire pressures, fork specifications, and alternator and stator output figures. Separate tables address U.S. models and earlier production configurations.

Coverage is organized around production changes rather than treating the full 1963–1970 run as a single build. The manual identifies changes at DU.5825, DU.13375, DU.24875, DU.44394, DU.58565, DU.63043, and DU.66246 involving fork construction, crankshaft location and main bearings, oil pumps, tappets and cam followers, charging equipment, carburetors, and ignition systems. It distinguishes Amal Monobloc machines before DU.66246 from later Concentric-equipped builds and provides both static and stroboscopic ignition-timing methods for the applicable production ranges.

Electrical coverage accounts for the different 6-volt and 12-volt arrangements, two batteries connected in series, early alternative charging rates, later Zener-regulated systems, A.C. energy-transfer ignition, and the Lucas 2MC capacitor system. The wiring section separates home, export, and U.S. configurations as well as machines before and after the major DU.24875 and DU.66246 changes.

Illustrations, Schematics, and Service Tools

The factory illustrations include the engine lubrication diagram, the exploded 650cc engine and gearbox unit, a sectional crankshaft view showing the internal oil tube, twin-leading-shoe brake assembly views, the exploded telescopic-fork hydraulic damper, and A.C. energy-transfer and serial-specific coil-ignition wiring diagrams. These provide direct references for parts identification, oil routing, component orientation, and assembly relationships.

A dedicated service-tool section identifies the equipment used during major repair operations. Examples include tappet guide-block punch 61-6008, crankcase parting tool 61-6046, stroboscope timing kit CP107, timing plate D2014, fork-leg alignment gauge Z103, and twin-leading-shoe brake anchor-plate spanner 61-6062. Conversion tables cover inch-to-metric dimensions, fractions and decimals, drill sizes, capacities, pressures, and British and Unified thread forms.

Production Changes and Workshop Cautions

Triumph introduced U.N.F. threads progressively through the frame group, so replacement fasteners must be matched to the thread actually fitted; assuming one thread standard across the motorcycle can damage the threaded parts. During engine repair, the manual also requires tappets to be returned to their original locations because mixing them can lead to excessive tappet and cam wear.

Engine removal, spring-loaded suspension work, brake overhaul, and powered electrical testing require secure motorcycle support, the specified service tools, and normal fuel and electrical isolation practices.
