Fendt Favorit 900 Tractor Workshop Manual Set, 2001 (P/N X 990.005.040.010 en)

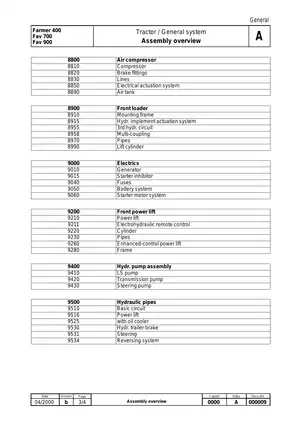

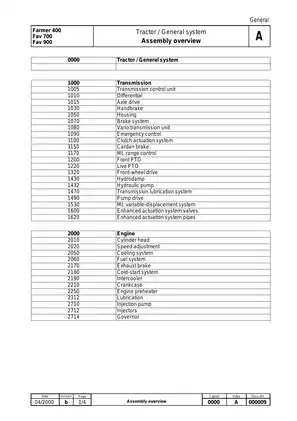

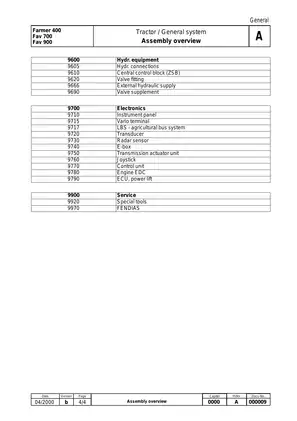

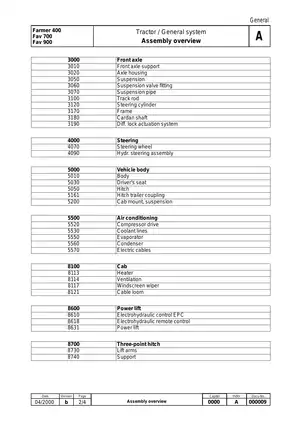

The two volumes follow the FENDOS assembly structure, connecting system descriptions and fault registers with component locations, testing, calibration and repair worksheets.

General coverage starts at chassis no. 23/3001 for each listed model; North-American versions are included unless a worksheet states otherwise. Individual applicability notes matter: the front-wheel-drive clutch repair sheets are marked for earlier 21/22 chassis versions.

Searchable PDF and Two-Volume Contents

Search, bookmarks and diagram detail: Embedded text supports searching across both volumes, with bookmarks for assemblies and individual worksheets. Small wiring labels require zooming; some crowded hydraulic annotations remain difficult to distinguish. The text is predominantly English, with some German diagram labels.

Delivered as one printable 1,245-page PDF, including both manufacturer cover pages and the service-information sheets within the volume totals above.

Vario, Engine and Hydraulic Workshop Coverage

These selected coverage highlights outline the main workshop subjects. Additional material includes air-conditioning electrical checks and single- and dual-line pneumatic brake-system tests.

• Engine repair: Step-by-step cylinder-head and valvetrain work, crankshaft and piston service, cylinder-liner replacement, and cooling and lubrication-system repairs.

• EDC and fuel injection: Fault-code testing, VP44 supply-pressure and start-of-delivery checks, injection-pump removal and installation, and injector testing.

• Vario transmission: Tractor separation, transmission-unit replacement, pressure measurements, ratio calibration, turboclutch operation and hydrodamp removal and installation.

• Brakes and PTOs: Brake and clutch hydraulic bleeding, rear-wheel and cardan-brake repairs, plus front and rear PTO clutch and gearbox service.

• Hydraulics and power lift: LS-pump replacement, SB 23 LS-EHS valve service, accumulator testing, EPC diagnosis, lift-cylinder repair and control calibration.

• Front axle and cab: Suspension troubleshooting, cross-member removal, steering-cylinder resealing, cardan-shaft service, and cab raising, removal and installation.

• Electrical diagnosis: Wiring diagrams, connector locations, sensor tests, CAN-bus checks, starter troubleshooting and electronic-control-module service.

Written for trained repair specialists, the manual assumes workshop equipment and identifies the additional diagnostic instruments and special tools required.

Engine Repair and VP44 Diagnosis

Engine service data distinguish standard dimensions, repair sizes and wear limits. The repair worksheets extend to valve guides and seat inserts, camshaft and timing-case work, bearing shells, piston rings and cylinder-liner projection.

Fault isolation: The EDC troubleshooting program links fault codes to test conditions, measurements and likely causes. Its no-start flowchart separates starter-control, fuel-supply and injection-control checks, providing a diagnostic path before pump or ECU replacement is considered.

The VP44 pump and its control module are matched components; the manual specifies replacement as a complete pump assembly. Start-of-delivery documentation identifies measuring pin X 899.980.245.101, while service information distinguishes air-filter ejector retrofit versions by serial number.

The valve-timing section warns that displacement of the camshaft drive gear can cause severe engine damage. Cooling-system coverage also explains how water-pump leakage should be assessed before replacement.

Transmission Testing and Calibration

Terminal A008 provides reference readings for investigating power loss and transmission overheating, while separate pressure and electrical measurements support diagnosis. Calibration code 4007 includes transmission-ratio calibration and explanations of its error messages.

The transmission hydraulic diagram and measuring-point illustrations connect circuit operation with the pressure-recording tables. The manual also distinguishes routine oil changes from filling an emptied high-pressure circuit: inadequate filling can damage the variable-displacement pump and motors through dry running.

Brake documentation specifies Pentosin CHF 11S for the brake and clutch actuation circuits and includes bleeding procedures and subsequent checks.

Hydraulic Controls and Electrical Tracing

EPC coverage includes draft and position sensing, shock-load damping, radar-based slip control and the EHR 23-LS control valve. Hydraulic test sheets distinguish LS-pump, steering-supply and control-pressure measurements.

Valve compatibility: Fav 700 and Fav 900 SB 23 LS-EHS valves are not interchangeable because their CAN-bus transmission rates differ. The valve-numbering and replacement sections explain the relevant configuration work.

Diagram coverage includes the front-suspension troubleshooting chart, steering-cylinder drawing, power and steering hydraulics schematic, and wiring sheets for the comfort bus, transmission bus and EDC engine control. Electrical documentation also covers optional LBS/Fieldstar equipment and the joystick’s front-loader third-circuit control.

Front-suspension accumulators retain pressure with the engine off. Follow the manual’s pressure-relief and tractor-support precautions before testing or disassembly.

Workshop Tools and Reference Data

Fuels-and-lubricants tables, component-specific torque data and electrical test specifications support the repair worksheets. Tool references include e-adapter box X 899.980.208.100; dimensioned drawings support fabrication of flywheel guide mandrels and sealing-cap pressing tools.

Examples from the Torque and Pressure Tables

For the covered tractors, wheel-fastener specifications are 450 Nm at the front and 620 Nm at the rear, with threads and locating faces lightly oiled.

The transmission pressure table gives a pump-control-circuit target of 25 ± 2 bar at PU/M5, at 800 rpm and a transmission-oil temperature of 35–45°C. These entries accompany the measuring-point diagrams and pressure-recording worksheet.
