Fendt Farmer 310/311 LS/LSA Tractor Workshop Manual, 1997 (P/N X 990.005.120)

The 1997 AGCO Fendt workshop manual, P/N X 990.005.120, covers Farmer 310 and 311 tractors in LS and LSA configurations, including FW/FWA 192 and FW/FWA 198.

PDF Bookmarks, Diagram Detail and Page Count

Navigation and readability: PDF text search is not available. Embedded bookmarks provide access to the major assemblies and many individual procedures. Small wiring labels require zooming, and some EHR connector markings remain faint at higher magnification.

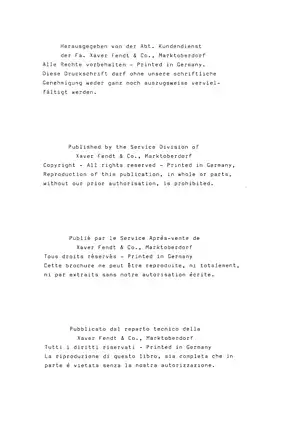

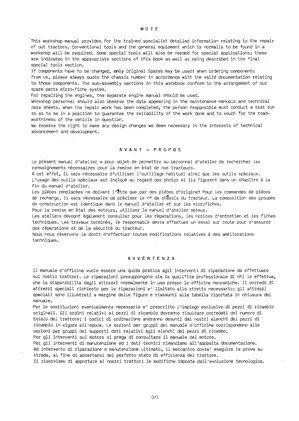

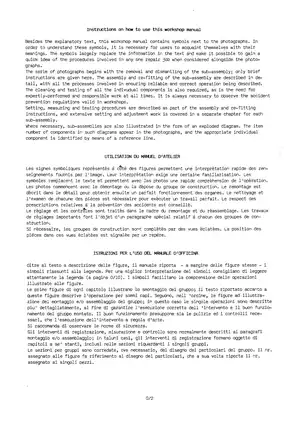

One printable PDF contains 1,101 pages, with English, German, French and Italian text. The total includes four opening pages containing the cover, copyright and introductory notes, plus 38 blank pages.

Clutch, Transmission and Tractor System Repairs

The following selected workshop topics show the manual’s coverage. Additional subjects include heater service and automatic hydraulic oil-flow combining.

• Engine removal: Removal, reinstallation and glow-start system testing. Internal engine repair requires the separate engine workshop manual X 990.005.003, which is not included.

• Clutches and transmission: Step-by-step procedures for PTO and driving clutches, Turboclutch service, gearshift adjustment, splitter transmission repair and super-creep gear overhaul.

• Axles and PTO: Differential and differential-lock service, final-drive repairs, front wheel bearings, rear PTO selector mechanisms and front PTO overhaul.

• Brakes and steering: Rear disc brakes, fixed-caliper driveshaft brakes, front drum brakes, master cylinders, bleeding procedures and Servostat steering tests.

• Hydraulics and EHR: Hydraulic pump replacement, lift-cylinder repair, control-valve pressure tests, lift-height adjustment and electronic hitch-control fault tracing.

• Electrical diagnosis: Wiring diagrams, connector references, sensor measurements, digital-indicator testing and replacement electronics-box coding.

• Pneumatics and air conditioning: Air-compressor repairs, single- and twin-line trailer-brake tests, and R12 air-conditioning evacuation, filling and troubleshooting.

Written for trained specialists, this manual assumes normal workshop equipment and identifies the special tools needed for particular jobs.

Transmission Variants and Assembly Details

The transmission chapters distinguish overdrive, splitter and super-creep arrangements, including versions with and without a lubrication pump. Rear PTO sections cover the different speed-selection and ground-speed configurations rather than treating every gearbox as identical.

PTO clutch instructions include cup-spring preload measurement and lock-washer selection. Turboclutch coverage distinguishes assemblies with and without a freewheel and explains the rotation check used to detect reversed freewheel installation.

The gearbox assembly instructions also identify a specific damage risk: incorrect positioning of the pinion-shaft washer can break off its locating lug.

Exploded views and numbered photographs identify subassemblies before dismantling. Rear-axle illustrations distinguish original and revised repair arrangements, helping the technician match the documented assembly to the components on the tractor.

EHR, Steering and Electrical Fault Finding

Separate hydraulic and electrical troubleshooting charts support diagnosis of lifting gear that will not raise, lower or hold a load. The electrical charts include fault-location procedures without the dedicated EHR tester; sensor and potentiometer sections also describe multimeter checks and use of tester X 899.980.186.

These tests connect symptoms with checks of the hydraulic supply, control valve, wiring and sensors, giving the technician a structured basis for deciding which area needs further investigation.

Servostat coverage includes pressure, circulation and internal-leakage tests, plus different steering-cylinder procedures for rear-wheel-drive and four-wheel-drive tractors. The digital-indicator chapter adds inductive-sensor tests and coding instructions for a replacement electronics box.

Reference drawings include tractor electrical circuits, EHR III wiring diagrams, hydraulic circuit diagrams, the pneumatic functional layout and the air-conditioning refrigerant circuit. EHR diagrams distinguish wiring configurations by chassis number and implement-socket equipment.

Brake, Cab and Workshop References

Brake coverage extends to wear checks, caliper sealing, master-cylinder replacement, adjustment and bleeding. Cab tilting and removal procedures support access to the assemblies beneath it.

The air-conditioning chapter addresses the original R12 system, including compressor-clutch operation, pressure-switch checks and fault charts.

Reference sections contain lubrication charts, fluid-capacity tables, engine-oil viscosity guidance, coolant-mixture specifications and metric fastener tables for grades 6.9, 8.8, 10.9 and 12.9. The special-tools section includes dimensioned drawings for workshop-made lifting and support fixtures.

Working on heavy machinery carries inherent physical risks; follow the manual’s support and lifting precautions when splitting the tractor or raising the cab.

Selected Clutch, Mounting and Hydraulic Specifications

The driving-clutch test specifies 8.5–9.5 mm of slave-cylinder release travel. For six-cylinder tractors, the front axle bracket installation specifies a maximum remaining gap of 0.15 mm between the bracket and oil sump after shim selection.

The fluid table lists 26 liters for the hydraulic system with a front loader. These examples accompany component-specific checking, fitting and filling information throughout the manual.
