1988 Honda BF9.9A & BF15A Outboard Motor Service Manual Set (P/N 66ZV400, 66ZV400Z)

Use the supplement with the base manual. It supplies revised specifications, wiring layouts, and component details; unchanged service procedures remain in the base publication.

PDF Bookmarks, Text Search, and Wiring Detail

Navigation and small labels: Text search works only on the appended contents page; the manual and supplement are not searchable. Embedded bookmarks link to the main sections and supplement. Small wiring labels require zooming, and some supplement labels remain difficult to read when enlarged.

The 143-page English PDF combines both publications in one printable file. The total includes the publication pages listed above and one added contents page.

Engine, Lower-Unit, and Electrical Service

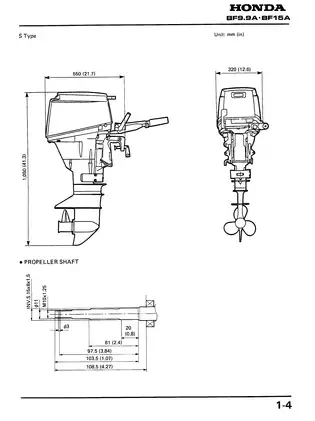

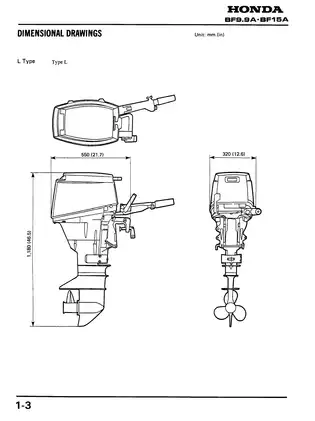

The selected topics below cover major service areas. The manual also includes dimensional drawings and illustrated lubrication points.

• Engine repair: Engine removal and installation, cylinder-head and valve service, timing-belt replacement, and crankshaft/piston disassembly and inspection.

• Fuel and cooling: Carburetor overhaul and adjustment, fuel pump and tank service, thermostat testing, and water-pump impeller inspection.

• Lower unit: Extension-case removal, gear-case disassembly, propeller-shaft and clutch-shifter service, plus bearing and water-seal replacement and shim selection.

• Electrical diagnosis: Hard-starting and ignition troubleshooting charts, starter-motor tests, CDI and rectifier checks, wiring diagrams, and connector layouts.

• Controls and mounting: Recoil starter repair, throttle and neutral-start cable adjustments, shift linkage, steering handlebar, stern bracket, and swivel-case service.

• Optional equipment: Lamp outlet and safety switch kit installation and testing, plus remote control kit assembly, cable connection, and adjustment.

This manual is suited to mechanics familiar with engine measurement and electrical testing who have access to the specified service tools and workshop equipment.

Model Variants and Serial-Number Changes

SC, SD, LC, and LD use recoil starting; SCS, SDS, LCS, and LDS add an electric starter. Illustrations are based primarily on the BF15A LCS.

The supplement documents the change from BG03A to BG03B carburetors on the BF9.9A and from BG06A to BG06B on the BF15A at the frame serial break listed above. Its comparison drawings also identify changes to charging and exciter coils, the regulator/rectifier, emergency stop switch, and shift lever/carrying handle.

These comparisons help match the carburetor and electrical layout to the motor before selecting replacement parts or test procedures.

Engine and Drive System Details

Cylinder-head repair extends to valve-guide replacement and reaming, valve-seat reconditioning, oil-pump inspection, and camshaft checks. The crankshaft/piston section covers the two-shaft balancer, Plastigauge clearance checks, and color-coded crankshaft bearing selection.

Step-by-step instructions cover timing-belt installation and recoil-starter rope assembly. The valve-guide procedure warns that improper heating can warp the cylinder head or loosen valve seats.

Lower-unit procedures include clutch-shifter pin work with pin flare tool 07968-9350000 and gear-case shim/washer selection using case identification marks. The Disassembly Chart separates work possible with the engine mounted from jobs requiring engine removal.

Fuel and Cooling Service

Carburetor exploded views show the float valve, main nozzle, and jets, with float-level inspection and model-specific pilot-screw settings. Fuel pump diaphragm inspection and fuel tank/primer-bulb assembly details accompany the fuel system routing drawing.

Thermostat checks specify valve lift against water temperature. The Cooling Path and Lubricating Path illustrations show the internal passages associated with overheating and oil-pressure diagnosis.

Electrical Tests and Wiring Diagrams

Four main wiring diagrams cover motors with and without electric starters, with separate layouts in the base manual and supplement. Harness and connector views identify wire colors and connection locations.

Component tests address the ignition, pulser, and exciter coils, plus starter armature insulation and overrunning-clutch operation. The base manual's CDI checks specify the SANWA SP-15D tester, 07308-0020000; the supplement supplies revised regulator/rectifier test data. Incorrect testers or ranges can produce misleading resistance readings.

The Mechanical Type Neutral Start System illustrations explain the interaction between shift linkage, the recoil starter, and the starter switch.

Follow the manual's precautions for gasoline handling, exhaust ventilation, rotating parts, and ignition voltage.

A Preview of Valve and Carburetor Adjustment Data

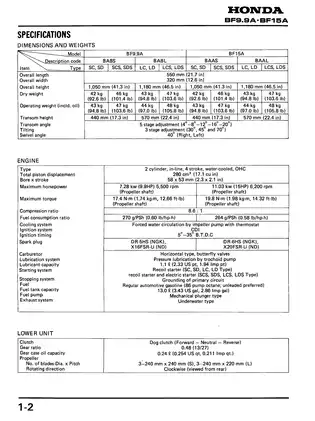

Separate maintenance-standard tables cover both models, including internal engine wear limits, oil-pump clearances, and electrical test values. The maintenance schedule, torque tables, lubricant capacities, and fuel tank specifications support routine service and repair.

For both models, the valve-clearance procedure specifies cold-engine clearances of 0.12 ± 0.02 mm for the intake valves and 0.20 ± 0.02 mm for the exhaust valves.

The carburetor inspection specifies a float level of 13.0–15.0 mm, measured when the float just contacts the float valve.
