STIHL 030 / 031 Chainsaw Service Manual

Troubleshooting, parts diagrams, and service data for the 030 & 031 chainsaws, including clutch, chain sprocket cover, and brake. PN 11136403201

4.7starstarstarstarstar_half(3)
visibility Preview Available

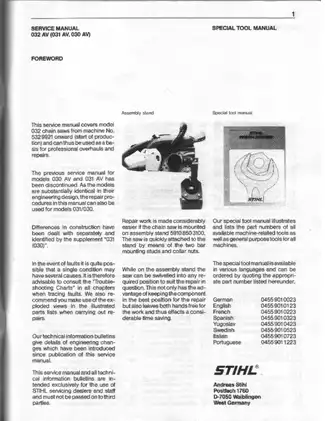

Stihl STIHL 030 / 031 Chainsaw Service Manual manual page preview - page 1 of 206

Sample pages from the STIHL 030 / 031 Chainsaw Service Manual manual

Stihl STIHL 030 / 031 Chainsaw Service Manual manual preview page 1 - thumbnail

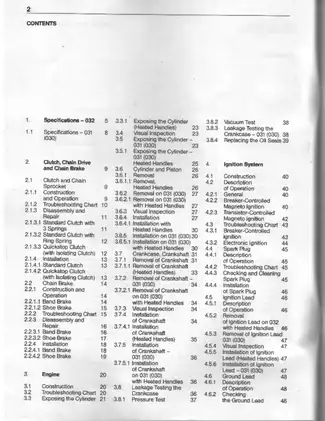

Stihl STIHL 030 / 031 Chainsaw Service Manual manual preview page 3 - thumbnail

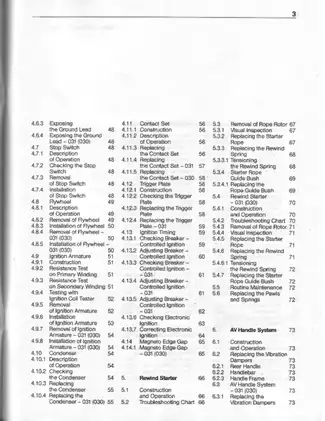

Stihl STIHL 030 / 031 Chainsaw Service Manual manual preview page 4 - thumbnail

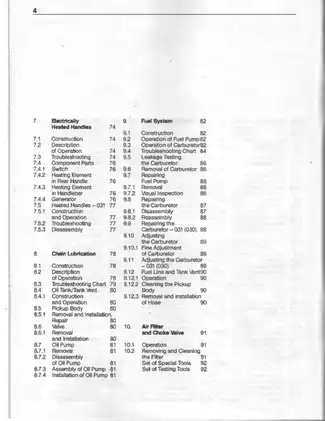

Stihl STIHL 030 / 031 Chainsaw Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$12.69 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Stihl Models Covered & Key Technical Specifications

Models: STIHL 030 AV, 031 AV, 032 AV
Sub-models / Variants: 030, 031, 032, 030 AV, 031 AV, 032 AV, Quickstop models, models with heated handles
Trade Names: STIHL Chainsaw
Build Years: 1970s–1980s
Technical Data:

  • Engine: Single cylinder two-stroke, 45–51 cc
  • Power: 2.4 kW (3.2 DIN HP) to 2.6 kW (3.5 DIN HP)
  • Ignition: Breaker-controlled or Transistor-controlled magneto
  • Carburetor: All-position diaphragm with integral fuel pump
  • Fuel Mix: 1:40 (STIHL two-cycle oil)
  • Oil Pump: Mechanical speed-controlled with plunger
  • Clutch: Centrifugal, 3,200 r.p.m. engagement
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
30198 / Amanda Murphy
File Size:
30.39 MB
File Type:
PDF
Language:
English
Pages:
206
Printable:
Yes
Category:
Chainsaw
Last updated / verified
Apr 13, 2026

Stihl Manual Features & Content Preview

Technical Scope for STIHL 030, 031, and 032 Chainsaws

  • Covers 1970s and 1980s STIHL 030, 031, and 032 chainsaws, including AV, Quickstop, and heated-handle variants
  • Official STIHL service publication P/N 11136403201
  • Contains 47 detailed exploded-view diagrams and 11 specific system troubleshooting charts
  • Delivered as a direct download the moment payment clears
  • Indexed PDF search covers every chapter and appendix
  • Detailed coverage of the 030 and 031 models alongside the later 032 series, documenting engineering commonalities and model-specific service procedures

Manual Organization and Content

This manual provides professional-grade technical documentation for the STIHL 030, 031, and 032 powerhead systems. The document begins by defining construction specifications for the two-stroke engine, ignition systems, and fuel delivery components. Separate sections detail the maintenance requirements for the chain lubrication system, including pump assembly and hose routing. Troubleshooting flowcharts are provided for engine, ignition, and fuel system issues, assisting in the isolation of faults during standard workshop operations.

Engine and Technical Specifications

Engine specifications for the STIHL 032 indicate a 51 cc displacement, with torque values for the crankshaft nut specified at 30 Nm. The ignition armature gap is documented at 0.2–0.3 mm for both breaker and transistor-controlled systems. Clutch assembly is standardized with 40 Nm of torque on the crankshaft mounting. Spark plug gaps are maintained at 0.5 mm using Bosch WSR 6 F or Champion RCJ 6 Y types. An official 206-page STIHL OEM workshop manual covering the 030, 031, and 032 chainsaws, documenting engine, ignition, chassis, and fuel-delivery specifications for this classic two-stroke equipment line.

Document Reference: Part No. 1113 640 3201

Manual FAQ, Purchase & Download Details

Can I see exploded views and component diagrams for the clutch and chain brake assemblies in this manual? keyboard_arrow_down

Manual includes multiple exploded views and illustrations that show the component breakdown for both the standard and isolating clutch systems as well as the chain brake mechanisms.

Which publication cues or model coverage references are included to help me verify this document is for my saw? keyboard_arrow_down

Service manual covers the 030 and 031 chainsaw models and references the 032 AV as part of the engineering design information. It also contains technical information bulletins and supplement notes that help identify engineering changes relevant to the covered equipment.

What kind of electrical system data such as wiring or ignition references does the document contain? keyboard_arrow_down

Ignition system sections provide descriptions of operation for both breaker-controlled and transistor-controlled magnetos. These sections also list specification tables for primary and secondary winding resistances, air gaps, and timing references.

Does the manual contain specification tables for tightening torques or engine tolerances? keyboard_arrow_down

Specification chapters include tables that list recommended tightening torque ranges for various fasteners and components, as well as general engine clearance and adjustment values.
