Stihl 046 Chainsaw Service & Parts Manual Set (1995–2004)
114 Pages • 1 Printable PDF (EN, DE, FR) • Download
Stihl Models Covered & Key Technical Specifications
Models & Model Codes: 046 (1128)
Sub-models / Variants: 046 W, 046 C, 046 Magnum, 046 Magnum R, 046 WVH, 046 Magnum BR
Model Years: 1995–2004 (1995, 1996 ,1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004)
Serial-number breaks (parts list): 046 series: up to 1 41 354 620 (cylinder-base screws) and up to 1 46 173 745 (tank-vent components); 046 WVH: up to 1 44 336 694 (generator, flywheel and wiring harness); 046, 046 W and 046 C: up to 1 41 628 723 (AV annular buffers).
-

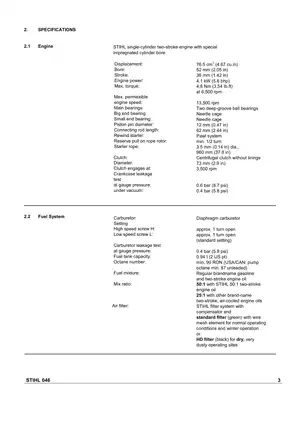

Engine displacement: 76.5 cm³ (4.67 cu.in)
-
Engine power: 4.1 kW (5.6 bhp)
-
Max. permissible engine speed: 13,500 rpm
-
Max. torque: 4.8 Nm (3.54 lbf.ft) at 6,500 rpm
-
Crankcase leakage test (gauge pressure): 0.6 bar (8.7 psi)
-
Carburetor leakage test (gauge pressure): 0.4 bar (5.8 psi)
-

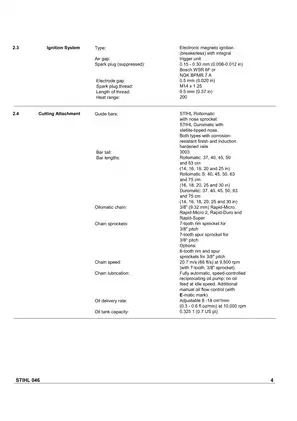

Spark plug electrode gap: 0.5 mm (0.020 in)
-
Ignition system air gap: 0.15–0.30 mm (0.006–0.012 in)
-
Fuel tank capacity: 0.94 liters (2 US pt)
-
Oil tank capacity: 0.325 liters (0.7 US pt)
Stihl Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| STIHL 046 Service Manual (© 1995) | 68 |
| STIHL 046 (1128) Spare Parts List (July 2004) | 46 |

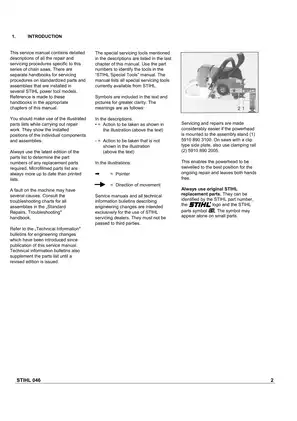

Use the service manual for workshop procedures and the illustrated parts list to identify components by model variant and, where listed, by serial number.
The separate Standard Repairs, Troubleshooting handbook is required for procedures such as internal clutch disassembly and starter rope rotor service. This set covers model-specific clutch removal and rewind spring service.
Search, Bookmarks, and File Contents
Text search and bookmarks: Search text in both publications and jump to service chapters or the start of the parts list. Small callouts in the wiring harness drawings are easier to read when zoomed in.
Both publications come in one printable, 114-page PDF. The service manual is in English, and the parts list gives descriptions in German, English, and French. The service contents page, the parts list’s combined cover and contents page, and its closing symbol key are included in the page count.
Selected Workshop Procedures and Parts Coverage
This selection of workshop topics covers major repairs and parts identification. Other examples include flywheel removal and decompression valve replacement.
- Engine repair: Cylinder and piston replacement, piston ring service, crankcase separation, crankshaft bearing replacement, and pressure and vacuum leakage tests.
- Chain drive and brake: Clutch drum and sprocket inspection, clutch removal, chain brake disassembly and function checks, and chain tensioner service.
- Fuel system: Air filter service, carburetor removal and adjustment, leakage testing, and procedures for the fuel hose, pickup body, tank vent, and tank housing.
- Ignition and heating: Ignition module, wiring harness, and generator service, with diagnostic charts and electrical test data for handle and carburetor heating.
- Starter and handles: Rewind spring replacement and tensioning, AV annular buffer replacement, and service for the Master Control switch shaft, throttle trigger, and interlock lever.
- Chain lubrication: Pickup body, suction hose, and oil tank vent valve service, plus removal and inspection of the automatic reciprocating oil pump.
- Parts identification: Exploded views, replacement part numbers, and variant listings for components such as HD-series carburetors and the non-US rescue saw conversion kit.
STIHL wrote the service manual for its servicing dealers. Internal engine work and electrical diagnosis assume repair experience and workshop equipment.
Crankcase, Cylinder, and Exhaust
The engine chapter gives step-by-step procedures for crankshaft removal and installation. It identifies the AS service tool (5910 007 2205) for the clutch side and the ZS tool (5910 007 2220) for the starter side. The crankshaft, connecting rod, and big-end needle bearing are replaced as an assembly.
Pressure and vacuum tests help trace air leaks that can affect idle and acceleration. The manual also covers oil seal replacement with the crankcase assembled and specifies separate press sleeves for the two sides. Exhaust coverage includes the Magnum spark arresting screen and inspection criteria for the catalytic converter.
Chain Brake, Tensioner, and AV Mounts
The chain brake section explains how incorrect anchor pin removal can damage the crankcase bore and prevent the spring from seating properly. Chain tensioner illustrations identify the adjusting screw, spur gear, and tensioner slide. The AV section specifies replacing damaged annular buffers as a set.
Fuel Supply and HD Carburetors
Fuel system illustrations show the impulse hose connections and tank housing layout. The service manual covers carburetor removal, installation, leakage testing, and adjustment. The parts list provides exploded views for internal parts identification, and a full carburetor overhaul procedure is outside the service manual’s scope.
The parts list identifies the HD-14A for Europe, the HD-16 for the US, and the HD-24A for the 046 Magnum BR. Separate exploded views show the earlier HD-8A and HD-9A carburetors.
Ignition and Cold-Weather Heating
The ignition chapter explains fixed timing, spark testing, wiring and stop-switch checks, and module replacement. Detailed testing of the ignition module requires specialized equipment.
For heated models, the handle-heating flowchart and resistance table help narrow a fault to the switch, generator, wiring, or one of the heating elements. The carburetor heater has its own diagnostic chart, heating element tests, and thermostatic switch procedures. The rear-handle instructions flag overheating caused by creases or poor bonding of the heating element.
Working on high-performance two-stroke equipment carries inherent risks. Follow the ignition-system precautions and consult a trained technician before unfamiliar teardown work.
Parts Drawings and Version Differences
The oil pump and clutch drawings and the wiring harness drawings pair numbered components with parts tables. Variant keys and serial-number breaks help match older components to the correct configuration before parts are ordered. The non-US rescue saw conversion kit lists parts for the 046/MS460. MS460 coverage is limited to that kit’s parts listing.
Examples of Assembly Torque and Carburetor Settings

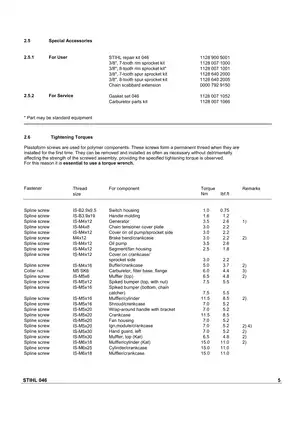

The cylinder installation procedure specifies 15.0 Nm (11.0 lbf.ft) for the cylinder base screws in a diagonal pattern. The torque table lists 25 Nm (18.5 lbf.ft) for the spark plug.
The carburetor’s standard baseline is one full turn open from seated for both the high-speed (H) and low-speed (L) screws. The adjustment section also covers tachometer use and altitude corrections.
