Massey Ferguson 362, 365, 375, 383, 390, 390T, 398 Tractor Shop Manual (1986–1992)

182 Pages • 1 Printable PDF (English) • Download

5.0starstarstarstarstar(1)
$26.40 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Massey-Ferguson Models Covered & Key Technical Specifications

Models: 362, 365, 375, 383, 390, 390T, 398

Models & Model Codes:

362 — 2WD (5726), 4WD (5727)

365 — 2WD (5270), 4WD (5271)

375 — 2WD (5006), 4WD (5007)

383 — 2WD (5266), 4WD (5742)

390 — 2WD (5008), 4WD (5009)

390T — 2WD (5723), 4WD (5724)

398 — 2WD (5010), 4WD (5011)

Sub-models / Variants: 2WD, 4WD; late models with high-speed gearbox (serial-number prefix S)

Model Years: 1986–1992 (1986, 1987, 1988, 1989, 1990, 1991, 1992)

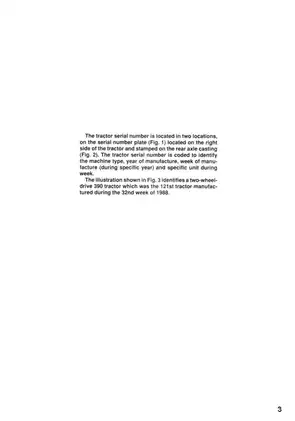

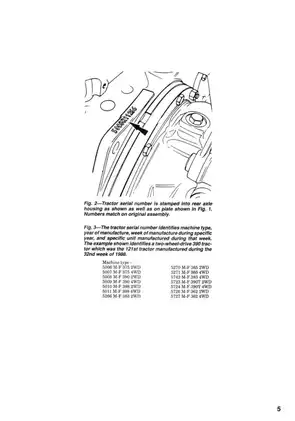

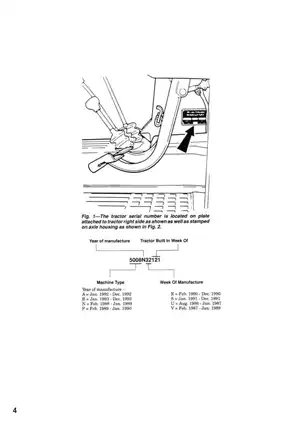

Serial Numbers: Wiring diagrams — up to V52267 (all models); V52268 to P22199 (with cab); V52268 to R14072 (without cab); from R14073 (without cab); R15144 to S00000 (with cab); after S01000 (with or without cab). Brake adjustment and slave cylinders — before V39466 / after V39465. Hydraulic relief valve — some tractors from N42314 have a non-adjustable cartridge.

Engine Serial Breaks: Fuel injection pump specifications — 365: before U261449S / after U261448S; 375: before U209016P / after U209015P; 390: before U226835S / after U226834S; 390T and 398: before U219832S / after U219831S.


  • Engine model: Perkins A4.236 — 362 (LD31234), 365 (LD31190), 375 (LD31140); A4.248S — 383 and 390 (LF31141); AT4.236 — 390T and 398 (LJ31142)

  • Number of cylinders: 4

  • Bore: 98.4 mm (3.875 in.) or 101 mm (3.975 in.)

  • Stroke: 127 mm (5.0 in.)

  • Fuel type: Diesel

  • Transmission types: 8-Speed Standard (365, 375, 383, 390; including overdrive versions); 8-Speed Synchromesh (362, 365, 375, 390); 12-Speed Synchromesh (362, 365, 375, 390, 390T, 398); 12-Speed Multi-Power (365, 375, 390, 398); 8-Speed Shuttle (362, 365, 375); 12-Speed Shuttle (365, 375, 390, 390T, 398)

Massey-Ferguson Manual Features & Selected Content Preview

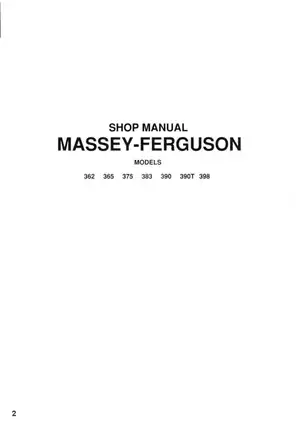

This shop manual covers 1986–1992 Massey Ferguson 362, 365, 375, 383, 390, 390T, and 398 tractors in 2WD and 4WD configurations. It contains mechanical repair procedures, system tests, adjustment specifications, and illustrated component assemblies.

PDF Search, Bookmarks, and Diagram Detail

Text search and navigation: Most body text is searchable, although OCR errors affect some terms and wiring labels. Embedded bookmarks link to the major sections. Small wiring-diagram labels require zooming.

One printable English PDF contains 182 pages, including one additional cover page.


Engine, Drivetrain, and Hydraulic Repair Coverage

The following selected coverage highlights are not a complete contents list. Additional topics include fuel-filter service and differential-lock linkage adjustment.

  • Engine and cooling: Step-by-step engine removal, cylinder-head service, piston and bearing inspection, timing-gear work, radiator removal, thermostat checks, and water-pump repair.

  • Diesel fuel system: Fuel-system bleeding, injector opening-pressure and spray-pattern tests, nozzle overhaul, injection-pump removal, and model-specific timing data.

  • Clutch and transmission: Dual and split-torque clutch overhaul, gearbox removal, synchronizer inspection, shift-fork adjustment, and Multi-Power clutch service.

  • Axles and brakes: Front-drive differential overhaul, rear planetary service, bearing-preload adjustment, brake-cylinder repair, and hydraulic brake bleeding.

  • Hydrostatic steering: Symptom-based troubleshooting, separate and tandem pump service, pressure tests, steering-cylinder overhaul, and control-valve repair.

  • Hydraulics and PTO: Lift-system troubleshooting, draft and position-control adjustments, auxiliary-system testing, and live or independent PTO repair.

  • Electrical system: Alternator inspection and testing, starter assembly views, circuit descriptions, and wiring diagrams selected by cab configuration and tractor serial number.

This manual is suited to experienced mechanics who can support a split tractor and use measuring equipment, hydraulic test gauges, and component-specific service tools.

Perkins Engine Repair and Cooling

The engine sections distinguish the A4.236, A4.248S, and turbocharged AT4.236 applications. Internal repair coverage extends to cylinder sleeves, piston rings, connecting rods, crankshaft bearings, the balancer assembly, and lubrication components, with inspection clearances and wear specifications.

The timing-gear illustration shows gear and balancer alignment. The accompanying cautions explain how incorrect independent rotation of the camshaft and crankshaft can cause valve-to-piston contact.

Cylinder-head service includes different bolt-tightening sequences for standard and late turbocharged engines. Cooling-system coverage includes water-pump disassembly and inspection; the turbocharger section provides an exploded view and overhaul information for the Garrett/AiResearch T31 unit.

Injection Testing and Pump Applications

Injector tests cover opening pressure, spray pattern, seat leakage, and leak-back. These tests distinguish different nozzle faults rather than treating every rough-running complaint as an injection-pump problem.

CAV DPA pump application tables separate engine builds and serial-number changes. Internal injection-pump service requires trained personnel and dedicated equipment for testing, repair, and adjustment.

Gearbox Variants and Axle Assemblies

Separate transmission chapters keep the procedures for standard, synchromesh, shuttle, and Multi-Power units distinct. Coverage includes internal shafts and gears, planetary units, PTO drive components, and adjustment of shift rails and forks.

The twelve-speed shuttle cross section shows the relationship between the main gearbox and range unit. Its range-shaft service section specifies pressing fixtures: hammering the bearing into place can cause damage leading to seizure and wider component failure.

Front-drive axle coverage distinguishes conventional and Hydralock differentials. Rear axle sections address normal-duty and heavy-duty planetary assemblies, with separate bearing and shim procedures.

Steering, Lift Hydraulics, and PTO Diagnosis

Steering pressure-test illustrations distinguish separate-pump systems from tandem-pump systems. For tandem pumps, the test accounts for circuit back pressure rather than treating the gauge reading alone as steering relief pressure.

Hydraulic troubleshooting connects symptoms such as jerky lift operation, failure to reach full height, and lift-link creep to possible causes. Linkage adjustment views distinguish tractors with and without Intermix, including the configuration used on some 398 tractors.

Independent PTO coverage includes clutch, brake, control-valve overhaul, and hydraulic pressure tests. Brake service also distinguishes the later high-speed gearbox arrangement, whose connected master cylinders require simultaneous bleeding.

Stop the engine, lower hydraulically operated equipment, and relieve circuit pressure before opening hydraulic lines or test ports.

Electrical Circuits and Wiring Selection

The electrical section includes alternator rotor tests, Lucas and Perkins starter assembly views, and a shared component and wire-color legend. Cab and non-cab wiring diagrams are separated by serial-number applicability.

These drawings represent common configurations; wiring on individual tractors may differ. Matching the diagram to the tractor configuration supports circuit tracing during workshop diagnosis.

Preview: Cooling, Valve, and Steering Specifications

The cooling-capacity table lists 14.4 liters for the 362. Valve adjustment data specify 0.3 mm (0.012 in.) cold clearance for both inlet and exhaust valves across the covered models.

For tractors with a separate steering pump, the steering pressure-test section specifies 17,262 kPa at 1,200 rpm. Tandem-pump systems use a different test specification that accounts for circuit back pressure.
