Land Rover Range Rover Classic 1987–1991 Workshop Manual (P/N SRR652USWM A)
864 Pages • 1 Printable PDF (English) • Download
Land Rover Models Covered & Key Technical Specifications
Models: Range Rover Classic
Sub-models / Variants: 4 Door Station Wagon, North American Specification, 3.5 V8, 3.9 V8 (engine identification suffix 38D)
Model Years: 1987–1991 (1987, 1988, 1989, 1990, 1991)
-
Engine: V8, eight cylinders (two banks of four)
-
Engine displacement: 3528 cc (3.5 L) and 3950 cc (3.9 L)
-
Transmission: ZF4HP22 automatic, LT230 transfer gearbox (3.5 V8) or Borg Warner transfer gearbox (3.9 V8)
-
Fuel system: Lucas Hot-wire electronic fuel injection
-
EFI serial break: 3.9 V8 with Lucas 14CUX — after VIN No 451518, ECU PRC 8747 replaces PRC 7081 and the tune select resistor is deleted
-
Idle speed: 665 to 735 rev/min
-
Brake system: Hydraulic, servo-assisted with disc brakes
Land Rover Manual Features & Selected Content Preview
This Land Rover factory workshop manual covers North American-specification Range Rover Classic vehicles for 1987–1991, including the 3.5 V8 and 3.9 V8. Publication SRR652USWM A incorporates amendments through September 1990 and applies to vehicles manufactured for the United States and Canada.
PDF Search, Bookmarks, and Diagram Detail
Search and drawing limitations: Much of the text is searchable, but the later general-specification pages and part of the ABS section lack searchable text. Thirty embedded section bookmarks provide navigation. Dense wiring labels require zooming; some labels and lines in the 1991 main circuit diagram remain faint or incomplete when enlarged.

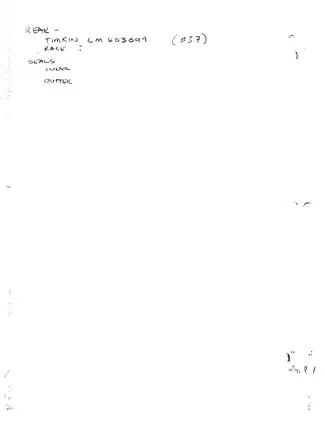

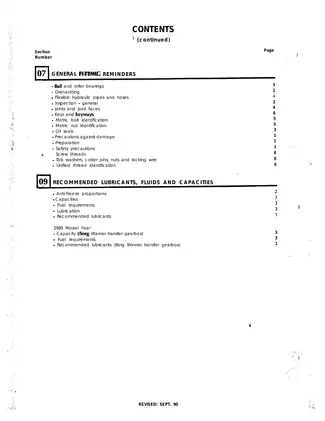

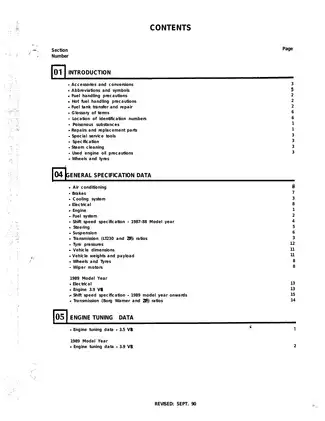

One printable English PDF contains 864 pages, including publication and introductory material, 18 blank pages, one handwritten note page, and a repeated 36-page air-conditioning section.
V8 Overhaul, Four-Wheel Drive, and System Diagnosis
The following selected repair topics outline the manual’s coverage. Other material includes exhaust-system replacement and wheel-balancing checks.
-
Engine repair: Step-by-step removal, teardown and assembly, cylinder-head and valve-gear overhaul, timing-chain and camshaft work, crankshaft and piston inspection, and oil-pressure testing.
-
Transmission and transfer boxes: ZF 4HP22 shift and pressure diagnosis, leak repair, clutch and gear-train overhaul, LT230 rebuilding, and narrower Borg Warner service coverage.
-
Axles and steering: Differential setup, hub, CV-joint and swivel-housing overhaul, steering-box rebuilding, hydraulic pressure testing, and suspension service.
-
Brake systems: Conventional master-cylinder, servo and caliper repair, plus WABCO ABS depressurization, bleeding, blink-code diagnosis, and electrical component tests.
-
Fuel injection and emissions: Lucas 13CU, 14CU and 14CUX continuity checks, fuel-pressure tests, oxygen-sensor service, evaporative-system testing, and emissions maintenance schedules.
-
Electrical troubleshooting: Model-year wiring diagrams, component-location views, charging and ignition tests, starter and alternator overhaul, and wiper and central-locking fault diagnosis.
-
Heating and air conditioning: Heater-component replacement and A.R.A. R-12 diagnosis, evacuation, leak testing, charging, and component replacement, including later system revisions.
Written for skilled technicians, this manual also addresses owners with repair training and appropriate equipment, while directing safety-critical steering, brake, and suspension repairs to a Range Rover dealer.
Model-Year Changes and EFI Identification
Model-year headers separate the original procedures from later additions. Coverage tracks the 3.5 V8 used through 1988 and the 3.9 V8, Lucas 14CU EFI, and Borg Warner viscous-coupling transfer box introduced for 1989.
The 1990 additions cover Lucas 14CUX EFI, integrated WABCO ABS, and a revised cooling layout. The 1991 material addresses the plastic fuel tank, combined pump/sender unit, improved vapor control, anti-roll bars, and glass sunroof.
The 14CUX section identifies the ECU and tune-select-resistor change after VIN 451518. This distinction helps match the diagnostic routine to the installed ECU.
Engine and Transmission Overhaul Depth
Engine inspection and assembly instructions include machining limits, oil-pump checks, connecting rods, hydraulic tappets, and component wear specifications. Incorrect rocker-shaft orientation can obstruct valve-gear lubrication.
The ZF material extends to static checks, kickdown adjustment, control-unit and valve-body setup, the governor, parking mechanism, planetary assemblies, and A–F clutch groups. Its torque-converter removal cautions identify the pump bush and seal lip as damage risks.
LT230 versus Borg Warner: LT230 rebuilding includes the center differential, input and intermediate gears, bearing preload, torque-to-turn checks, output housings, and differential-lock and neutral-switch adjustment. Borg Warner coverage includes lubrication, towing and dynamometer precautions, identification, and removal/refitting with the ZF assembly; it does not provide an equivalent internal transfer-box overhaul.
Chassis, ABS, and Body Repairs
Ring-and-pinion setup is supported by pinion-height and bearing-preload information. Separate ABS axle procedures address the different hub and swivel assemblies.
The ABS chapter adds wheel-sensor and solenoid tests, ECU checks, accumulator assessment, and hydraulic fault charts. The hydraulic booster is replaced as a complete unit if it fails internally; reservoir and seal replacement are covered separately.
Body material includes chassis datum drawings, aluminum-panel repair precautions, door and glass service, and sunroof adjustment.
Maintenance, Cooling, and Climate Systems

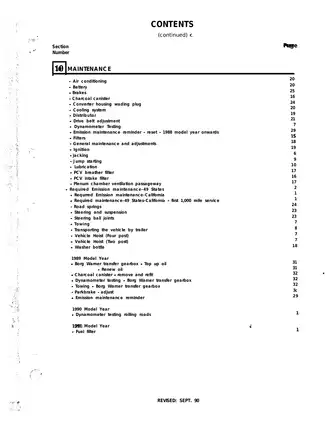

The maintenance section separates the first 1,000-mile service from California and 49-state emissions schedules, with recurring service tables through 105,000 miles. Related sections supply approved lubricants, capacities, shift speeds, engine tune data, tolerances, wear limits, and assembly torque tables.
Cooling procedures distinguish the earlier layout from the later radiator/oil-cooler arrangement and revised expansion tank. Heating and air-conditioning instructions cover heater cores, blower components, compressors, evaporators, and receiver-driers. Refrigerant-line work is assigned to qualified service personnel with the required equipment.
Circuit Diagrams and Workshop Tools
Main circuit diagrams cover every model year from 1987 through 1991. System-specific examples include Lucas EFI, Hella cruise control, WABCO ABS, window lifts and door locks, and heater/air-conditioning circuits. Diagnostic charts connect symptoms with checks across the engine, cooling, steering, transmission, and electrical systems.
Tool references include 18G1501 torque-converter handles, the LST118 transmission holding fixture, LST1016-1 clutch spring compressor, and 18G191 pinion-height setting gauge. Dimensioned fixture and transmission-hoist adaptor drawings support workshop preparation.
Examples of Piston Clearances and Oil-Pressure Test Data
Piston-to-bore clearance is specified as 0.018–0.033 mm for the 3.5 V8 and 0.018–0.041 mm for the 3.9 V8, measured at the bottom of the skirt at right angles to the piston pin.
The engine oil-pressure test specifies a minimum of 25 psi at 2,400 rpm with the engine at normal operating temperature. That test applies to an installed engine that has completed more than 1,000 miles and contains 15W/40 oil.
