2001 Kawasaki ZRX1200R / ZRX1200S / ZRX1200 Factory Service Manual PDF

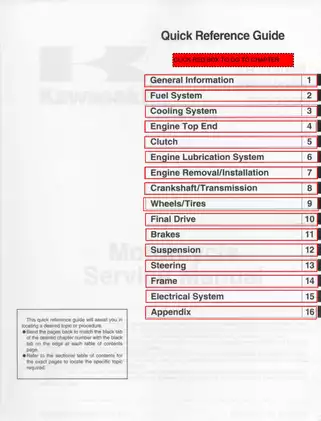

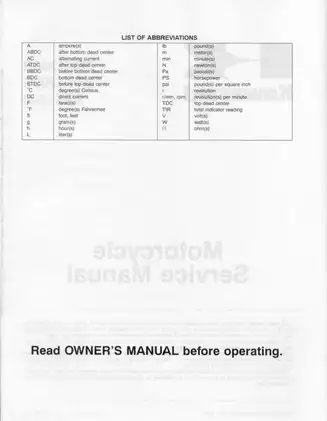

This 2001 Kawasaki ZRX1200 series factory service manual covers the ZRX1200R (ZR1200-A1), ZRX1200S (ZR1200-B1), and ZRX1200 (ZR1200-C1). The first edition, dated January 31, 2001, brings together maintenance, diagnostic, and repair procedures across 16 sections.

• Engine repair: DOHC engine removal and installation, cylinder-head service, valve-clearance adjustment, piston inspection, crankcase separation, and crankshaft bearing selection.

• Fuel system: Keihin CVK36 carburetor cleaning, synchronization, idle adjustment, and service fuel-level checks, plus California evaporative-emission testing.

• Cooling and lubrication: Cooling-system pressure testing, thermostat evaluation, water-pump inspection, oil-pump service, and oil-pressure diagnosis.

• Clutch and transmission: Hydraulic clutch bleeding, master/slave-cylinder service, clutch inspection, and transmission disassembly with shift-fork and drum checks.

• Chassis service: Wheel and tire work, drive-chain and sprocket inspection, brake overhaul, front-fork oil changes, and steering-stem bearing lubrication.

• Electrical diagnostics: Charging and ignition troubleshooting, starter-motor overhaul, throttle-position-sensor adjustment, junction-box testing, and regional wiring diagrams.

• Maintenance references: Periodic service charts, torque and locking-agent tables, cable and hose routing, special tools, and symptom-based troubleshooting.

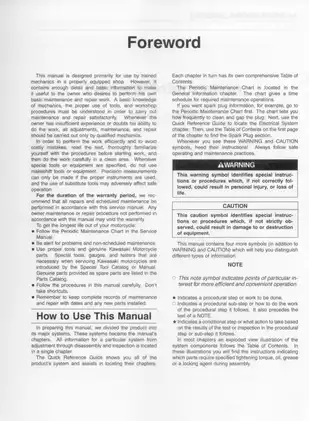

Written primarily for trained mechanics in properly equipped shops, this manual also supports basic maintenance and repair by owners familiar with mechanics, tools, and workshop procedures.

Carburetor Setup and Emission Variants

Carburetor cutaway views identify the pilot circuit, float valve, and vacuum piston. The specifications separate US/Canadian jetting from California and other versions. California evaporative-emission diagrams show the separator, canister, and vacuum-valve connections, helping match the routing information to the installed equipment.

For additional KLEEN catalyst theory, maintenance, and handling precautions, this manual refers readers to separate ZX900C/D or ZX600J publications, which are not included. Work in a properly ventilated area with appropriate protective equipment when handling heavy components or volatile fluids.

Engine Top End, Crankshaft and Transmission

Valve work includes intake and exhaust clearance inspection, shim-selection charts, and valve-seat repair. Cylinder-head tightening instructions distinguish bolt sizes and stages. The manual warns that camshaft caps are machined with the head; incorrect placement can cause camshaft seizure.

Engine inspection tables provide piston clearances and bearing wear limits, while crankshaft bearing tables relate identification marks to replacement inserts. Transmission procedures cover shaft assembly and the positive neutral finder, with gear ratios in the general specifications. Balancer coverage is incomplete in this file: printed page 8-18 is missing, while page 8-17 is repeated.

Cooling and Lubrication Diagnosis

Coolant flow charts accompany radiator and thermostat service. Water-pump seal or impeller damage calls for pump replacement.

Engine-oil flow diagrams explain how the left pump supplies lubrication and the right pump clears oil from the crankshaft and balancer chamber. Pressure-test guidance relates abnormal readings to pump, relief-valve, and bearing condition.

Brakes, Suspension and Frame Work

Brake exploded views support caliper and master-cylinder servicing. Fork coverage includes seal and bushing replacement, but excludes disassembly of the internal cylinder unit. Rear-shock coverage comprises adjustment, removal, inspection, and replacement.

The chassis chapters also cover wheel bearings, tire fitting, drive-chain alignment, and swingarm service, with chassis geometry in the general specifications. Fairing instructions distinguish the R and S bodywork. Fender procedures are incomplete because printed page 14-14 is missing.

Electrical Tests and Regional Wiring

The three-phase AC alternator section provides stator, rotor, regulator, and rectifier tests. Ignition troubleshooting connects pickup-coil and ignition-coil measurements with IC-igniter diagnosis. Tool references include Hand Tester 57001-1394 and Throttle Sensor Setting Adapter 57001-1400.

Wiring diagrams distinguish A/C versions for Europe and Australia, A versions for the US/Canada and Malaysia, and B versions for Europe, Australia, and Malaysia. Separate headlight and junction-box circuits help select the appropriate regional tests.

Selected Carburetor, Cooling and Oil-Pressure Specifications

A small selection of the manual's diagnostic values illustrates its technical detail. Carburetor synchronization allows a vacuum difference of 2.7 kPa or less between any two carburetors at idle with the engine warmed up. Radiator-cap relief pressure is specified at 93–123 kPa.

The engine-oil pressure standard is 200–290 kPa at 4,000 rpm with oil at 90°C. These examples accompany the relevant test procedures and inspection criteria in the manual.

Printable PDF, Chapter Access and Page Limitations

Navigation and wiring detail: The PDF has no usable full-text search. Bookmarks cover the main chapters, although General Information opens at the title page. Several page runs are out of order, and printed General Information page 1-3 is missing. Small wiring labels need enlargement, and some remain faint or soft.

The download contains one printable, 394-page PDF: seven opening pages and 387 pages in the chapter sequence, including three duplicates. The cover, front matter, and appendix are already included in that total.
