HP Color LaserJet 1500/2500 Series Service Manual – 2003 (P/N Q2488-90901)

This HP OEM service manual (P/N Q2488-90901, Edition 1) covers the hardware configurations, subsystem operations, and control systems for the 2002–2003 HP Color LaserJet 1500, 1500L, 2500, 2500L, 2500n, and 2500tn printers.

Searchable Text, Bookmarks, and Wiring Detail

Search and diagram access: Body text and tables are searchable, with embedded bookmarks for chapters, subsections, and the index. Some diagram labels are not searchable. Small labels in the main wiring diagrams are readable when enlarged; the DC-controller connection image is less sharp.

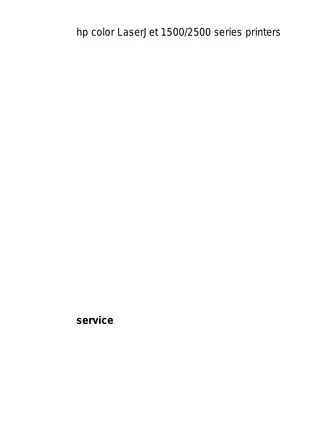

One printable English PDF with 309 pages, including two cover/title pages and seven blank or footer-only pages.

Imaging, Paper Feed, and Internal Printer Service

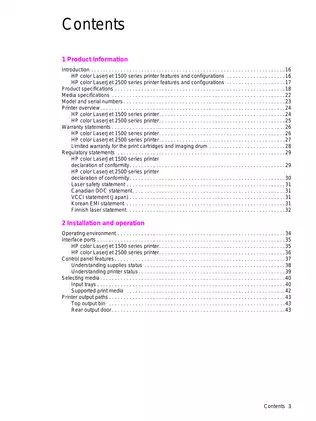

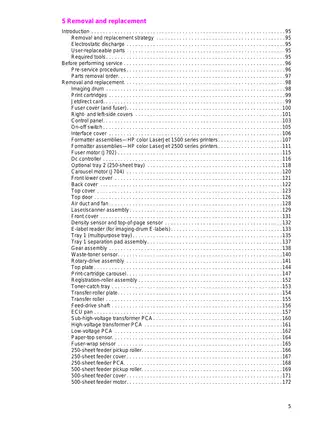

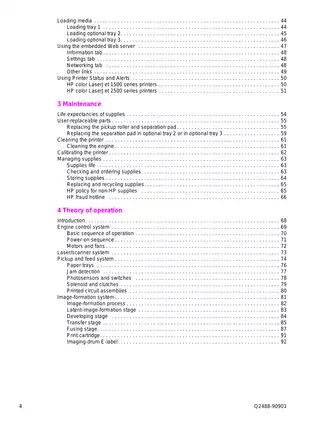

The selected topics below are part of a broader contents list that also covers media loading and printer-status monitoring.

• Imaging repair: Print-cartridge, imaging-drum, and fuser replacement, engine cleaning, printer calibration, and diagnosis of monochrome and color image-quality problems.

• Paper-feed service: Pickup-roller and separation-pad replacement, registration-roller and transfer-roller procedures, jam troubleshooting, and paper-path checks.

• Carousel and drive assemblies: Step-by-step removal and replacement procedures for the print-cartridge carousel, rotary-drive assembly, and fuser motor, with gear-alignment notes.

• Electronics repair: Laser/scanner, formatter, DC controller, ECU pan, and high-voltage, sub-high-voltage, and low-voltage printed circuit assembly removal and replacement.

• Service diagnostics: Control-panel light-message tables, engine tests, high-voltage connection checks, cold resets, NVRAM initialization, and PJL commands for restoring printer information.

Suited to printer service technicians familiar with internal laser-printer assemblies and equipped for ESD-protected electronics repair.

Model Configurations and Service Scope

System overviews detail memory configurations, tray capacities, and network connectivity. The 1500 series has nonexpandable memory and Hi-Speed USB; the 2500 series adds DIMM expansion, parallel connectivity, and an EIO slot. The 2500n and 2500tn include an HP Jetdirect 615n print server.

Separate formatter procedures distinguish 1500 and 2500 hardware. The removal chapter covers field-replaceable units (FRUs); accessory-error and PostScript troubleshooting apply to the 2500 series.

Optional-feeder procedures also cover the tray 2 PCA and the tray 3 motor, with tray 3 service limited to the 2500 series.

Print-Quality Diagnosis and Calibration

The repetitive image defect ruler relates recurring print-mark spacing to specific rollers, the drum, and fuser components. This helps technicians narrow down the source of a repeated defect before choosing replacement parts.

An engine test bypasses formatter processing to help distinguish print-engine faults from formatter problems. On 2500 models, the formatter must still be connected to the ECU for this test.

Cold reset and NVRAM initialization are explained separately, including the settings each changes. NVRAM initialization also resets factory information such as page counts and the formatter number. PJL commands restore printer information and page counts after formatter replacement or initialization.

Printer calibration is documented for manual and Toolbox-triggered execution. Toolbox procedures depend on the supported Windows software; the 1500 Toolbox does not support Macintosh.

Imaging Systems and Internal Repairs

The theory of operation chapter explains primary charging, laser-beam exposure, developing, primary and secondary transfer, and transfer-belt cleaning.

Separate sections map out the operational sequences governed by the DC controller, including power-on states, engine control logic, and laser/scanner control.

Manual carousel rotation has separate procedures for units with and without the brake-access guide. Reinstallation notes address carousel gear alignment, feed-drive timing-belt orientation, and ECU grounding connections.

The carousel's thin right swing-shaft bushing is easily broken when rotated. The gear-assembly procedure also warns that disconnecting the clutch cable at the clutch can damage it.

Because working with internal high-voltage power supplies and heated fuser elements carries inherent risks, follow the manual's safety and ESD precautions during hands-on repair work.

Wiring Diagrams and Parts Reference

The manual contains 155 numbered figures and 53 tables. Illustrations include Laser/scanner system, General timing chart—WAIT period, Dc controller connections, and the two-part Main wiring diagram.

The Rotary (carousel) assembly exploded view links to its parts list; alphabetical and numerical parts lists provide references across the printer and optional feeders.

Electrical and acoustic specifications, media limits, and estimated supply life are tabulated. Parts references distinguish regional fuser and low-voltage PCA variants.

Sample Repeat Distances for Print-Defect Diagnosis

The repetitive image defect ruler lists repeat distances of 66.6 mm for the pressure roller, 75.6 mm for the fuser film, and 148.3 mm for the cartridge drum. These distances describe the spacing between successive occurrences of the same defect on a printed page.
