Hewlett Packard Models Covered & Key Technical Specifications

Models: Color LaserJet 4600, Color LaserJet 4600n, Color LaserJet 4600dn, Color LaserJet 4600dtn, Color LaserJet 4600hdn, Color LaserJet 4610n, Color LaserJet 4650, Color LaserJet 4650n, Color LaserJet 4650dn, Color LaserJet 4650dtn, Color LaserJet 4650hdn

Models & Model Codes:

Color LaserJet 4600 — HP: C9660A

Color LaserJet 4600n — HP: C9692A

Color LaserJet 4600dn — HP: C9661A

Color LaserJet 4600dtn — HP: C9662A

Color LaserJet 4600hdn — HP: C9663A

Color LaserJet 4610n — HP: Q7732A

Color LaserJet 4650 — HP: Q3668A

Color LaserJet 4650n — HP: Q3669A

Color LaserJet 4650dn — HP: Q3670A

Color LaserJet 4650dtn — HP: Q3671A

Color LaserJet 4650hdn — HP: Q3672A

Sub-models / Variants: Base model, n (Network), dn (Duplexing + Network), dtn (Duplexing + Tray + Network), hdn (Hard disk + Duplexing + Network)

Model Years: 2000–2006 (2000, 2001, 2002, 2003, 2004, 2005, 2006)


  • Print Speed: 17 ppm (4600 models), 22 ppm (4610n/4650 models) on letter-sized paper

  • Max Resolution: 600 x 600 dpi (ImageREt 2400/3600)

  • Processor: Integrated CPU

  • Memory: 96 MB to 288 MB (varies by configuration)

  • Connectivity: Parallel, USB 1.1 (4610n/4650), EIO slots (4600/4650), Auxiliary port (4650)

  • Power Consumption (110V): 426 W (4600 printing), 560 W (4610n/4650 printing)

  • Media Weights: 60 to 176 g/m2 (4600), 60 to 199 g/m2 (4610n/4650)

  • Dimensions: 566 mm H x 480 mm D x 456 mm W (Base models)

Hewlett Packard Manual Features & Selected Content Preview

This HP Color LaserJet service manual (P/N Q3668-90970, Edition 1, February 2005) covers the 2000–2006 Color LaserJet 4600, 4610n, and 4650 printers, including the applicable n, dn, dtn, and hdn configurations.

Searchable Text and Schematic Detail

Search and bookmarks: Search the main text for fault codes and component names, or use the embedded bookmarks to jump to service procedures, diagrams, and parts lists. Many schematic labels are graphical and are outside text search. Zoom in and rotate the sideways 4610n/4650 circuit diagram to read small pin and connector labels.

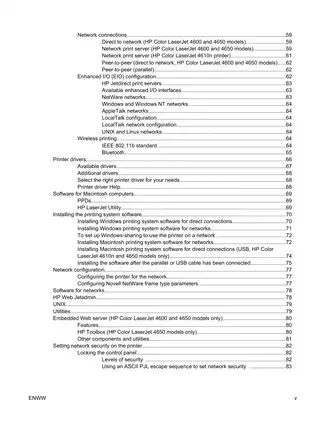

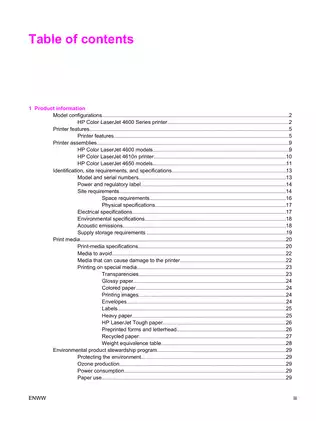

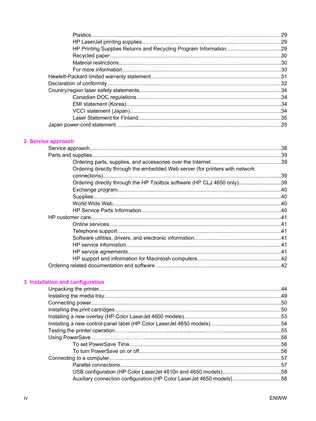

The download contains one printable English PDF with 550 pages, including 14 front-matter pages, 534 numbered pages through the index, one unnumbered blank page, and the back cover.


Printer Diagnostics and Assembly Replacement

These selected service topics cover part of the manual. Additional sections explain control-panel language settings and how to print the event log.

  • Engine and image formation: DC controller and formatter operation, high- and low-voltage power supplies, laser/scanner operation, toner-level detection, and color registration.

  • Maintenance: Cleaning procedures for the printer and accessories, along with guidance on print cartridges, the transfer kit, and the fuser kit.

  • Assembly replacement: Illustrated procedures for removing and replacing the fuser, electrostatic transfer belt (ETB), laser/scanner units, formatter PCA, and paper pickup assembly.

  • Paper handling: Pickup rollers, separation pads, duplex transport, optional feeders, jam-location charts, and tray-specific troubleshooting.

  • Diagnostic tests: Engine and formatter tests, component tests, Print/Stop testing, and model-specific sensor checks for feed and image defects.

  • Calibration and configuration: Color-plane registration, drum-phase calibration, NVRAM initialization, service-menu settings, and replacement-controller configuration.

  • Electrical and parts references: Circuit diagrams, PCA connector-location views, exploded assembly illustrations, and alphabetical and numerical replacement-parts lists.

The internal removal and replacement procedures are intended for authorized service personnel. The chapter specifies an ESD-protected workstation and gives electrical isolation, hot-fuser, and laser-safety precautions.

Engine Controls and Circuit Diagrams

The theory-of-operation sections explain how the DC controller coordinates the formatter, power supplies, fuser heating, and image formation. The fuser power-supply circuit and image-formation diagrams tie those descriptions to the hardware.

PCA and connector-location views support fault tracing. General circuit diagrams cover the 4610n/4650 and applicable optional feeders. The designated 4600 general circuit figure contains only a placeholder symbol. Separate circuit and connector figures are still available for 4600 subsystems.

Jam, Fuser, and Print-Quality Diagnosis

Separate error-message tables cover the 4600 and the 4610n/4650, including 13.XX.YY paper-path faults and 50.X fuser errors. Jam-location charts and sensor-state tables help distinguish a tray-specific feed problem from a fault farther along the paper path. The dedicated Manual Sensor Test applies to the 4610n and 4650.

The Print/Stop test helps determine whether a defect is already present before the image reaches the fuser. The manual also covers print-quality test pages, repetitive-defect diagnosis, and the model-specific Calibrate Now, Quick Calibrate Now, and Full Calibrate Now commands. The reset sections explain what cold resets, NVRAM initialization, and DC-controller calibration resets do to stored settings.

Assembly Replacement and Parts Selection

The repair procedures cover field-replaceable assemblies. Laser/scanner units are serviced by replacement, and circuit boards are treated as complete assemblies. The laser/scanner removal instructions explain how to support the chassis to avoid flex that can skew the beams and cause image defects.

For the 4610n and 4650, the manual specifies replacing the formatter first if both the formatter and DC controller need replacement. It explains how to transfer the original CompactFlash card and verify that stored configuration data returns before replacing the controller.

Exploded views for the fuser and paper pickup assemblies are paired with parts tables. Model-specific part numbers and voltage designations help identify the correct field-replaceable unit.

Memory, Networking, and Media

Installation coverage distinguishes the 4600 memory and firmware DIMMs from the DDR memory and CompactFlash arrangements in the 4610n and 4650. The 4610n uses an external HP Jetdirect 175x print server. Optional paper feeders and an internal hard disk are available on applicable 4600 and 4650 configurations.

The media tables give separate requirements for the multipurpose tray, cassettes, and duplex path. They cover labels, transparencies, envelopes, and glossy stock. The multipurpose tray accepts heavier plain paper than the standard cassettes.

Examples from the Repetitive-Defect Spacing Table

For marks that repeat on the front of a print, the diagnostic table links 33 mm spacing to the developing cylinder and 94 mm spacing to the photosensitive drum. Both components are in the print cartridge.

The table links a 107 mm repeat accompanied by poor fusing to the fuser sleeve. Measure the spacing on the affected print and use the table to identify the likely assembly. The illustrated reference ruler may print out of scale.
