Kawasaki ZZ-R250 1990–1996 Service Manual Supplement (P/N 99924-1129-54)

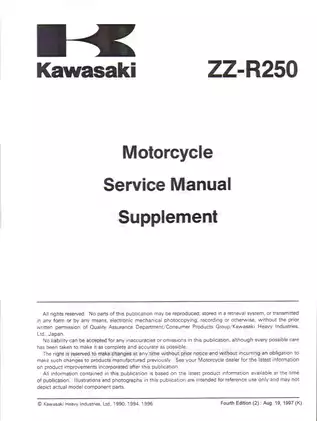

This Kawasaki ZZ-R250 service manual supplement, P/N 99924-1129-54, is Fourth Edition (2), dated August 19, 1997. It provides EX250H-specific maintenance and repair information for EX250-H1, H2, H3, H4, H5, and H7. Complete servicing also requires the EX250E base service manual, P/N 99924-1066-01, which is not included.

PDF Bookmarks, Wiring Detail, and Page Count

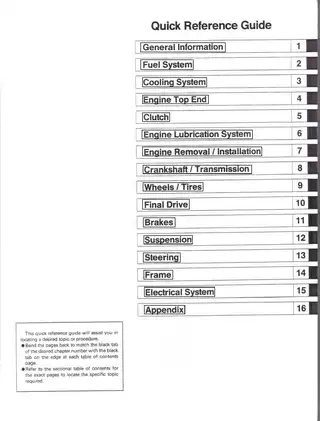

Chapter access and diagram detail: Embedded bookmarks open all 16 chapters and the introductory sections. The manual text is not searchable; only a few added navigation labels contain searchable text. Small wiring labels require magnification, and some lettering remains soft when enlarged.

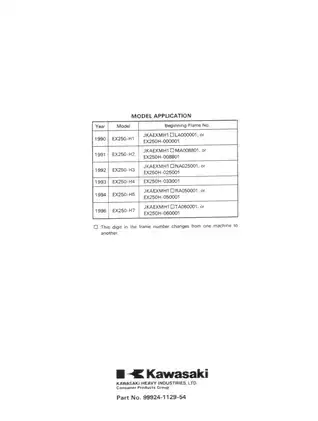

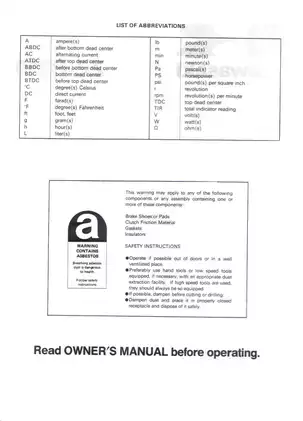

One printable English-language PDF contains 125 pages: 117 chapter pages, seven opening pages including covers and introductory material, and one closing page repeating the model-application table.

Fork Service, Chassis Repair, and Electrical Testing

The following selected contents show the supplement’s main workshop coverage. Other topics include turn-signal bulb replacement and rear-frame removal.

• Fuel and cooling: Air-cleaner and fuel-tank removal, carburetor coolant-filter cleaning, thermostat removal, and supplementary notes for cable adjustment and carburetor synchronization checks.

• Engine and transmission: Top-end wear limits, compression-test equipment, clutch installation notes, bearing-selection tables, lubrication specifications, and external shift-linkage adjustment.

• Wheels, chain, and brakes: Wheel removal and installation, hub-bearing replacement, drive-chain adjustment and replacement, engine-sprocket service, and brake-caliper removal.

• Front fork and Uni-trak suspension: Step-by-step procedures for fork oil changes, fork disassembly and assembly, shock removal, spring-preload adjustment, and linkage removal.

• Electrical diagnosis: Radiator-fan and fan-switch tests, tachometer checks, junction-box relay and diode tests, IC igniter resistance tables, and maintenance-free battery checks.

• Wiring references: Charging, ignition, electric-starter, and radiator-fan circuits, plus model-specific wiring diagrams and electrical component-location views.

Written primarily for trained mechanics in an equipped shop, the supplement also supports owners doing basic maintenance and repair who understand mechanics, tools, and workshop procedures.

Engine Reference Data and Base-Manual Dependencies

Engine and drivetrain: The tables distinguish standard dimensions from service limits for camshafts, valves, pistons, clutch components, crankshaft bearings, and transmission parts. Bearing-selection charts connect component markings with insert colors and part numbers.

Compression-measurement notes identify gauge 57001-221 and adapter 57001-1317. Keihin CVK30 carburetor data distinguish Austrian and Swiss settings, while the synchronization-check notes specify vacuum gauge and tachometer 57001-1291.

Scope: Valve-clearance adjustment, internal engine overhaul, steering-stem servicing, and starter-motor overhaul refer to the base manual. The engine-lubrication section supplies an exploded view and specifications; its oil-flow chart and service procedures also refer to the base manual. These references are not standalone instructions in this PDF.

The cooling section supplies coolant, radiator-cap pressure, and thermostat specifications alongside model-specific removal and installation information. Cooling-system pressure, fuel vapors, and electrical testing require the precautions described in the manuals.

Suspension Work and Reassembly References

Fork service includes oil-level measurement, seal and guide-bush replacement, and the specified holding and installation tools. The Uni-trak sections cover shock, swingarm, tie-rod, and rocker-arm removal, with preload-setting guidance.

The suspension notes warn that forcing loaded mounting bolts can damage the bolts, sleeves, and bearings.

Cable, wire, hose, and pipe routing views show paths around the steering head, frame, and carburetors. These references help restore the documented routing after components have been removed. Exploded views identify fasteners, lubrication points, and locking-agent requirements.

Electrical Differences and Fault Isolation

Model-specific checks: Separate IC igniter tables and junction-box diagrams distinguish EX250-H1–H4 from EX250-H5/H7. Australian and Malaysian electrical provisions are identified where applicable. Maintenance-free battery inspection and charging information applies from EX250-H5 onward.

The fan-circuit tests help distinguish a fan-motor fault from a switch, fuse, or wiring problem. Junction-box tests address starter/headlight relays and diodes; the Electric Starter Circuit provides the related circuit reference.

Full wiring layouts cover EX250H1/H2/H3/H4, EX250-H5/H7 Australia models, and EX250-H5 Europe models. The instrument-removal section also warns that leaving the meter assembly upside down or on its side can cause malfunction.

A Preview of Ring, Coolant, and Spark-Plug Specifications

The engine top-end table lists a standard end gap of 0.30–0.45 mm for the top and second piston rings, with a service limit of 0.8 mm. It separates these figures from ring-groove clearance and piston-to-cylinder measurements.

The cooling specifications list a total coolant quantity of 1.0 L. The electrical specifications give a spark-plug gap of 0.6–0.7 mm alongside the standard and optional plug references.
