Yamaha XV1600 Road Star 1998–1999 Service Manual (P/N LIT-11616-12-56)

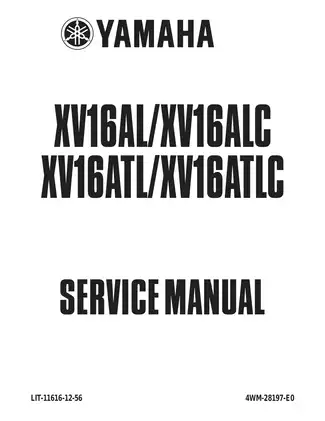

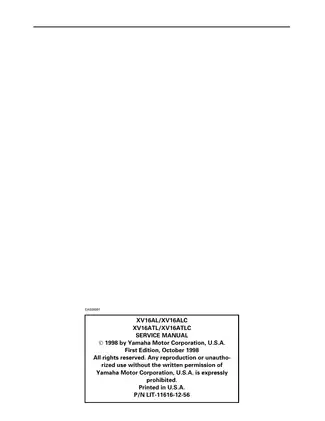

Yamaha factory service manual P/N LIT-11616-12-56, also marked 4WM-28197-E0, First Edition, October 1998, for XV16AL/XV16ALC and XV16ATL/XV16ATLC Road Star models.

Searchable PDF and Wiring Diagram Detail

Text search and diagram access: Body text and the wiring legend support PDF text search. There are no embedded PDF bookmarks. Small wire-color and connector labels require zooming; the full wiring diagram is presented sideways.

Delivered as one printable 449-page PDF in English. The total already includes six pages of original cover and front matter, the wiring diagram, and the manufacturer's back cover.

Engine Overhaul, Chassis Service, and Electrical Diagnosis

These content highlights show selected repair and diagnostic coverage rather than a complete contents list. Further topics include instrument functions and battery-charging methods.

• Engine repair: Step-by-step engine removal and installation, cylinder-head and piston work, crankshaft inspection, and crankcase assembly.

• Clutch and transmission: Wet-clutch inspection, transfer-gear-case service, and transmission disassembly, inspection, and reassembly.

• Carburetor and emissions: Carburetor disassembly, fuel-level and throttle-position-sensor adjustment, fuel-pump checks, and air-induction-system inspection.

• Brakes and wheels: Master-cylinder and caliper overhaul, hydraulic bleeding, wheel-bearing replacement, brake-disc inspection, and front and rear wheel static balancing.

• Suspension and belt drive: Front-fork overhaul, steering-head service, swingarm and rear-shock removal, and drive-belt and pulley replacement.

• Electrical troubleshooting: Circuit-based ignition, starting, charging, lighting, signaling, fuel-pump, carburetor-heating, and self-diagnosis tests.

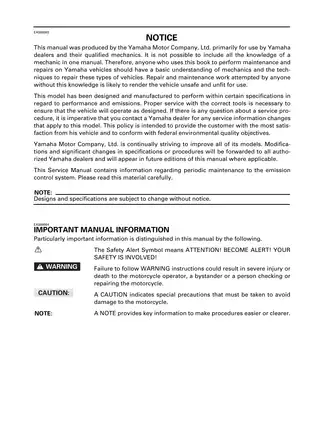

Yamaha wrote this manual primarily for its dealers and qualified mechanics; it assumes an understanding of motorcycle mechanics and repair techniques.

Valvetrain, Lubrication, and Internal Engine Work

Hydraulic lifters and decompression: The engine section covers rocker arms, push rods, valve lifters, camshafts, and the auto-decompression mechanism. Hydraulic lifters normally maintain valve clearance automatically, but the manual also provides a check and adjustment procedure for maladjusted or worn components and a separate lifter-bleeding procedure.

Internal inspection: Valve and guide service extends to seat inspection and lapping. Other sections address the generator and starter clutch, engine oil pump, crankshaft and connecting rods, and transmission shift drum and forks.

The periodic-maintenance charts distinguish valve-clearance checks, belt-tension checks, and transfer-gear oil replacement. General, engine, chassis, and component-specific torque specifications accompany the repair sections.

Carburetor Setup and Variant Differences

Fuel delivery uses a BSR40 Mikuni carburetor and an electric 4WM Mitsubishi fuel pump. The carburetor chapter covers internal inspection, reassembly, fuel-level measurement, TPS adjustment, and fuel-cock operation; air-induction coverage includes reed-valve and air-cutoff-valve checks.

California equipment: Carburetor identification distinguishes 4WM2 10 for California from 4WM1 00. The evaporative-emission layout identifies the canister, rollover valve, hoses, and solenoid connections.

XV16AT equipment: Separate removal charts cover the windshield, backrest, saddlebags, passenger footrests, and related stays. Specification tables distinguish model-specific wet weights, rear-shock installed spring lengths, and carburetor pilot-outlet specifications.

Chassis Repair and Rear-Shock Scope

Front-fork instructions include disassembly, inspection, seal installation, Yamaha 5WT oil specifications, and oil-level measuring conditions. Brake coverage addresses the dual front discs, single rear disc, and DOT 4 hydraulic system.

Rear-shock limits: Coverage includes removal, external inspection, preload adjustment, and suspension-linkage work. Yamaha warns against opening the nitrogen-charged shock absorber; this section should not be treated as an internal damper-rebuild guide.

The manual flags damage risks from loading wheel-bearing inner races or balls during installation and from solvents that swell brake-caliper piston seals. Its belt-adjustment section also explains how excessive tension can overload components, while insufficient tension can let the belt skip and damage the swingarm.

Working on a motorcycle of this size involves heavy assemblies, hydraulic brakes, and supported wheel or engine work. Use the complete Yamaha procedures and appropriate mechanical expertise for hands-on repair.

Fault Codes and Circuit-Based Troubleshooting

The transistorized coil ignition uses two spark plugs per cylinder. Self-diagnosis covers the throttle-position sensor, speed sensor, decompression solenoid, and fuel-level meter, with indicator patterns of 3, 4, 6, and 8 respectively.

The condition-code table connects faults with system responses: a speed-sensor fault invokes an approximately 4,400 r/min limiter, while a decompression-solenoid fault can prevent starter operation. Together with the circuit tests, this helps distinguish an electrical starting fault from a mechanical starting problem.

The troubleshooting chapter covers incorrect idle, poor medium- and high-speed performance, difficult shifting, jumping out of gear, clutch slip or drag, overheating, poor braking, fork faults, unstable handling, and lighting faults.

Workshop Diagrams and Test Equipment

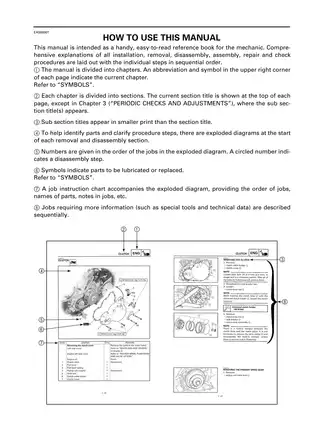

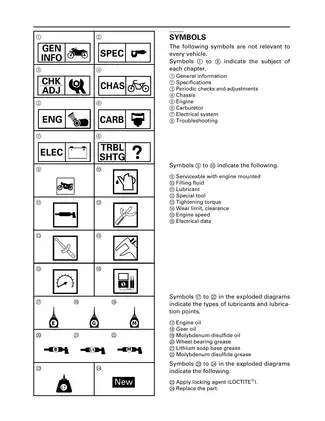

Exploded diagrams and job instruction charts identify parts and organize removal and disassembly work. Named references include the Engine Oil Lubrication Chart, Engine Oil Flow Diagrams, Transfer Gear Oil Flow Diagrams, Cable Routing, Starting Circuit Cutoff System Operation, and the model-specific Wiring Diagram for USA and CDN.

Mechanical test tools: References include fuel level gauge YM-01312-A, belt tension gauge YM-03170, compression gauge YU-33223 with adapter YU-33223-3, and oil pressure gauge 90890-03153.

Electrical test tools: The procedures specify dynamic spark tester YM-34487 and pocket tester YU-03112.

Compression, Oil-Service, and Belt-Slack Examples

Standard compression pressure at sea level is 1,200 kPa (171 psi) at 200 r/min. The dry-sump oil-service specifications distinguish 3.7 L without oil-filter replacement from 4.1 L with replacement.

For the UBD-0568 drive belt, the manual specifies 7.5–13 mm slack on the sidestand or 14–21 mm on a suitable stand with the rear wheel elevated, measured with 4.5 kg (10 lb) force. The stated checking conditions are a cold engine and a dry belt.
