1999–2000 Harley-Davidson Dyna Glide Twin Cam 88, FXD, FXDX, FXDL, FXDWG, FXDS-CONV, FXDXT, and FXDP Factory Service Manual

• Covers the 1999–2005 Harley-Davidson FXD Twin Cam 88 Dyna family. The main chapters identify FXD, FXDX, FXDL, FXDWG, FXDXT, and FXDP Dyna Defender models, with FXDS-CONV Dyna Convertible coverage specified for 1999–2000. The 2002–2005 supplement adds later production changes, the 2004-on EFI variants FXDI, FXDXI, FXDLI, and FXDWGI, plus 2005 FXDC/FXDCI Super Glide Custom information.
• Documents engine removal and in-frame repair. Internal coverage includes rocker arms and pushrods, cylinder heads and valves, pistons and cylinders, lifters, the oil pump, camshafts and support plate, crankcase separation, crankshaft inspection, reassembly, and break-in.
• Details primary-chaincase, clutch, compensating-sprocket, starter-jackshaft, and transmission repair, including clutch-pack inspection, shaft and gear disassembly, main-drive-gear service, shifter-cam work, and the revised 2003-on shift-arm arrangement.
• Addresses carburetor disassembly and adjustment, throttle and enrichener cables, fuel tanks and gauges, shutoff valves, exhaust, and California evaporative-emission equipment. Supplemental EFI sections cover engine sensors, the induction module, fuel-pressure components, pump and filter assemblies, and fuel-injected tank hardware.
• Includes wheel-bearing end play, laced-wheel truing, drive-belt alignment, and model-specific fork, steering-head, rear-shock, and swingarm procedures. Brake coverage distinguishes 1999 from 2000-on configurations and covers calipers, pads, master cylinders, hoses, discs, and bleeding.
• Provides starter voltage-drop and current-draw tests, charging-system and alternator checks, ignition and coil diagnosis, TSM/TSSM and instrument procedures, diagnostic trouble-code tables, and electrical test specifications. Year/model wiring diagrams cover carbureted, EFI, FXDWG, and FXDP configurations.

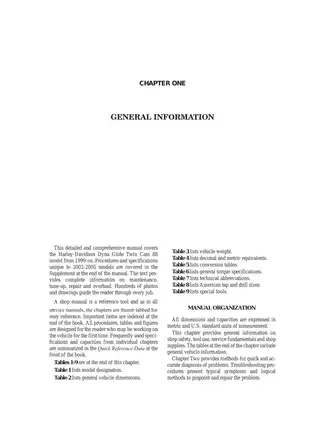

This is the Clymer M425-3 independent repair manual, not a Harley-Davidson OEM workshop publication. The 595-page PDF contains the Dyna repair chapters, the 2002–2005 supplement, index, and wiring section through PDF page 590. Pages 591–592 are separate cover and contents sheets. The final three Quick Reference Data pages identify FLH/FLT Touring models rather than Dyna models and should not be used for Dyna specifications.

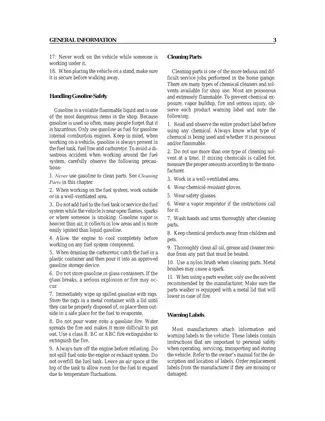

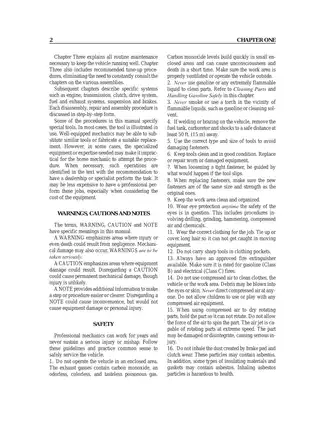

Repair and Diagnostic Depth

The base chapters go beyond routine maintenance. They cover major mechanical teardown, inspection, repair, adjustment, and final checks for the Twin Cam 88 engine, five-speed transmission, clutch and primary drive, fuel system, chassis, and brakes. Troubleshooting starts with operating symptoms and then moves into system tests for starting, charging, ignition, fuel delivery, clutch operation, transmission behavior, vibration, steering, suspension, and braking.

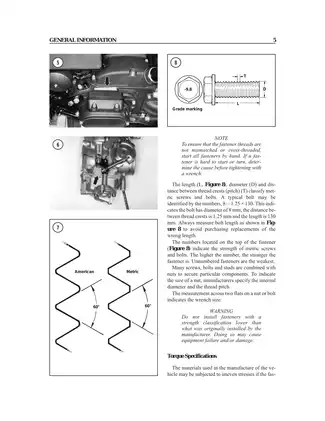

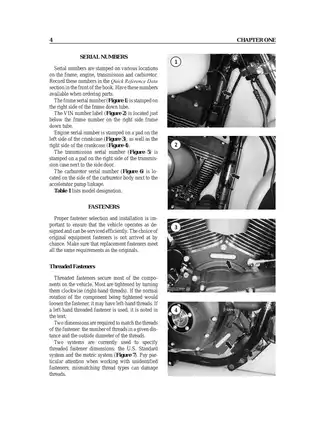

Reference tables supply component-specific torque specifications, capacities and approved lubricants, service limits, clearances, adjustment data, and electrical test values. The manual also identifies factory-style service equipment and aftermarket equivalents. Examples include the JIMS 1283 cam-chain tensioner tool, JIMS 1285 cam/crank sprocket lock, JIMS 1279 inner cam bearing remover, JIMS 1278 installer, H-D 35381 belt-tension gauge, and H-D 39618 transmission-pawl adjuster.

Production Changes That Matter During Repair

The engine section separates the early-1999 rear cam-sprocket arrangement from the later-1999-on splined design. It also warns that 1999 and 2000-on oil-pump parts are different and are not interchangeable. Those distinctions matter before ordering parts or selecting the applicable assembly view. The cam-support-plate material further notes that forcing the assembly when the camshaft ends are not aligned with the inner needle bearings can damage those bearings.

Other year-specific coverage includes 1999–2000 versus 2001 compensating-sprocket parts, several shifter-system revisions, 1999 and 2000-on wheel-hub and brake differences, 2002-on suspension changes, and the revised 2005 clutch-inspection-cover gasket. The supplement is designed to be used with the corresponding main chapter: it supplies the changed procedures and specifications rather than repeating unchanged work.

EFI Scope, Diagrams, and Wiring

The 2002–2005 supplement adds basic EFI troubleshooting and mechanical service around the sensors, induction module, fuel-supply hardware, and pressurized tank components. Complete electronic EFI diagnosis and idle-setting procedures require Harley-Davidson Digital Technician equipment and related specialty tools; the manual directs unresolved electronic faults to a properly equipped dealer.

Illustrations include separate early- and later-1999 camshaft-and-cover assemblies, the 2003-on shift assembly, EFI engine-sensor and induction-module views, and year-specific front-brake-caliper layouts. The wiring section covers 1999–2000 and 2001–2003 model groups, 2001–2004 FXDP, and 2004–2005 carbureted and EFI configurations, with separate FXDWG and speedometer/tachometer diagrams where applicable.

Engine timing, pressurized fuel-system work, steering repair, and hydraulic brake service can cause component damage or unsafe operation when the wrong model-year procedure or tool is used. Match the motorcycle’s exact configuration to the applicable chapter and supplement section before beginning repair.
