Harley-Davidson Dyna 2003 Service & Electrical Diagnostics Manual Set (P/N 99481-03A)

The electrical publication pairs fault-isolation charts and circuit tests with the service manual's component-repair procedures, keeping diagnosis and repair references together.

Carbureted models only: Fuel-system and engine-management coverage is for the carbureted configuration, not EFI. Pre-delivery operations and parts identification are assigned to the separate Predelivery and Setup Manual and Parts Catalog.

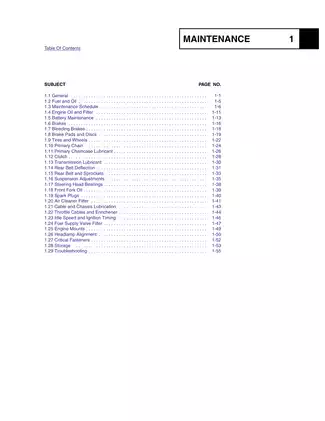

Searchable Text, Bookmarks and Wiring Detail

Search and diagram access: Manual text is searchable; the added cover is not. Chapter and subsection bookmarks cover both publications, although the separate “Keyword Search” bookmark has no destination. Dense main-harness diagrams require zooming to read small connector numbers and wire-color labels.

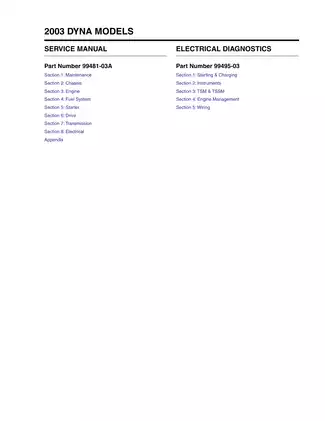

One printable, English-language 686-page PDF contains both publications, including the service manual's tool, wiring and metric-conversion appendices. The total includes two preliminary pages: an added cover and a combined contents page, plus all blank pages within the manuals.

Engine Overhaul, Chassis Service and Electrical Fault Tracing

These selected contents outline the repair coverage rather than reproduce the full contents list; further topics include FXDXT saddlebag service and windshield/fairing disassembly.

• Engine repair: Step-by-step removal, installation, top-end and bottom-end overhaul procedures, compression testing, lubrication diagnosis, and camshaft and bearing service.

• Chassis and brakes: Master-cylinder and caliper overhaul, brake bleeding, wheel-bearing replacement, wheel lacing and truing, steering-head service, and model-specific suspension work.

• Fuel system: C.V. carburetor repair and adjustment, fuel-supply-valve testing, fuel-tank service, and California evaporative-emissions coverage.

• Drive and transmission: Clutch-pack inspection, primary-drive and compensator service, drive-belt replacement, and internal transmission disassembly, inspection and reassembly.

• Electrical diagnostics: Starter and charging tests, speedometer/tachometer diagnosis, ignition fault tracing, and TSM/TSSM diagnostic trouble-code charts.

• Wiring and connectors: Domestic and international diagrams distinguish FXDWG from the other Dyna models, with connector views, terminal repair and harness diagnosis.

This material suits technicians familiar with mechanical overhaul and electrical testing; internal repairs and circuit diagnosis call for the specified specialty tools and test equipment.

Engine Internals and Lubrication

The 88 cu. in. (1450 cc), 45-degree air-cooled V-twin coverage traces oil flow and breather operation alongside twin-gerotor dry-sump oil-pump service. Cylinder heads, cylinders, pistons, pushrods and lifters have inspection procedures and service wear limits.

Cam support plate, cam-chain and oil-pump alignment procedures identify the HD-42313 tensioner unloader and HD-43644 camshaft/camshaft bearing remover/installer. Illustrations include Engine Oil Flow - Bottom End and Cam Support Plate Torque Sequence.

Flywheel/connecting-rod limit: These components are replaced together as one assembly; the manual directs the assembly to the factory for service or replacement.

Head-bolt retightening can damage the engine, and releasing a retracted cam-chain tensioner with the chains and sprockets removed can stretch its spring or crack the shoe.

Suspension, Wheels and Brake Variants

FXDX and FXDXT use dual front calipers and 39 mm cartridge-valve forks with spring-preload, rebound and compression adjustments; their rear shocks have rebound and preload adjustments. Other Dyna versions have different fork and rear-shock procedures.

Master-cylinder compatibility: Dual-disc systems use an 11/16 in. bore; single-disc systems use a 9/16 in. bore. The assemblies and repair-kit parts are not interchangeable. The procedures also flag possible damage to the front stoplight-switch boot and plunger if the protective insert is omitted.

Wheel-bearing end play, brake-pad wear, disc runout, spoke torque, cast-wheel runout, tire pressures and steering-head fall-away are specified. Wheel and brake procedures identify the HD-44060 wheel bearing installer/remover and HD-43293-A brake caliper piston remover.

FXDWG-specific instructions address fork oil, front axle hardware, headlamp adjustment and throttle-cable routing.

Carburetor and Fuel-Supply Diagnosis

C.V. carburetor coverage includes vacuum-piston diagnosis, accelerator-pump and enrichener work. The vacuum-operated fuel-supply valve has its own troubleshooting table and vacuum test. Air-cleaner and exhaust service accompany the fuel-tank procedures; Schematic-CA Evaporative Emissions Control System explains the California layout.

Primary Drive and Transmission Detail

The wet multi-disc clutch and five-speed constant-mesh transmission sections extend to mainshaft, countershaft, shifter-cam and fork work. Shaft-service procedures leave the transmission case in the frame unless the case itself needs replacement. Belt adjustment specifies the HD-35381 belt tension gauge.

Torque data covers axle nuts, the compensating sprocket and left-hand-thread clutch hub nut. Primary-chaincase cover sequences and brake, transmission, engine, fork and handlebar fasteners have component-specific values.

Starting, Charging and Control-System Diagnostics

Starter/solenoid repair is supported by on-motorcycle and bench tests. Charging-system charts help distinguish battery, regulator, stator, wiring and accessory-load faults before components are replaced.

Engine Management and TSM/TSSM: Check-engine-lamp diagnostics, Scanalyzer procedures and wiggle tests accompany ignition, security and bank-angle diagnosis. The HD-42682 Breakout Box, used with a DVOM, provides circuit access without probing connectors with sharp objects.

Diagram examples include Simplified TSM/TSSM Wiring, Tachometer Circuit Diagram and 2003 All Dyna DOM. and INT. Models (Except FXDWG), Main Harness. Connector service covers AMP Multilock, Deutsch, Mini-Deutsch, Packard and sealed butt splices.

Fuel, brake, battery, starter and primary-drive work carries specific gasoline, silicone brake-fluid and electrical-isolation warnings; those factory safety notes should be followed whenever the corresponding repair is performed.

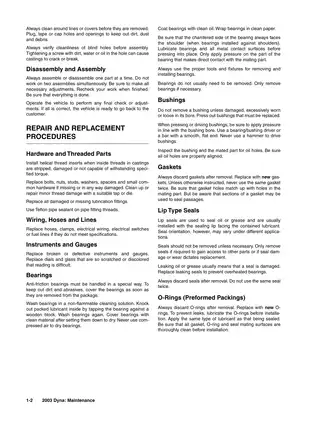

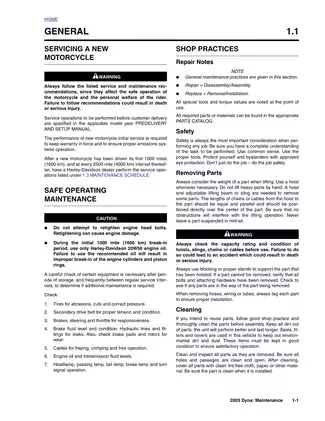

Preview: Oil Pressure, Clutch Free Play and Float Level

Oil-pressure testing specifies 30–38 PSI at 2000 RPM with engine oil at 230°F (110°C). Clutch adjustment specifies 1/16–1/8 in. (1.6–3.2 mm) free play between the cable ferrule and lever bracket after internal adjustment, with the motorcycle at room temperature.

The C.V. carburetor float-level specification is 0.413–0.453 in. (10.49–11.51 mm), measured from the O-ring flange face to the float perimeter with the carburetor tilted 15–20 degrees from its manifold-side base.
