1999–2005 Harley-Davidson Dyna FXD Service Manual (P/N M425-3)
595 Pages • 1 Printable PDF (English) • Download

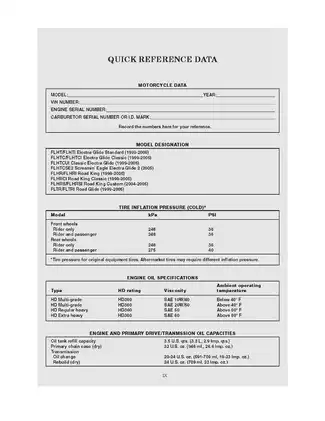

Harley-Davidson Models Covered & Key Technical Specifications
Models: Dyna Convertable, Dyna Super Glide, Dyna Super Glide Sport, Dyna Low Rider, Dyna Wide Glide, Dyna Glide T-Sport, Dyna Defender, Dyna Super Glide Custom
Models & Model Codes:
Dyna Convertable — FXDS-CONV
Dyna Super Glide — FXD, FXDI
Dyna Super Glide Sport — FXDX, FXDXI
Dyna Low Rider — FXDL, FXDLI
Dyna Wide Glide — FXDWG, FXDWGI
Dyna Glide T-Sport — FXDXT
Dyna Defender — FXDP
Dyna Super Glide Custom — FXDC, FXDCI
Model Years: 1999–2005 (1999, 2000, 2001, 2002, 2003, 2004, 2005)
-
Battery capacity: 12 volts, 19 amp hour
-
Primary resistance (ignition coil): 0.5–0.7 ohms (three-terminal coil)
-
Secondary resistance (ignition coil): 5500–7500 ohms (three-terminal coil)
-
Alternator AC output: 16–20 VAC per 1000 rpm (two-terminal stator test)
-
Primary chain free play (cold engine): 5/8–7/8 in. (16–22 mm)
-
Primary chain free play (hot engine): 3/8–5/8 in. (10–16 mm)
-
Starter motor brush length (minimum): 0.433 in. (11.0 mm)
-
Starter motor commutator diameter (minimum): 1.141 in. (28.981 mm)
Harley-Davidson Manual Features & Selected Content Preview

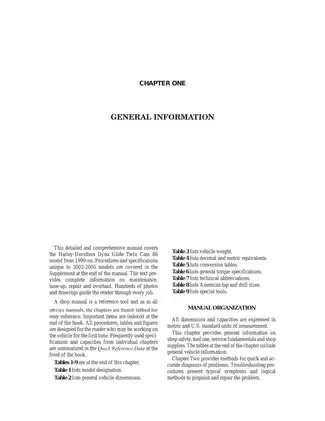

This independently published Clymer service and repair manual (P/N M425-3) covers the 1999–2005 Harley-Davidson Dyna FXD family with the Twin Cam 88 engine. Models include the Convertible, Super Glide, Super Glide Sport, Low Rider, Wide Glide, T-Sport, and Defender. The supplement covers fuel-injected variants from 2004 and adds the FXDC and FXDCI Super Glide Custom for 2005.
PDF Search, Bookmarks, and Wiring Diagrams
Search and navigation: The repair chapters, supplement, index, and wiring diagrams have searchable text. The three front reference pages are excluded from text search. Embedded bookmarks jump to the chapters, supplement, index, and wiring section. Zoom in to read small pin numbers, connector labels, and wire-color codes in dense diagrams.

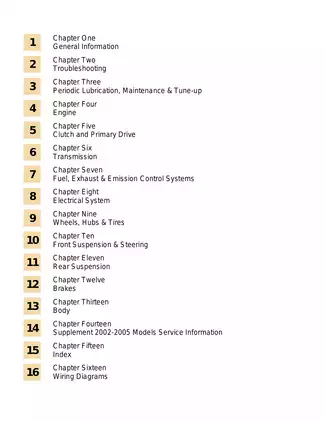

The download contains one printable English PDF with 595 pages, including the cover, contents page, and three front reference pages. Those three pages contain Touring-model data. Dyna-specific specifications are in the service chapters and supplement. The total also includes the 63-page supplement, 7-page index, and 20-page wiring section.
Twin Cam Overhaul, Drivetrain Service, and Electrical Diagnosis
These are selected service topics. The manual also covers seat, windshield and fairing, and saddlebag removal on applicable models.
-
Maintenance and tune-up: Periodic lubrication, fluid and filter service, drive-belt inspection and adjustment, spark plug checks, and carbureted idle adjustment.
-
Twin Cam 88 overhaul: Engine removal and installation, in-frame top-end work, valve and piston inspection, hydraulic lifters, oil pump, cam-chain tensioners, crankcase disassembly, crankshaft bearings, and break-in.
-
Clutch and five-speed transmission: Clutch plates, compensating sprocket, primary-chain alignment, chaincase housings, starter jackshaft, shifter adjustment, shift cam and forks, transmission shafts, main drive gear, bearings, and case removal.
-
Carburetion and fuel injection: Carburetor disassembly, inspection, and float adjustment, plus intake, exhaust, fuel tank, shutoff valve, California EVAP, and sequential-port EFI service.
-
Electrical testing: Battery, alternator, regulator, ignition, starter, and lighting checks, with voltage-drop and starter current-draw tests, trouble-code tables, and TSM/TSSM security-system coverage.
-
Wheels, steering, and suspension: Laced and cast wheels, hubs, vehicle alignment, conventional and FXDX/FXDXT cartridge forks, steering-head bearings, shocks, and swingarm service.
-
Hydraulic brakes: Front and rear calipers, pads, master cylinders, lines, discs, and bleeding, with separate procedures for the 1999 and 2000-on brake designs.
The step-by-step procedures, photos, and drawings suit experienced DIY owners and independent technicians, including readers new to the Dyna platform who have the measuring and electrical test equipment for the work. The manual identifies operations that require specialist equipment or dealer support.
Model-Year Changes and EFI Service Limits
The main chapters contain the base procedures. The 2002–2005 supplement identifies changes such as the 2003 one-piece breather, the integral shift-arm arrangement from 2003, and the 2005 valve and clutch inspection cover revisions.
For fuel-injected models from 2004, the supplement explains the induction module, injectors, ECM inputs, sensors, and fuel-system depressurization. It covers service of the in-tank pump, filter, regulator, and inlet strainer. Full EFI service requires the Harley-Davidson Digital Technician and other specialty tools. The manual directs EFI idle-speed adjustment to a Harley-Davidson dealership.
Wiring Layouts, Special Tools, and Reference Tables
The wiring section (PDF pp. 576–595) includes ten layouts. It separates the 1999–2000 and 2001–2003 circuits, shows the 2001–2004 FXDP Defender wiring, and provides distinct 2004–2005 EFI and carbureted diagrams for Wide Glide and other models. A separate speedometer and tachometer schematic is included. The model-specific diagrams let you trace the applicable connectors and wire colors before testing a circuit.

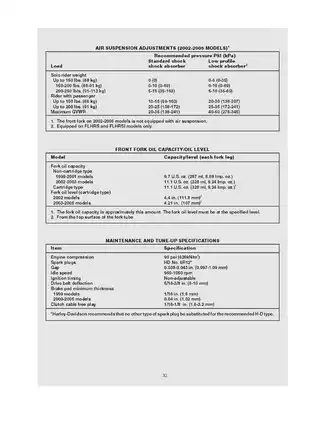

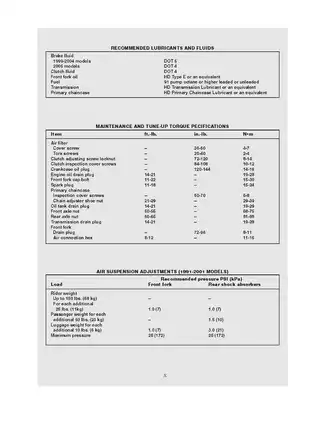

Illustrations show the starter-solenoid voltage-drop test, early and later 1999 camshaft and cover assemblies, transmission-case bearings and covers, the EFI induction module, and the fuel pump and filter assembly. Tool tables identify items such as the JIMS 1022 engine stand, JIMS 1283 cam-chain tensioner tool, H-D 39618 transmission pawl adjuster, and Motion Pro 08-0121 fork oil-level gauge. The service chapters include torque, fluid capacity, clearance, wear-limit, shim, and spacer tables.
