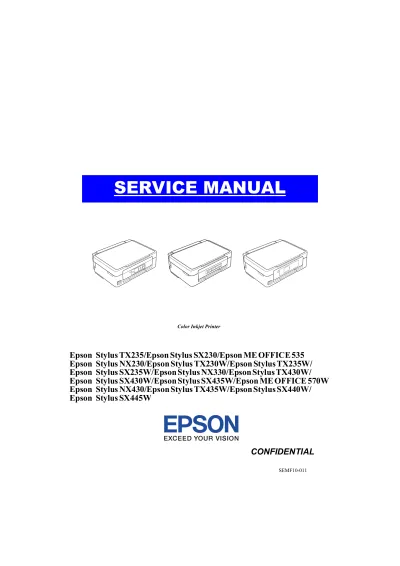

2011 Epson Stylus SX230/SX235W/SX430W/SX440W Printer Service Manual (P/N SEMF10-011)

This Epson service manual covers the 2011 Stylus SX230, SX235W, SX430W, and SX440W series, including the corresponding TX, NX, and ME OFFICE models listed above. Publication SEMF10-011, Revision B, was issued by Seiko Epson Corporation in June 2011.

• Fault diagnosis: Power-on sequences, printer and scanner fatal-error tables, and troubleshooting for paper feeding, poor printing, ink-system errors, and scanner faults.

• Printhead and electronics: Removal and reassembly procedures for the Printhead, Main Board, PS Unit, and variant-specific control panels.

• Paper transport and scanning: CR and PF motor service, LD Roller Assy removal, CIS Module access, platen-gap checks, and belt-tension checks.

• Post-repair adjustments: EEPROM data copy, head ID input, initial ink charge, maintenance-counter resets, print alignment, and CR/PF/scanner motor heat-protection control.

• Repair illustrations: Five disassembly flowcharts, a connector diagram, FFC routing drawings, adjustment printout patterns, and scanner lubrication cross-sections.

• Maintenance and refurbishment: Waste Ink Pad Assy replacement, cleaning guidance, component-specific lubrication, ink discharge, and protection for transportation.

Written for repair service personnel, this manual specifies Epson certified repair technicians with basic electrical safety knowledge.

Printer and Scanner Fault Diagnosis

The Troubleshooting Workflow connects reported symptoms to checks and suspect assemblies. Fatal-error tables distinguish carriage and paper-feed drive faults, printhead temperature errors, and scanner home-position or LED faults.

Panel differences: Printer fatal codes can be displayed on the LCD-equipped SX230, SX430W, and SX440W series. The SX235W series has no LCD and requires the Adjustment Program to read them.

Disassembly and Electrical Connections

Disassembly charts identify housings, carriage units, and logic boards, with screw types, torque specifications, and adjustment references. The Disassembly Flowchart (Printhead/Main Board) provides a focused route to these assemblies.

The Connector Diagram maps Main Board connections and distinguishes panel, Wi-Fi, and card-slot configurations. FFC routing drawings identify cable paths and connector locations.

The printhead-removal cautions explain how an incorrect carriage position can deform the Main Frame and affect print quality. The PF Scale and EJ Roller Gear are identified as parts that deform during removal and must not be reused.

Standard Operation Time tables separate replacement work from adjustment and inspection, using an SX430W-series prototype as the baseline; times for other models can differ.

Observe the manual's electrical-isolation precautions and Main Board capacitor-discharge warning before internal service.

Adjustments After Parts Replacement

The Required Adjustment List links each removed or replaced part to its required checks and calibrations, helping technicians plan the work that remains after reassembly. Printout patterns support top-margin, head-angle, bidirectional, PF, and PF-band adjustments.

Main Board replacement requirements differ depending on whether EEPROM data can be recovered. If it cannot, the manual specifies replacement of the Waste Ink Pad Assy and Paper Guide Lower Porous Pad, along with initialization and additional adjustments.

Software requirements: The Adjustment Program is separate software and is not included in this PDF. The documented environment is Windows XP or Vista over USB; detailed program operation and refurbishment jig setup also rely on the program's own guide.

Mechanical checks: The platen gap has no adjustment mechanism. Position of the Thickness Gauge illustrations show inspection locations, while belt checks use a sonic tension meter, listed as Epson tool 1294120.

Lubrication and Refurbishment

The maintenance chapter identifies G-45, G-71, and G-74 grease applications and records whether service parts arrive lubricated. Lubrication of the Scanner Carriage includes section views showing the intended contact areas.

Ink discharge uses the refurbishment Adjustment Program and Ink Supply Jig 20MJ05245-A101. It preserves adjustment settings while clearing network and operating information. Transportation instructions cover securing the carriage and paper support.

Examples of Printhead Torque and Roller Lubrication

These examples are a small selection of the manual's fastener and lubrication specifications. The Printhead mounting screws have a specified tightening torque of 3 ± 1 kgf·cm.

For the LD Roller Assy, the manual specifies G-71 grease around the circumference of each cam at 0.05 g per cam. The two cams contact the Hopper and Paper Back Lever.

Searchable PDF with Chapter Bookmarks

Search and diagram detail: Searchable text and embedded bookmarks cover all six chapters and their main subsections. Small connector labels are readable when enlarged; text inside the Adjustment Program screenshots is not searchable.

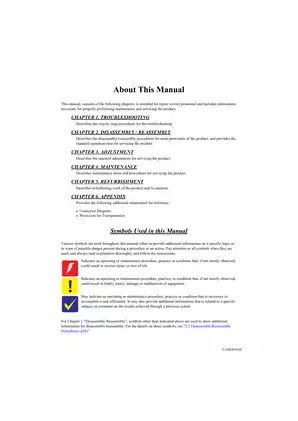

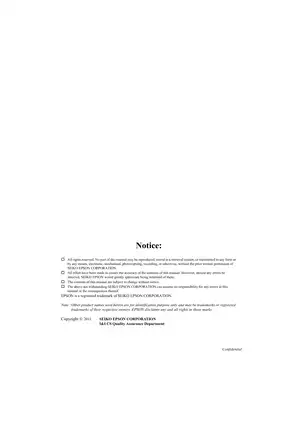

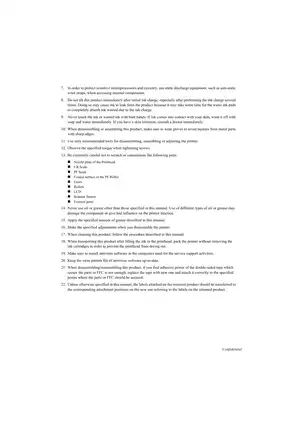

Supplied as one printable, English-language PDF download with 63 pages total. This includes eight opening pages containing the cover, notices, safety information, manual overview, revision history, and contents, plus 55 pages covering the six chapters, including their divider pages and appendix.
