Suzuki GSX-R750W Service Manual | 1993–1995 WP, WR & WS (P/N 99500-37073-03E)
352 Pages • 1 Printable PDF (English) • Download
Suzuki Models Covered & Key Technical Specifications
Models: GSX-R750W
Model Years: 1993–1995 (1993, 1994, 1995)
Sub-models / Variants: GSX-R750WP, GSX-R750WR, GSX-R750WS. U.S.A. except California (E-03), California, U.S.A. (E-33).
Additional market codes in the WR and WS specifications: General (E-01), France (E-04), Switzerland (E-18), Austria (E-39). Other listed codes: E-02, E-15, E-16, E-17, E-21, E-22, E-24, E-25, E-28, E-34, E-53.
-
Engine: Four-stroke, water-cooled, DOHC, TSCC, 4-cylinder
-
Displacement: 749 cc (45.7 cu. in.)
-
Transmission: 6-speed constant mesh
-
Drive System: Chain drive (108 links)
-
Fuel Capacity: 21.0 L (5.5 US gal) for E-03 and other listed non-California models, 18.5 L (4.9 US gal) for E-33 California model
-
Engine Oil Capacity: 3.0 L (3.2 US qt) change; 3.3 L (3.5 US qt) with filter; 3.9 L (4.1 US qt) overhaul
-
Cooling System Capacity: 2550 ml (2.7 US qt)
Suzuki Manual Features & Selected Content Preview
Suzuki Motor Corporation’s third-edition GSX-R750W factory service manual (P/N 99500-37073-03E) covers the 1993–1995 GSX-R750WP, GSX-R750WR, and GSX-R750WS. The WP chapters provide the base procedures. The WR and WS chapters document model-specific changes and refer back to earlier sections for unchanged work.
PDF Navigation and Wiring Legibility

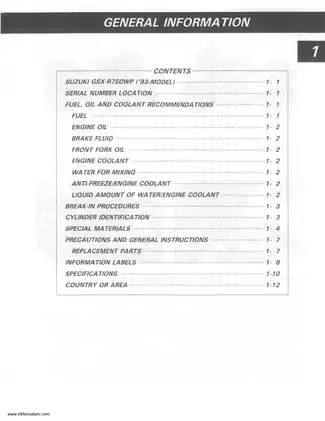

Finding procedures and reading diagrams: Use the printed group index and chapter contents to find procedures. Manual text search is unavailable, and the PDF has no embedded bookmarks. Small connector labels and wire-color codes require zooming. Some labels and lines in the base wiring diagram remain faint when enlarged.

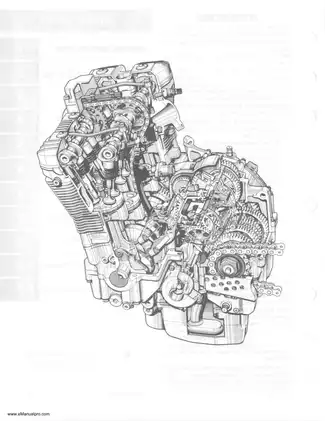

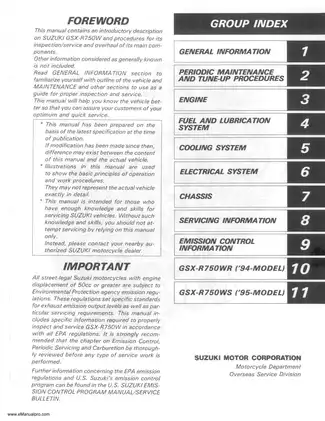

The download is one printable 352-page PDF in English. It includes 279 pages of main chapters, 44 pages of WR updates, and 15 pages of WS updates. The total also includes the cover, foreword and group index, engine illustration, publication page, and ten blank divider and end pages.
Engine Overhaul, Chassis Service, and Electrical Tests
These are selected workshop topics. The manual also includes steering damper service and a special-tool reference.
- Engine repair: Engine removal, cylinder-head and valve service, crankshaft inspection, bearing selection, and camshaft installation.
- Clutch and transmission: Wet-clutch disassembly, gearbox overhaul, gearshift-fork inspection, and starter-clutch service.
- Carburetors and emissions: Mikuni BST disassembly, float-height adjustment, carburetor synchronization, and California evaporative-emission and PAIR diagrams.
- Cooling and lubrication: Radiator removal, thermostat and fan-switch testing, water-pump overhaul, and oil-pressure checks.
- Chassis service: Inverted front-fork overhaul, brake caliper and master-cylinder service, steering bearings, and rear suspension linkage inspection.
- Electrical diagnosis: Charging and ignition tests, starter-motor service, side-stand interlock checks, wiring diagrams, and troubleshooting charts organized by symptom.
Suzuki wrote this manual for technicians who already have the knowledge and skills to service Suzuki vehicles.
Engine Inspection and Reassembly
Periodic maintenance charts accompany procedures for checking compression and oil pressure. Tappet shim and crankshaft bearing selection tables support valve adjustment and bottom-end repair. The engine section also gives piston-to-cylinder clearances, wear limits, and staged tightening specifications.
Exploded views identify cylinder-head, clutch, and transmission components. Camshaft end notches, sprocket arrows, and crankshaft marks provide timing references during reassembly. Suzuki warns that uneven journal-holder tightening can damage the head or holder thrust surfaces and that lapping compound can spoil the final valve-seat finish.
Mikuni Carburetors and California Emissions
The WP specifications list BST38SS carburetors for E-03 and BST36SS carburetors for E-33. The WR and WS tables also identify BST36 carburetors for E-18 and E-39. Carburetor identification and setting tables help technicians match the installed unit to the correct service data before selecting jets or diagnosing an idle problem.
California diagrams show vacuum, canister, and PAIR hose routing. The emissions chapter identifies close-tolerance jets and factory-sealed pilot screws. The WS chapter explains how to remove the pilot screw and restore its original setting.
Cooling and Electrical Fault Finding
Water-pump illustrations show mechanical-seal orientation and the connection to the oil-pump drive. The cooling-system troubleshooting chart distinguishes thermostat, fan, circulation, and trapped-air faults.
Charging-system procedures cover the three-phase generator, including the stator, rotor, rectifier, and built-in IC regulator. The side-stand interlock diagrams and starter-relay tests help isolate a starting fault before parts are replaced.
Chassis Service and Model Updates
The WR chapter updates starter-clutch and front-brake procedures, fork service data, swingarm-pivot adjustment, suspension settings, and drive-chain joining. It includes revised wiring and routing drawings and identifies swingarm-pivot socket 09940-14970 and drive-chain cutting and joining tool 09922-22710. The WS chapter shows the change from pin-mounted to bolt-mounted windscreen attachment.
Rear shock scope: The manual covers swingarm and linkage-bearing service. Rear shock service is limited to removal, inspection, and replacement of the assembly. The brake procedures include safety precautions and final checks.
A Preview of Tappet and Thermostat Test Data
For the WP, WR, and WS engines, Suzuki specifies cold tappet clearances of 0.10–0.20 mm at the intake valves and 0.20–0.30 mm at the exhaust valves.
For the thermostat bench test, the valve should begin opening at 74.5–78.5°C. The specified valve lift is over 7.0 mm at 90°C.
