JCB 506-36, 507-42, 509-42 & 510-56 Telehandler Service Manual, 2004–2012 (P/N 9803/3740-06)
1,206 Pages • ZIP Download: 12 Printable PDFs • 48.40 MB
JCB Models Covered & Key Technical Specifications
Models: 506-36, 507-42, 509-42, 510-56
Models & Model Codes:
506-36 — 5CD; JCB Dieselmax SD (63 kW) or SF (74 kW)
507-42 — 5CE; JCB Dieselmax SD (63 kW) or SF (74 kW)
509-42 — 5CF; JCB Dieselmax SF (74 kW)
510-56 — 5CG; JCB Dieselmax SF (85 kW)
Sub-models / Variants: PS750 Gearbox MKIII and PS750 MkIV Powershift transmissions; both variants are covered for all four models.
PIN engine identifiers (position 7): T = SD, 63 kW, turbocharged; S = SF, 74 kW, turbocharged and intercooled; P = SF, 85 kW, turbocharged and intercooled.
PIN transmission identifier (position 8): G = 4-speed PS750 transmission.
Model Years: 2004–2012 (2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012)
-
Main hydraulic pump output: 110 L/min
-
Engine cooling system capacity: 20 L (5.3 US gal)
-
ROPS/FOPS mounting torque: 205 Nm
-
Wheel nut tightening torque: 680 Nm (front and rear)
JCB Manual Features & Selected Content Preview
JCB factory service manual for the 2004–2012 JCB 506-36, 507-42, 509-42, and 510-56 Loadall telescopic handlers, publication 9803/3740-06. It covers scheduled maintenance, system diagnosis, component removal and installation, and selected repair procedures.
PDF Search, Navigation, and File Contents
Finding procedures and diagram details: The PDFs contain searchable text, although many labels within wiring diagrams and harness drawings are not searchable. Each file has two generic bookmarks rather than a detailed topic outline. Small schematic labels require enlargement for comfortable reading.

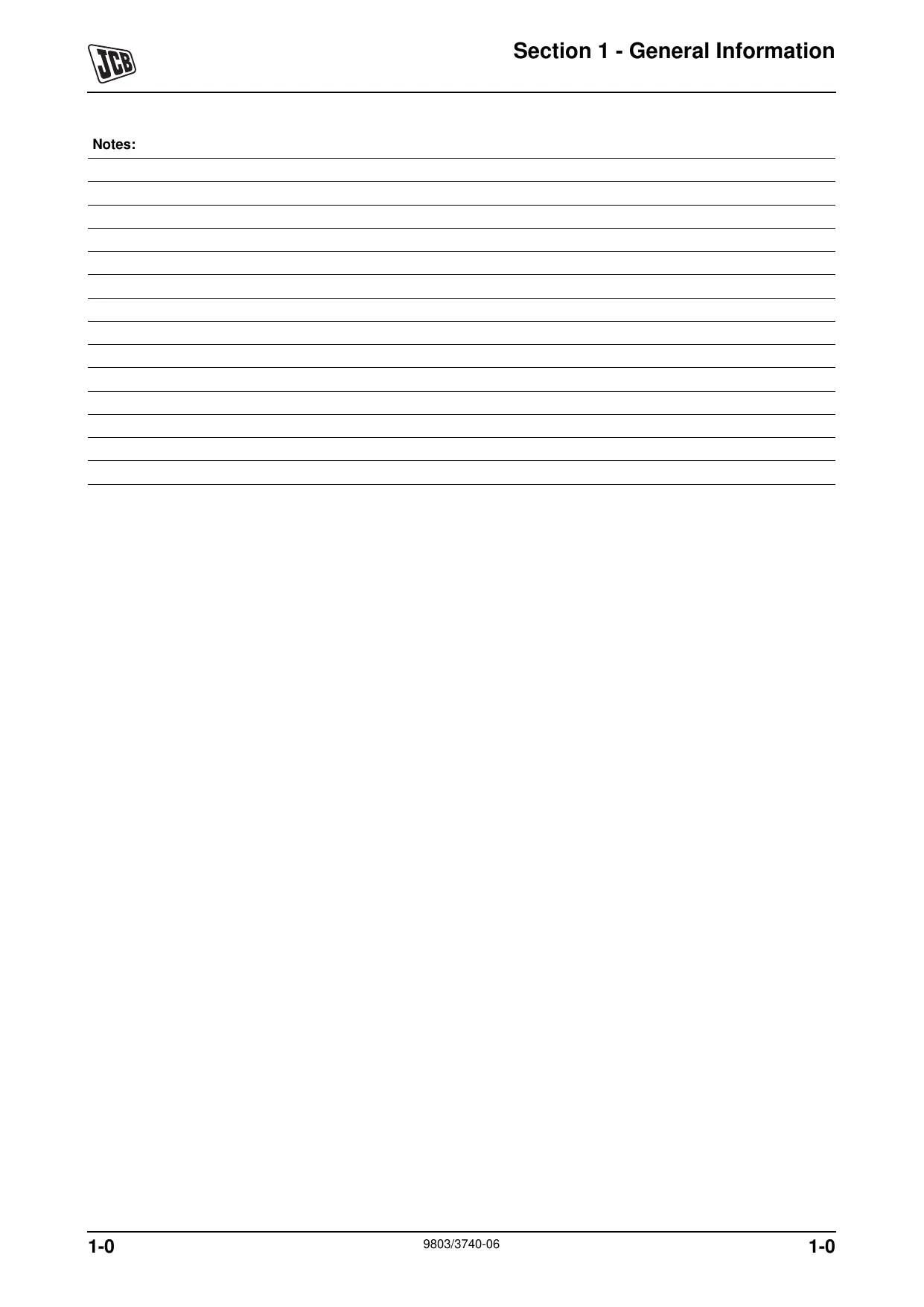

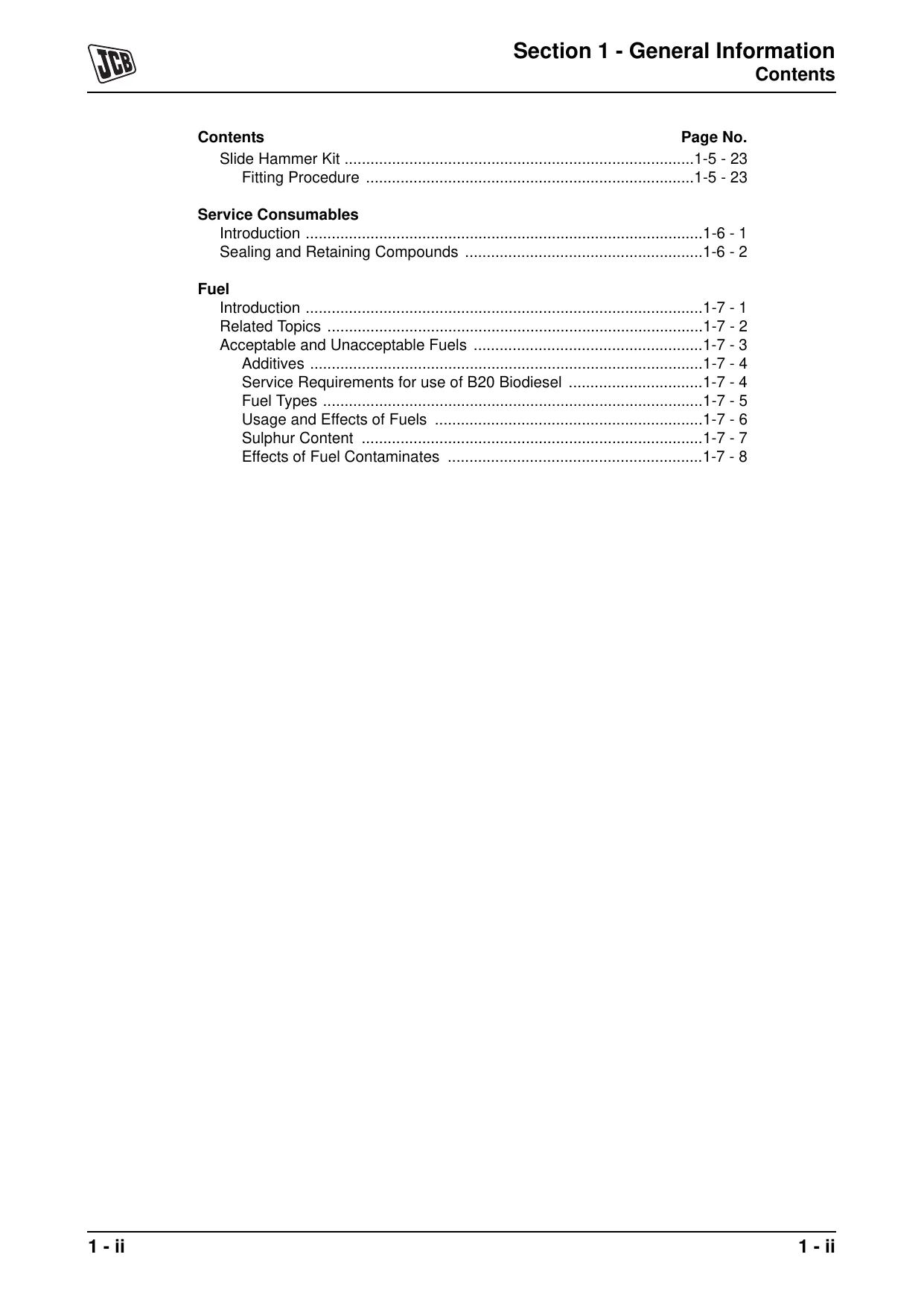

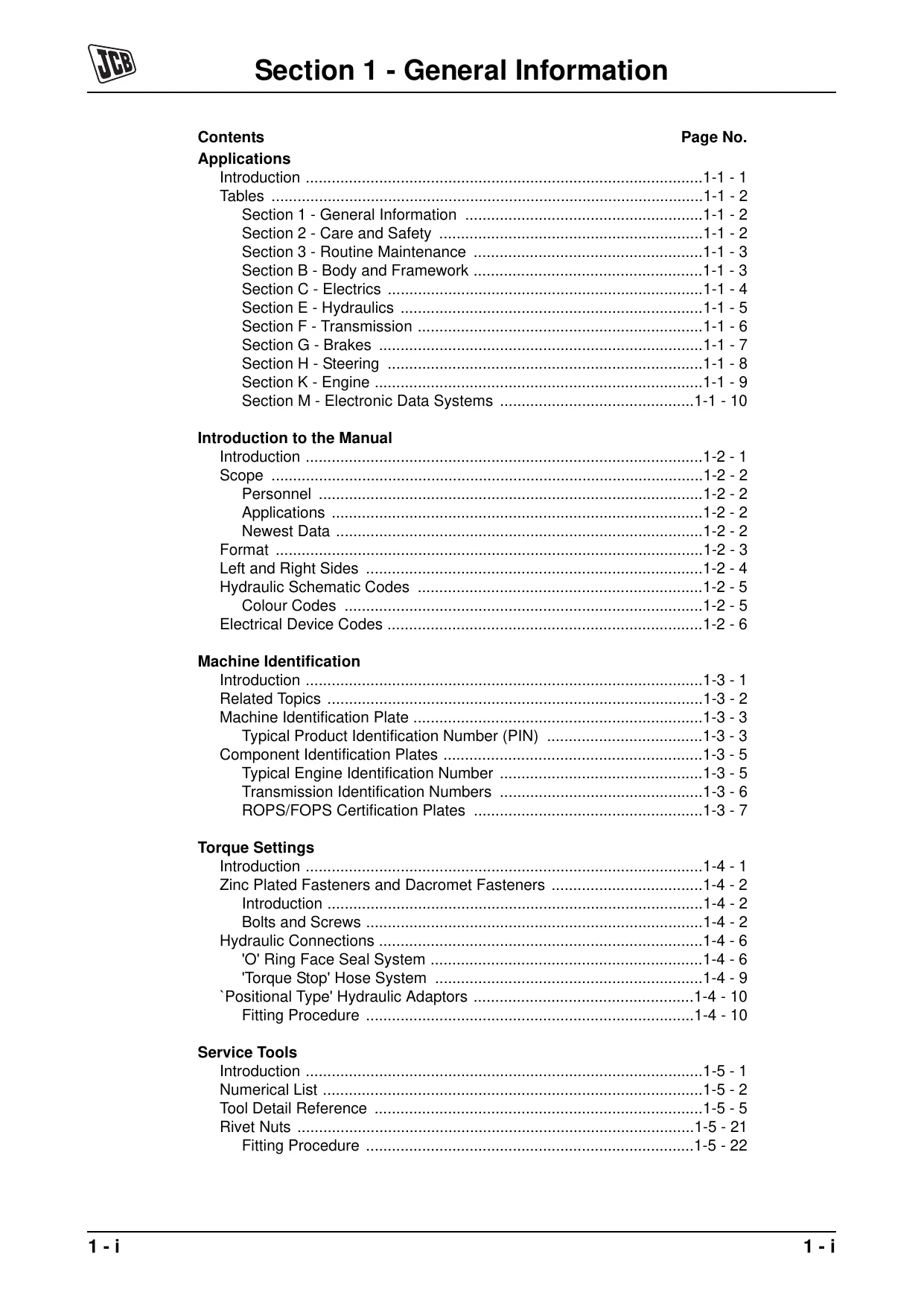

The ZIP contains 12 printable PDFs totaling 1,206 pages: a cover file and eleven section files from one service manual. The total includes 12 cover or section-title pages, 12 Notes pages, and 54 intentionally blank pages.
Boom, Hydraulic, and Drivetrain Service Coverage
Selected coverage: The topics below preview the manual rather than reproduce its complete contents. Additional sections address cab glazing, air-conditioning diagnosis, and refrigerant-system service.
- Boom and framework: Wear-pad inspection and shimming, chain adjustment and replacement, pivot clearances, and ROPS/FOPS inspection.
- Hydraulic systems: Pump-section flow tests, load-sensing control valves, service-circuit fault finding, and hydraulic-ram disassembly and seal replacement.
- Transmission and axles: PS750 variant identification, torque-converter stall tests, clutch-pressure and leakage tests, and unit removal and installation.
- Electrical diagnosis: Model-specific wiring diagrams, harness connector references, charging-system tests, and wiring repair.
- Brakes and steering: Brake-system leak tests and bleeding, parking-brake caliper overhaul, steering pressure tests, and steering-unit disassembly and reassembly.
- Engine and electronic controls: Dieselmax engine removal, cooling-pack service, cold-start heater diagnosis, rear axle stabilization, and Loadall Monitoring System fault finding.
Written for JCB distributor service engineers receiving or having completed JCB technical training, the manual assumes workshop experience and familiarity with hydraulic machinery.
Boom Wear, Chains, and Hydraulic Faults
The boom chapters distinguish three-stage and four-stage assemblies, with wear-pad selection, shim arrangements, chain inspection, and replacement procedures. The “Boom Extend High Pressure” schematic supports the explanation of extension-system operation.
Pump-section flow tests and service-circuit fault tables help distinguish inadequate pump delivery from faults in valves or individual hydraulic functions. The control-valve coverage also distinguishes the auxiliary and sway arrangements from the additional stabilizer functions on the 510-56.
Chain cleaning has a specific limitation: chemical solvents and steam cleaning can remove lubricant from internal chain bearings and shorten chain life. Follow the manual’s hydraulic-pressure precautions and boom-maintenance-strut requirements when working beneath a raised boom.
Wiring, Interlocks, and Electronic Diagnosis
Separate electrical schematic groups cover the 506-36/507-42/509-42 and the 510-56. “Power Distribution – Fusebox A,” “Transmission Control,” “Rear Axle Stabilisation ECU Connectors,” and “CAN Bus” drawings accompany harness references and connector information.
Rear axle stabilization coverage includes fault codes, ECU inputs and outputs, ram leakage tests, and bleeding. Boom-interlock sections explain restricted functions and fault finding. The electronic-data chapters describe Loadall Monitoring System diagnostics and configuration, plus rear axle stabilization diagnostic screens; the download contains documentation, not diagnostic software.
Engine and Transmission Repair Boundaries
Dieselmax coverage includes engine removal and replacement, cooling-pack work, starter-motor service, and cold-start heater diagnosis. Internal engine repair is referred to the separate Dieselmax Engine Service Manual, publication 9806/3000.
Transmission sections cover pressure and flow testing, clutch leakage diagnosis, removal and installation, and selected external component repairs. Internal gearbox, axle, and bevel-box overhaul procedures are referred to the separate Transmissions Service Manual, publication 9803/8610. Neither referenced manual is included in this ZIP.
Brake Service and Workshop References
Brake coverage distinguishes single-axle and twin-axle systems and includes parking-brake pad, cable, and caliper work. The manual warns that incorrect brake fluid can damage seals and cause brake failure.
Reference material includes torque tables for metric grade 8.8 fasteners and high-tensile internal hexagon cap screws, BSP and SAE hydraulic connections, ROPS/FOPS mounting requirements, and service-tool illustrations, including rivet-nut installation tools.
Selected Boom Clearance and Chain-Wear Specifications
For the three-stage boom, the wear-pad table lists a maximum vertical gap of 3.0 mm (0.12 in) between the outer and intermediate sections.
The chain-wear table specifies a maximum length of 485 mm across 25 links for the 19 mm-pitch chains used on all covered machines. For the additional 25.4 mm-pitch chains fitted only to the 510-56, the corresponding limit is 648 mm. These measurements apply with the chain laid flat and held in tension.
