JCB 2CX/210S, 2CXU/210SU & 212SU Backhoe Loader Service Manual (Publication No. 9803/7130-07)

• Covers the JCB 2CX / 210S and 2CXU / 210SU naming pairs, with variant-specific references for the 212SU Utility, 2CXL Loader, 2CXS, and Airmaster. Identification data distinguishes 2WS/4WS steering and sideshift, center-mount, and loader builds; JCB 444 engine coverage starts at machine serial 960010.
• Details hydraulic pump, loader and excavator valves, Smooth Ride System, Hydraclamp, hose-burst-protection valves, and ram repair, including pressure/flow testing, fault isolation, removal, inspection, reassembly, and operating checks.
• Documents the SD55 axles, Synchro Shuttle gearbox, torque converter, optional PTO, oil-immersed multi-plate service brakes, parking brake, and hydrostatic steering, with drivetrain testing, brake bleeding and wear checks, steering-system bleeding, pressure testing, and wheel rephasing.
• Provides model- and build-specific electrical schematics, fuse/relay layouts, multimeter tests, charging and starting checks, wiring-harness repair, connector tables, and production harness drawings divided by serial break and dated design change.
• Supplied as an 892-page PDF set in 15 files under JCB master Publication No. 9803/7130-07, with maintenance schedules, approved fluids and capacities, torque tables, wear limits, electrical test data, troubleshooting charts, special-tool references, and factory repair coverage for the cab, A/C system, structural components, attachments, and Airmaster compressor.

Model and Build Coverage

This JCB factory service manual is for the compact 2CX-family machines documented in the publication, not the larger 3CX/4CX family. It uses European and North American model names side by side and separates standard backhoe, Utility, loader, and Airmaster configurations. VIN information identifies steering and chassis build codes, while the system chapters distinguish the hydraulic, wiring, steering, attachment, and maintenance arrangements that actually differ.

Production changes are tied to machine identity. Examples include the revised grille and combined oil-cooler arrangement from serial 942659, the later parking-brake switch from serial 955578, and JCB 444 engine material from serial 960010. Wiring drawings are divided further by early serial limits and by April 2005, April/September 2006, and November 2008 harness changes. This helps the technician select the correct schematic, connector table, switch test, or replacement harness.

Factory Repair and Diagnostic Content

Hydraulic coverage includes the three-spool loader valve, seven-spool excavator valve, main pump, SRS accumulator, HBPV system, Hydraclamp valve, oil cooler, and rams. Separate circuits are provided for the 2CX/210S backhoe, Airmaster/2CXL loader, and North American 210SU/212SU Utility arrangements. The sections combine operating descriptions and fault tables with component testing, pressure and flow checks, removal, dismantling, inspection, assembly, and final checks.

Transmission chapters cover fault isolation, clutch-pressure and flow diagnosis, stall testing, propshaft work, torque-converter handling, and gearbox/axle removal. Brake material addresses leakage testing, friction-plate wear, bleeding, the compensating master cylinder, parking-brake adjustment, switch setup, and caliper repair. Steering procedures cover all-wheel and selectable 2/4-wheel-steer systems, including the control unit, priority and anti-cavitation valves, mode valves, rams, bleeding, pressure testing, and road-wheel rephasing.

Body and attachment sections add cab and ROPS/FOPS inspection, cab removal, bonded-glass replacement, R134a A/C diagnosis and refrigerant service, fuel and hydraulic tank removal, stabilizer and extending-dipper wear-pad adjustment, boom/dipper work, overload and stabilizer-alarm systems, kingpost/carriage repair, Hydraulic Tool Circuit testing, three-point-hitch components, and Airmaster compressor troubleshooting and repair.

Engine and Drivetrain Scope Limits

Maintenance is split between AR/RE engine builds and JCB 444-equipped machines. Section K provides machine-installation data for AJ/AR 1000 Series and RE 1100 Series engines, but full internal engine repair is assigned to JCB Engine Service Manuals 9806/2140 and 9806/2250. JCB 444 internal work is referred to 9806/3000, and the engine removal/replacement page in this PDF set is marked TBA.

The same boundary applies to the drivetrain. This publication covers machine-level diagnosis, adjustment, removal, and installation, while full internal overhaul of SD55 axle subassemblies and the Synchro Shuttle gearbox is referred to JCB Transmissions Service Manual 9803/8610. Those separate engine and transmission publications are not included.

Schematics, Tools, and Repair Warnings

Representative diagrams include the 2CX basic-machine electrical schematic, 210SU/212SU Utility schematic, 2CX/210S hydraulic circuit, Airmaster/2CXL hydraulic circuit, all-wheel and selectable 2/4-wheel-steer schematics, and the JCB 444 cold-start grid-heater circuit. Production drawings add connector and destination tables, including cab/side-console drawing 721/12080 and engine/mainframe drawing 332/E9228.

Factory tool listings identify equipment such as hydraulic pressure-test kit 892/00253, flow-monitoring unit 892/00268, torque-converter alignment tool 892/00893, brake-wear indicator 892/01059, and steering seal-fitting tool 892/00180.

The manual warns that incorrect torque-converter location can damage the gearbox oil pump at startup. It also treats mechanical locking of the JCB 444 engine and injection pump as critical before pump removal, since losing the indexed relationship creates a re-timing problem requiring the dedicated engine publication.

Safety coverage addresses raised-loader-arm support, stored hydraulic pressure, accumulators and HBPVs, heavy components, brake work, electrical isolation, and A/C refrigerant handling.

PDF Page Breakdown

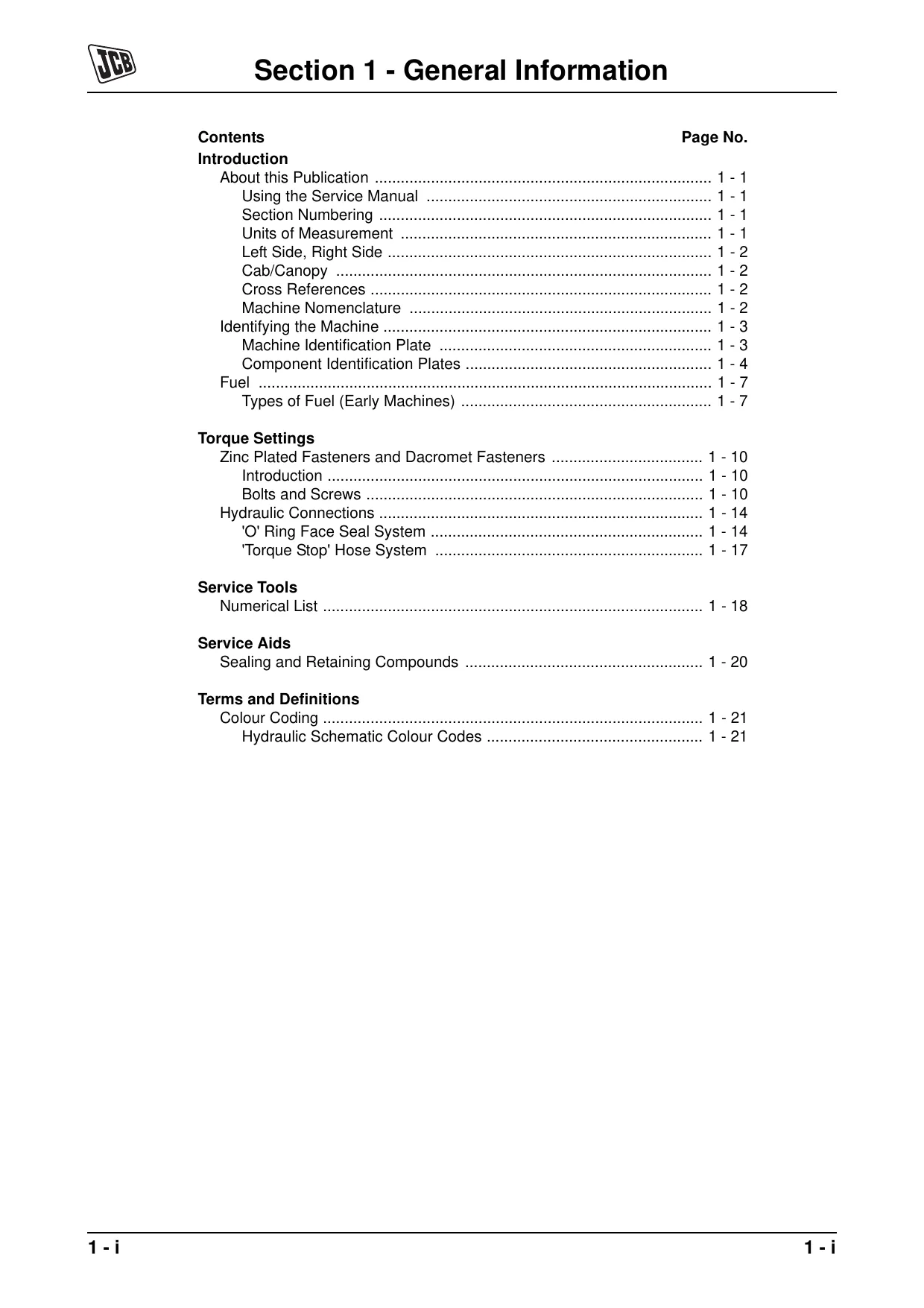

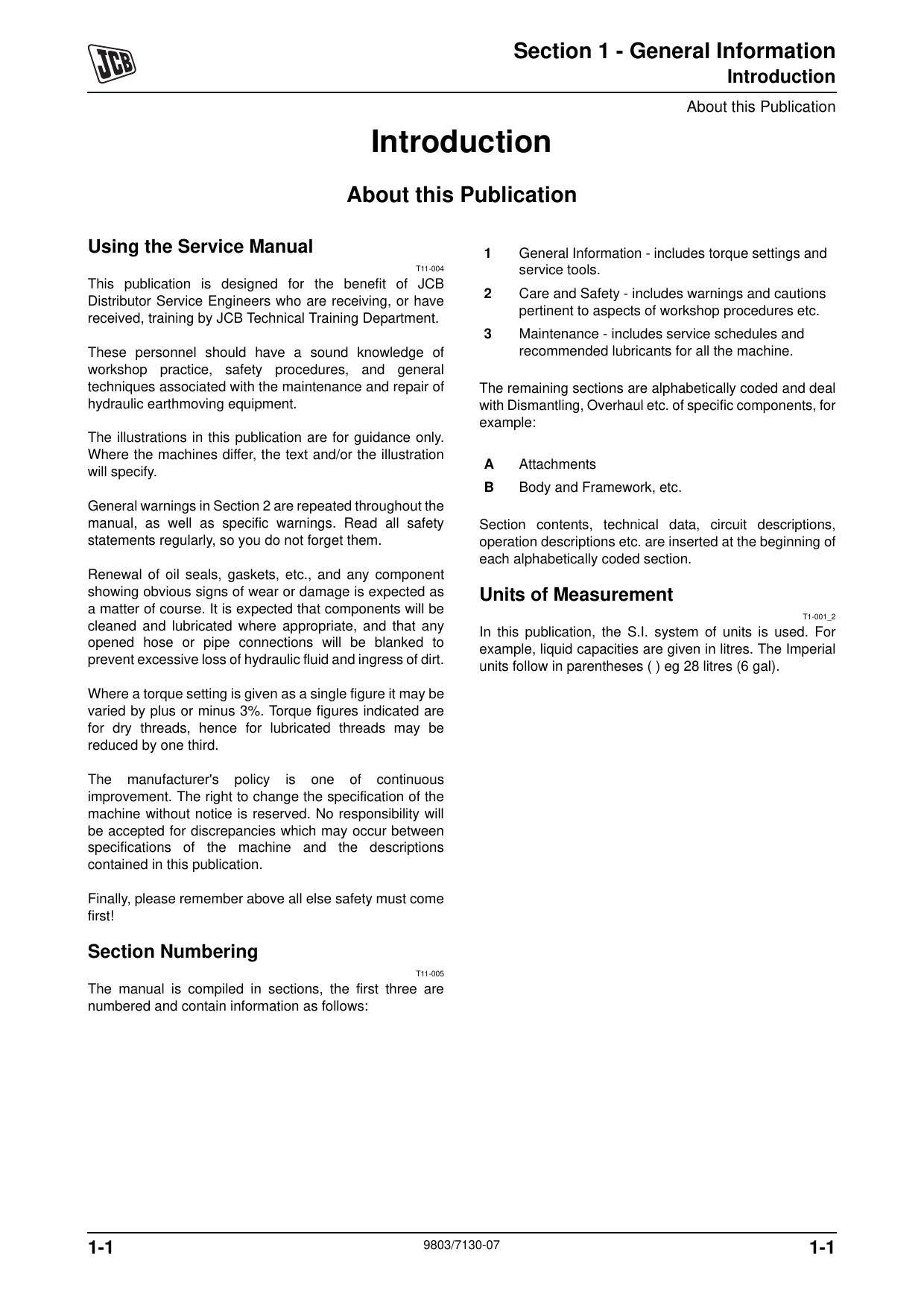

892 PDF pages total — cover/master file: 2 pages; General Information: 26; Care and Safety: 16; Maintenance 3A: 86; Maintenance 3B: 76; Attachments: 66; Body and Framework: 94; Electrics: 94; Controls: 10; Hydraulics: 122; Transmission: 82; Brakes: 36; Steering: 64; Engine: 10; JCB Engine Variant: 108.
