2001 JCB 2CX & Variants Backhoe Loader Service & Maintenance Handbook (P/N 9803/7130)

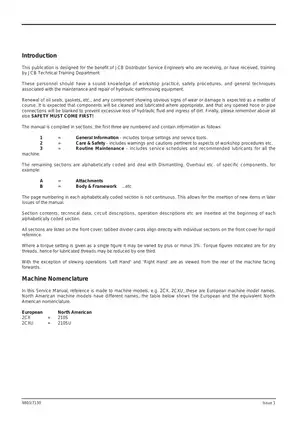

This 414-page PDF reproduces JCB Service Manual Publication No. 9803/7130, Issue 1, covering 2CX backhoe loaders and variants from machine number 930000 onward. JCB's nomenclature table identifies 2CX and 2CXU as the European names for the North American 210S and 210SU. The machine-ID guide also decodes 2WS/4WS steering and Sideshift, Centremount, and Loader build types. Written for trained JCB distributor service engineers, it assumes solid workshop practice and prior experience servicing hydraulic earthmoving equipment.

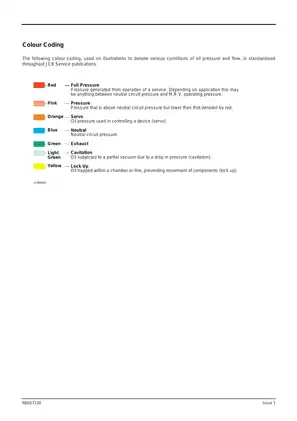

• Hydraulic system: Traces the main and optional auxiliary gear-pump circuits, loader and excavator valve blocks, main and auxiliary relief valves, Hydraclamp, ram end damping, and the Smooth Ride accumulator. Factory procedures cover flow and pressure testing, contamination control, pump and valve removal, valve dismantling, ram rebuilding and sealing, and accumulator charging or discharging.
• Syncro Shuttle transmission and SD55 axles: Includes hydraulic and mechanical fault finding, pressure and flow tests, torque-converter stall testing, solenoid-valve service, gearbox removal and internal repair, shaft end-float setup, reverser and optional PTO clutch work, axle removal, limited-slip differential repair, hub and driveshaft service, pinion-depth setting, collapsible-spacer setup, and crownwheel-to-pinion contact checks.
• Brakes and steering: Details the compensating master cylinder, oil-immersed rear service brakes, output-shaft parking brake, piston-seal leakage testing, adjustment, pad and caliper repair, and brake bleeding. The full-power hydrostatic steering section covers circuit diagnosis, initial bleeding, pressure testing, road-wheel realignment, steer rams, priority valve, and hydraulic steer unit repair.
• Hydraulic Tool Circuit and Airmaster attachment: Covers the HTC flow-diverter schematic, valve removal and overhaul, and flow and pressure tests. The optional Airmaster rotary-screw compressor material includes maintenance, fault finding, commissioning, oil separation, pressure regulation, suction-unloader service, and compressor-unit dismantling and assembly.
• Electrical and body systems: Provides fuse and relay data, battery tests, alternator charging and starter-circuit tests, harness repair, and alternator/starter removal. Body coverage includes R-134a air-conditioning diagnosis, pressure-switch and continuity checks, direct-glazed cab window replacement, ROPS/FOPS inspection, and stabilizer-leg removal.
• Maintenance and reference data: Supplies service schedules, lubrication points, fuel-system bleeding, transmission and axle oil service, hydraulic filter service, wheel alignment, approved fluids and capacities, general and component-specific torque data, wear and clearance limits, pressure and flow specifications, and a numerical service-tool directory.

Configuration-Specific Schematics

The drawing set is split by machine configuration rather than presented as one generic circuit. It includes separate 2CX and 212SU Utility electrical schematics, option circuits for the Cab Heater, Hand Held Hydraulic Tools, Hydraclamp, Airmaster Compressor, and Hammer, plus hydraulic system schematics titled for 2CX/210S, 2CX Airmaster, 2CX Farm Master, and 2CXU/212SU Utility. Syncro Shuttle tables distinguish standard 2CX/210S and 2CXU/210SU groups, low-emission 2CX/2CXL and 2CXU/212SU groups, multiple torque-converter types, Airmaster and Farm Master machines, and the 20-kph 2CX.

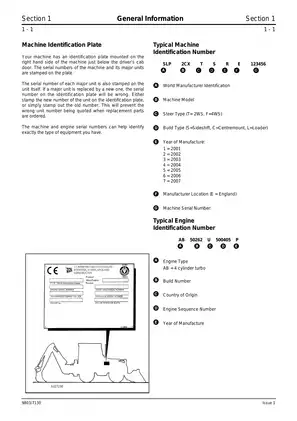

The North American naming needs careful matching: the introductory nomenclature table equates 2CXU with 210SU, while several circuit sheets use the 212SU Utility label. Use the machine identification plate, steer code, and build code to select the applicable schematic and procedure.

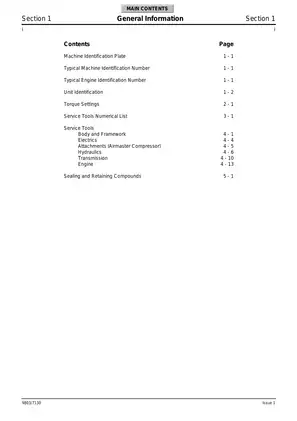

Factory Tools and Important Scope Limits

The manual identifies special tools by JCB number, including hydraulic pressure-test kit 892/00253, gearbox end-float setting tool 993/59400, axle solid-spacer setting kit 892/00918, and injection-pump timing pin 892/00956.

The dedicated Engine section is limited to service tools and technical data for the naturally aspirated 1004-40AJ build AJ50686, 1004-42AR build AR50696, and 1000 Series build AA50525. It does not contain a complete internal engine repair chapter; JCB directs the reader to separate Engine Service Manuals 9806/2140 and 9806/0100 for further engine work. Likewise, the air-conditioning chapter covers diagnosis and component service but expressly omits refrigerant charging and discharging procedures, which require specialist equipment and refrigeration training.

The excavator-valve spools are matched to their individual bores and must not be interchanged, even where they appear identical, or valve operation may be affected. On Airmaster-equipped machines, the compressor rotor must be restrained during bearing-screw tightening to avoid damage to the grooved seal diameter.

Before repair work, follow the manual's precautions for raised loader arms, stored hydraulic or accumulator pressure, vehicle support, battery isolation, brake work, and rotating components.
