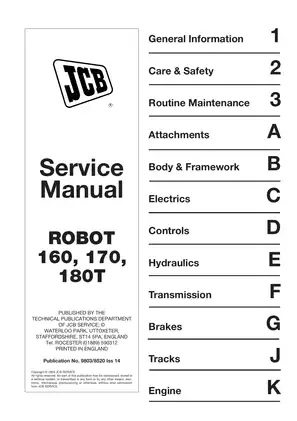

1998–2005 JCB Robot 160, 170, 180T Skid Steer Loader Service & Repair Manual (P/N 9803/8520)

JCB publication P/N 9803/8520, Issue 14 (copyright 2004) covers the 1998–2005 Robot 160, 170, and 180T, including standard and High-flow hydraulic configurations. This service manual covers wheeled and tracked machines with manual or servo transmission controls.

• Hydrostatic transmission: Pump removal, shaft-seal service, drive-motor disassembly, neutral adjustment, and transmission fault isolation.

• Loader hydraulics: Loader control valves, servo joysticks, self-leveling valves, auxiliary gear pumps, quickhitch and lift-cylinder service, and hydraulic bleeding.

• Electrical diagnosis: Alternator and starter-motor testing, wiring diagrams, harness identification, and connector details.

• Wheeled drive and brakes: Drive-chain replacement and adjustment, hub-bearing preload, parking-brake mechanisms, and safety restraint linkages.

• Tracked undercarriage: Track recoil units, idler wheels, guide rollers, track tensioning, and rubber-track damage assessment.

• Bodywork and engine service: ROPS/FOPS structures, loader-arm removal, direct-glazed window installation, engine removal and replacement, and fluid and filter maintenance.

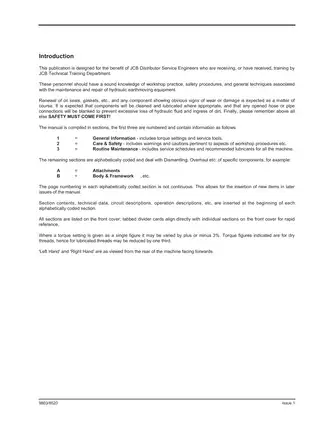

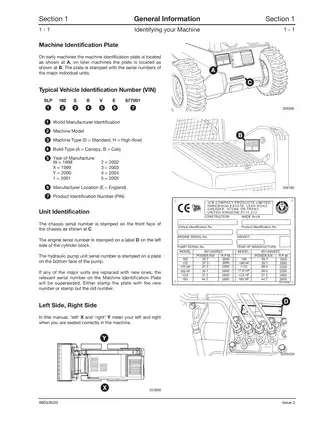

Written for JCB Distributor Service Engineers receiving or having completed JCB training, the manual assumes sound workshop practice and knowledge of hydraulic earthmoving equipment maintenance and repair.

Hydrostatic Pumps and High-flow Diagnosis

Hydrostatic fault charts and motor case-drain checks help distinguish a pump fault from a motor fault before major disassembly. Hydraulic circuit schematics separate standard and High-flow configurations, including charge pressure priority valve (CPPV) testing.

The transmission sections distinguish Series 40 manual pumps from Series 42 servo pumps. Full servo-pump rebuilding is outside this manual's scope and requires setup on a dynamic test jig; the shaft-service notes explain how disturbing internal alignment can make a complete rebuild necessary.

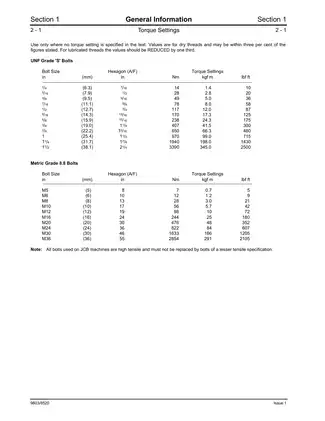

High-flow gear-pump work is limited to resealing a pump with satisfactory output, and the CPPV housing is treated as a replacement assembly. Hydraulic test equipment includes pressure test kit 892/00253 and flow monitoring unit 892/00268, with separate torque tables for fasteners, hoses, and adapters.

Electrical Circuits and 180T Power Management

Main wiring diagrams distinguish machines up to 681290 from those starting at 681291. Harness connector views support wire identification, while separate circuits cover optional air conditioning and the 180T parking brake.

For the 180T with servo transmission controls, the Power Management System sections cover warning-light fault tracing, alternator speed-signal checks, and ECU 4 calibration after replacement.

Drive Motors, Track Assemblies, and Cab Glass

Drive-motor sectional drawings support component identification, and the tracked-motor procedures include brake-pack inspection. Exploded idler-wheel views accompany recoil-unit service; the track section distinguishes repairable rubber damage from damage involving core bars or steel cords.

Direct-glazing procedures specify adhesives and primers for cab-window replacement. The glazing notes explain how contact between a glass edge and the cab frame can cause chipping or breakage as the machine moves.

Always verify your machine's current condition and follow the manual's safety precautions for raised loader arms and residual hydraulic pressure.

Engine Specifications and Overhaul Boundaries

The engine section provides specifications, including valve clearances and injection timing, plus engine removal and replacement. It does not contain a full internal engine overhaul procedure.

Further engine work is referred to 9806/2100 for the 100 Series engine up to machine 681290, or 9806/2190 for the 400 Series engine from 681291 and the 400 Series turbo diesel; these separate engine manuals are not included.

A Sample of Fluid Capacities and PMS Test Values

These capacity and electrical-test values are a small selection of the manual's technical data.

Engine oil capacity is 8.2 liters up to machine 681290 and 8.4 liters from machine 681291; hydraulic-system capacity is 26 liters.

For PMS fault tracing on the 180T with servo controls, the alternator W-terminal speed signal should read 400 Hz at 1,400 rpm and 520 Hz at 1,800 rpm.

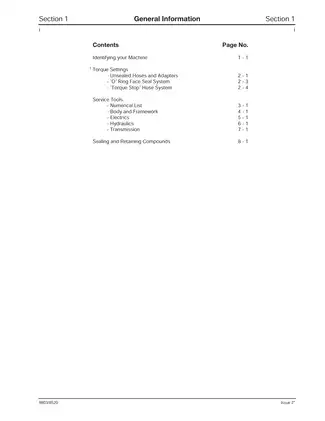

PDF Navigation and File Contents

Text search and diagram viewing: Normal PDF text search is unavailable for the manual text. Sixteen numbered bookmarks jump to page blocks rather than named chapters; small wiring labels require zooming.

The download contains one printable, 308-page English PDF, including one cover page, two blank pages, one watermark-only page, and an additional earlier revision of one transmission troubleshooting page. All of these pages are included in the total.
