JCB 520-40, 524-50 & 527-55 Compact Loadall Service Manual, 2003–2009 (P/N 9803/3690-10)

This JCB Compact Loadall service manual (Publication No. 9803/3690-10) covers the 2003–2009 520-40 from SN 1012000 and the 524-50 and 527-55 from SN 1068000. Individual sections carry their own revision suffixes.

PDF Search and Wiring Diagram Detail

Text search and navigation: The running text is searchable across all files. Some labels in the electrical schematics and harness drawings must be read on the page. Small pin numbers and wire codes are easiest to read when zoomed in, and some fine markings in the hydraulic schematics remain faint. Each file has two basic bookmarks. The contents and cross-reference links have missing jump destinations.

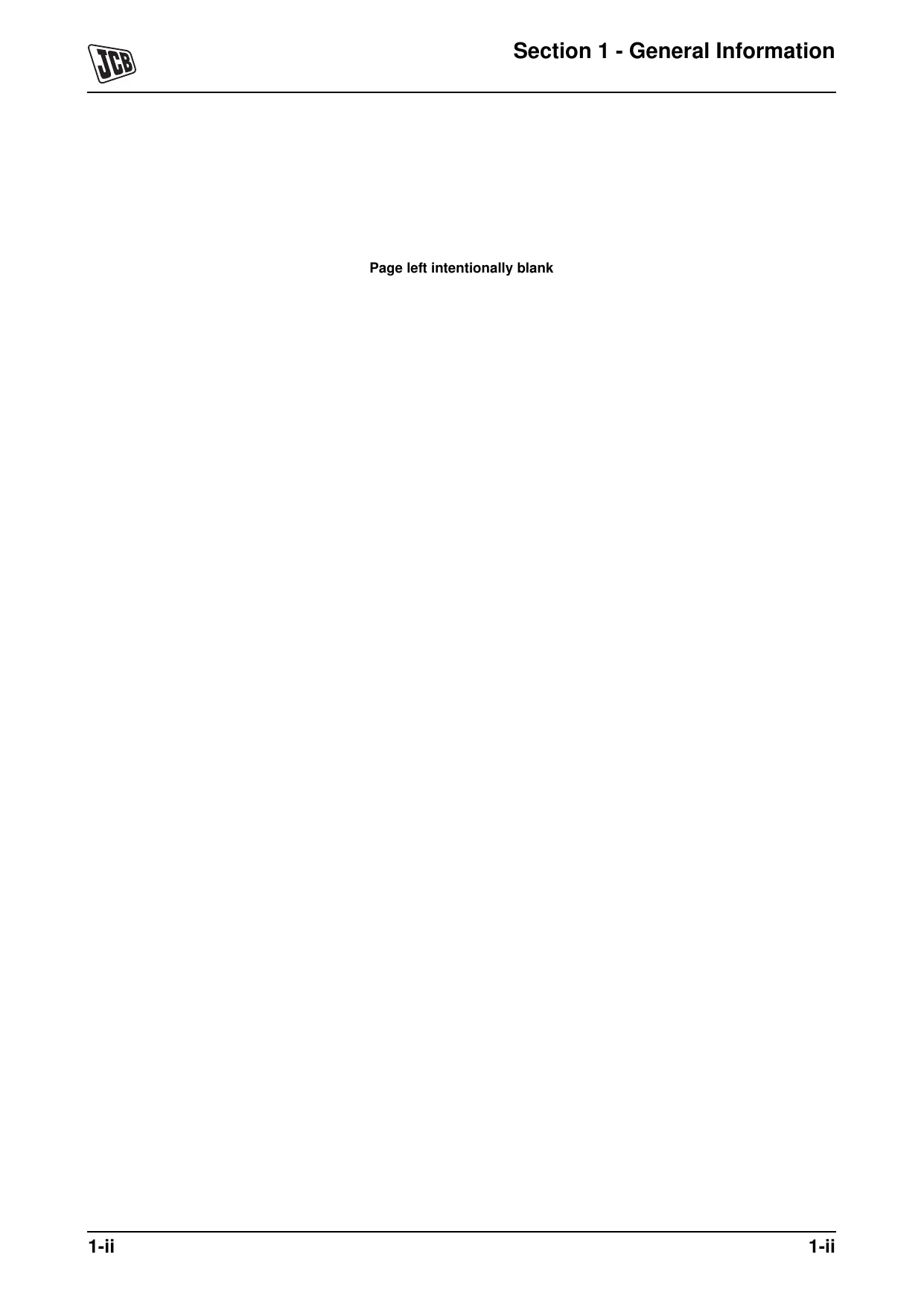

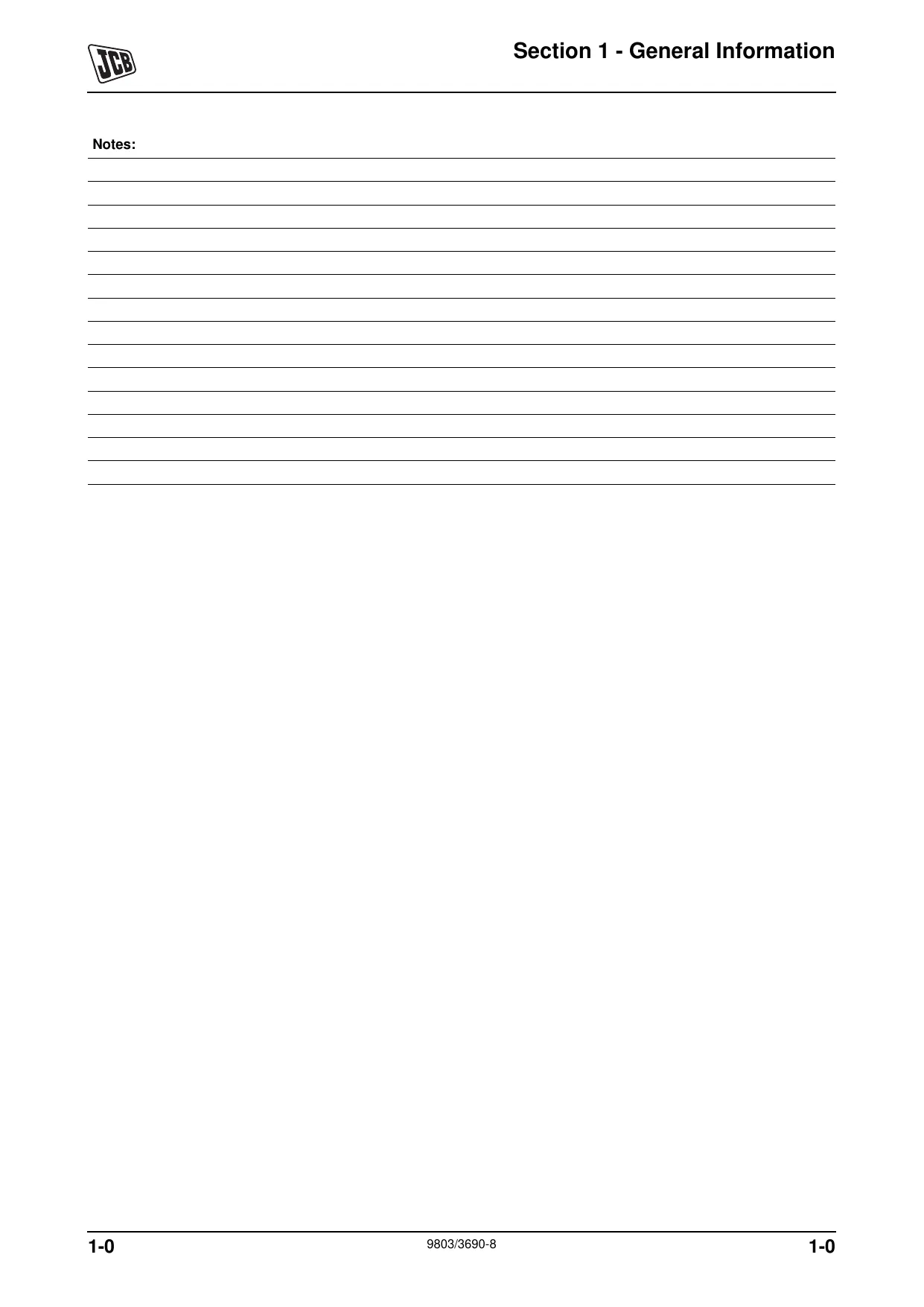

The ZIP contains 734 pages across 13 printable PDFs. The two-page opening file contains the main cover and a notes page. The 12 section files account for the other 732 pages, including their covers, notes pages, and intentionally blank pages.

Boom, Hydrostatic Drive, and Electrical Service

These selected workshop topics show the range of repairs and tests. The manual also covers direct cab glazing and manual and servo joystick service.

• Boom and tool carrier: Step-by-step procedures for boom and inner-boom removal, wear pad replacement and shimming, and Compact Q-Fit locking-pin cylinder service.
• Hydraulic testing: Main services pump flow checks, main and auxiliary relief valve testing, hydrostatic drive pressure and solenoid tests, gear pump resealing, and JCB ram sealing procedures.
• Electrical service: Serial-specific wiring diagrams for harness fault tracing, pulse-width modulation (PWM) control tests, and starter and alternator repair.
• Load Moment Indicator: Fault-code interpretation, rear-axle transducer tests, and model-specific calibration charts for machines equipped with LMI.
• Steering and brakes: Steering rephasing, proximity switch adjustment, steer-mode valve service, system bleeding, and service and park brake caliper disassembly.
• Engine service: Engine removal and installation, fuel-system bleeding, exhaust and radiator replacement, and Dieselmax cold-start heater diagnosis.

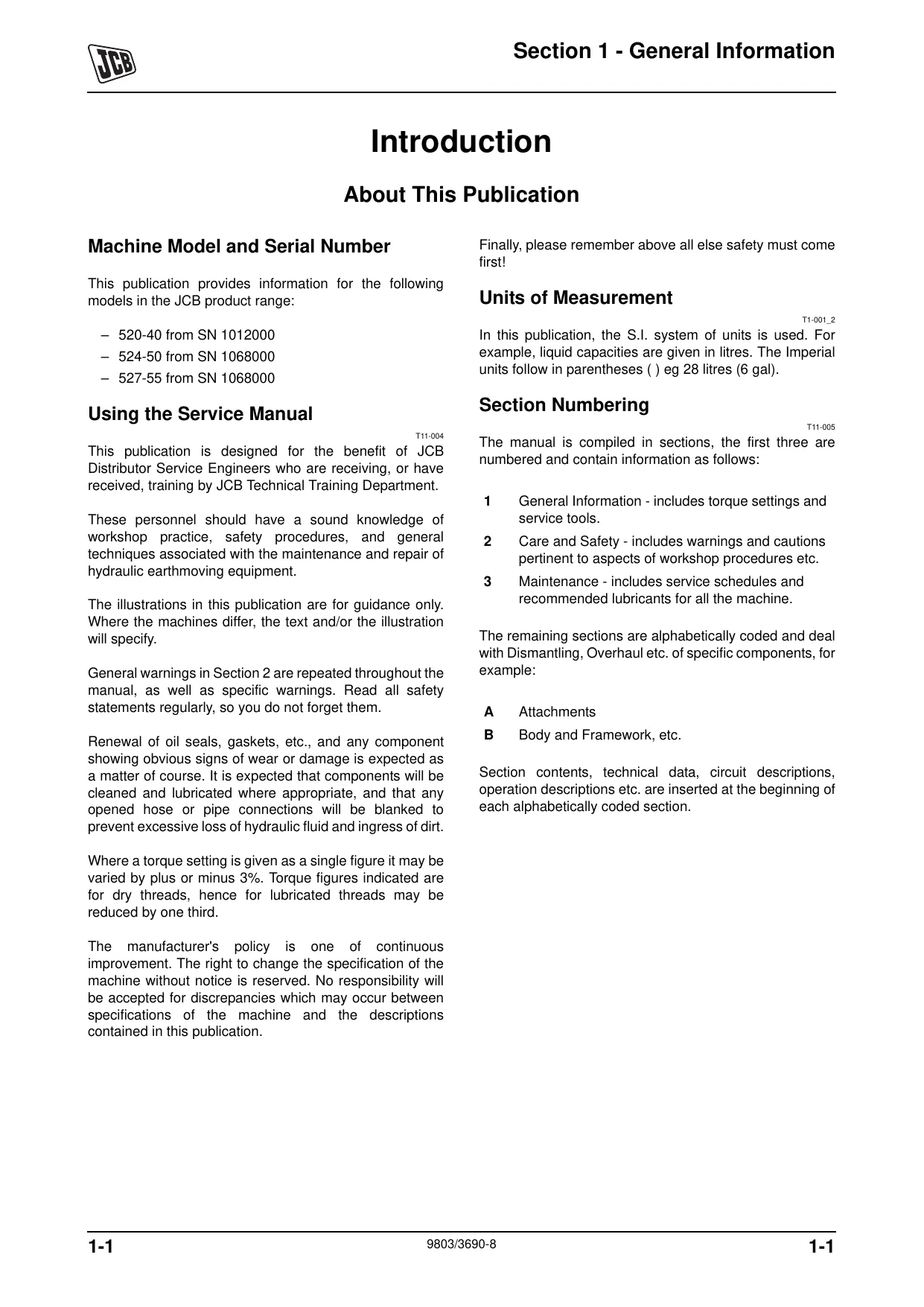

JCB wrote this manual for distributor service engineers with JCB technical training and assumes familiarity with workshop safety and hydraulic equipment repair.

Engine Builds and Hydrostatic Drive

The 520-40 engine data distinguishes the naturally aspirated HP and GN builds. For the 527-55, the engine tables distinguish the earlier RE from the Tier 2 SA and SB Dieselmax variants and the later Tier 3 SD. Maintenance and engine installation procedures for the 524-50 and 527-55 are grouped by serial number. Full internal overhaul is covered in separate engine publications.

The No Forward or Reverse Drive charts are organized by hydrostatic layout. The 520-40 has a documented change from a transfer gearbox to direct motor drive. For the 524-50 and 527-55, the hydraulic test groups overlap by serial number, so the fitted layout determines which chart to use. Pump and motor coverage includes testing, replacement, startup, and specified valve and seal work.

Axle coverage distinguishes the 520-40’s SD40 units from the SD55 units on the 524-50 and 527-55. Section F covers pinion oil seal replacement, crown wheel and pinion contact checks, and wheel hub bearing removal. For complete drive head, hub, driveshaft, and transfer gearbox rebuilding, JCB refers to the separate Transmissions Service Manual 9803-8610.

Wiring, Steering, and LMI Diagnosis

The harness drawings distinguish manual and servo controls, LLMC and non-LLMC configurations, and applicable air-conditioning and second auxiliary options. Connector and pin details, wire destinations, fuse and relay locations, and ground-point drawings help trace a circuit on the matching harness. The Boom Extension/Retraction Circuit and Auxiliary Forward/Reverse Circuit drawings show how the proportional controls operate.

The 520-40 has four-wheel steering as standard. The 524-50 and 527-55 have selectable two-wheel, four-wheel, and crab steering. The 4WS Phasing Fault Diagnosis chart helps trace steering drift, and the Park Brake Caliper exploded view supports bench work. JCB notes that North American machines typically came without LMI.

Hydraulic diagrams include a circuit color key. Some overview drawings are marked TBA, including remote steer-priority layouts and the 524-50 and 527-55 manual-control overview. Attachment coverage is limited to quick-release couplings.

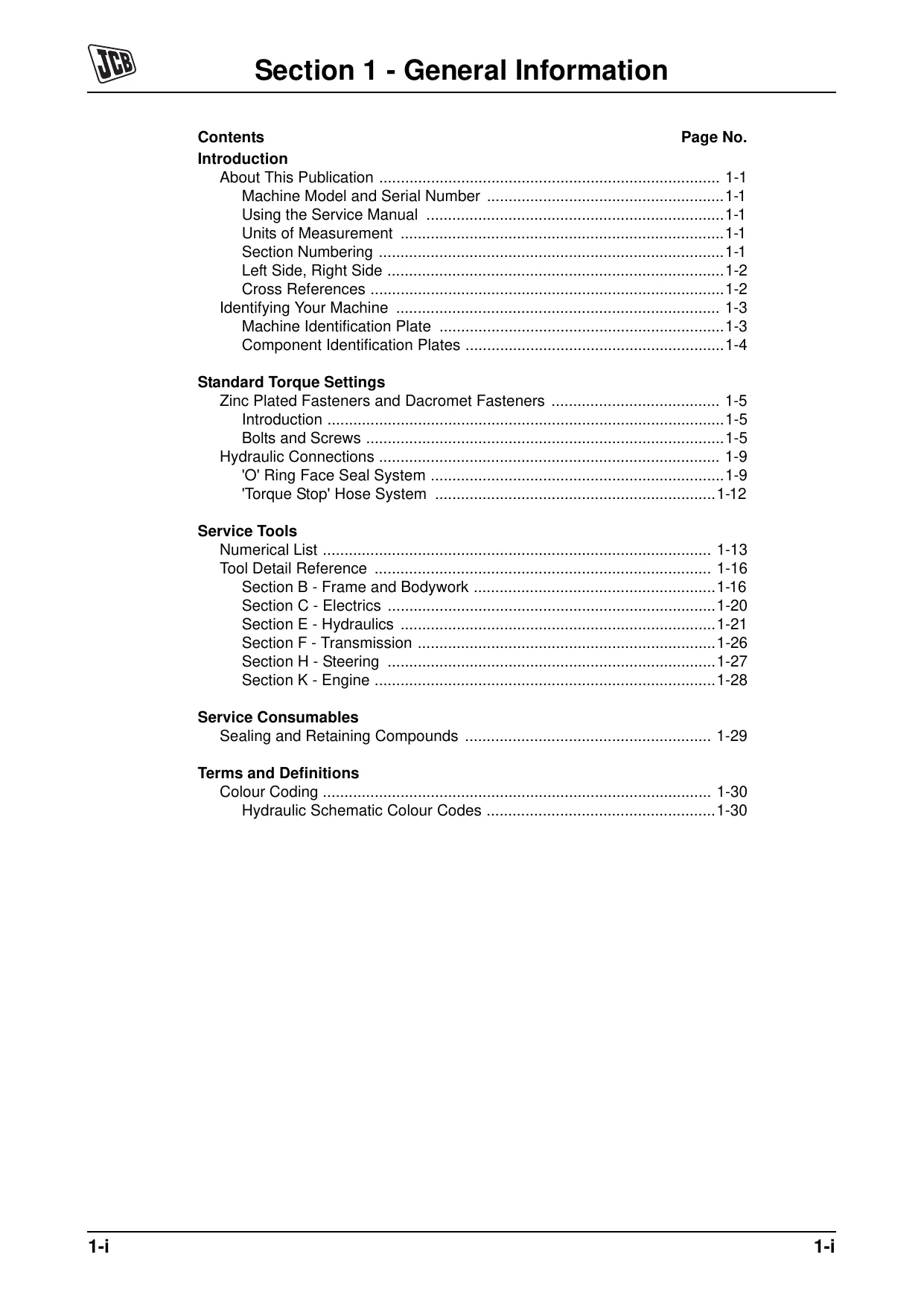

Maintenance Data and Service Tools

Machine-hour schedules and lubrication charts include intervals for dusty or severe conditions. The manual gives model- and serial-specific fluid data and coolant mixtures, thread sealant guidance, electrical test specifications, and torque tables for zinc-plated and Dacromet fasteners, including UNF Grade S and metric Grade 8.8.

Special tools include the 993/68100 slide hammer kit, the 892/00905 LMI test box, and hydraulic cylinder rod protection sleeves. The brake section warns that ordinary brake fluid can damage a system specified for JCB Light Hydraulic Fluid. Incorrect startup after hydrostatic component replacement can damage both the transmission pump and drive motor.

The safety sections cover hydraulic pressure release before line service, boom safety strut use, and protection of the ROPS/FOPS structure during maintenance.

Sample Boom and Park Brake Wear Limits

The boom inspection sets an 11 mm minimum thickness for the front side wear pads. The shimming procedure specifies a maximum total clearance of 1.5 mm side to side or top to bottom after wear pad replacement.

The park brake inspection gives a 1 mm minimum friction material thickness for either pad and explains how wear at that limit can affect adjustment.
