JCB 500 Series Telehandler Service Manual (P/N 9803/3600)
736 Pages • Printable PDF • 420.67 MB • Download
JCB Models Covered & Key Technical Specifications
Models: 500 Series, 525-58, 525-67, 527-58, 527-67, 530-67, 530-95, 530-110, 530-120, 535-67, 537-120, 537-130
Sub-models / Variants: Farm Special, Farm Special Plus, Basic Servo Options (525-58, 525-67, 527-58, 527-67, 530-67, 535-67), PlaceAce (530-110, 530-120), two stage boom, three stage boom, Servo Options (530-110, 530-120)
Engine Variants: Perkins 1000 Series AA (naturally aspirated, Construction) and AB (turbocharged, Construction and Farm Special). Syncro Shuttle stall-test engine builds: AA50261, AB50260, AB50304. The 530-110 lubrication chart also lists AA, AB, AR and AK builds.
Transmission Variants: Syncro Shuttle (four-speed; three-speed German-market version); Powershift PS740 (4 wheel drive). Powershift capacities are listed for 525-58, 525-67, 527-58, 527-67, 530-95, 525-58 Farm Special Plus, 530-67 and 535-67.
Serial Numbers: 561001 onwards (525-58 and 525-67, including Farm Special), 530-95 (from 564980), 530-110 (from 563359), 530-120 (from 562601), 530-67 and 530-67 Farm Special (from 571001), 535-67 (from 572775), 527-58 and 527-67 (from 572775), 537-120 and 537-130 (from 572900)
Hydraulic Circuit Serial Breaks: 525-58, 525-67, 530-95 and 530-110: separate circuits up to 567217 and from 567218; earlier machines with TI 5/033 incorporated use the revised circuit. Further circuit versions cover 530-67 and 535-67 up to 574295, and 527-58, 527-67, 530-95 and 535-67 from 574296.
Hydraulic Pump Serial Breaks: 530-120 pump mounting: up to 569293 without Service Bulletin 5/055; from 569294 or with Service Bulletin 5/055 incorporated. The later mounting procedure also applies to all 537-120 and 537-130 machines. Pump service for 530-120, 537-120 and 537-130 distinguishes Sundstrand SP/230/50 up to 577458 from Ultra 2PR050 from 577459.
Other Hydraulic Serial Breaks: Hydraulic tank breather connection from 567217 or with TI 5/034 incorporated. Revised 530-120 tilt and displacement rams from 567736. The 527-58, 527-67 and 535-67 steering/fan pump specifications distinguish tandem pumps up to 574295 from the single priority pump from 574296.
Boom Serial Breaks: Wear-pad shimming tables distinguish 561001–572434 with spring washers from 572435 onwards without spring washers and with TI 5/087 carried out. The 530-120 inner extension ram wear-pad procedure applies from 566223 and to machines up to 565757 with TI 5/024 Issue 3 incorporated.
Steering Ram Serial Breaks: 525-58 and 525-67: up to M561929 and from M561930. Alternative-source steering rams for 530-120, 537-120 and 537-130 from 574481 use different seal kits.
Electrical Equipment Serial Breaks: Without IP67 electrics: 561001–567361, excluding 567180, 567194, 567208, 567215, 567247 and 567233. With IP67 electrics: from 567362, including those six earlier machines.
Electrical Circuit Versions: Later main wiring diagrams cover all 527, 535 and 537 machines; 525-58, 525-67, 530-95 and 530-110 from 572168; and 530-120 from 572242. Revised brake-switch/relay components apply from 567869 or with TI 5/047 incorporated. Transmission dump relay layouts distinguish other models up to 572168/from 572169 and 530-120 up to 572242/from 572243.
SLI Serial Breaks: Separate test procedures cover models other than 537-120/537-130 up to 576403, 537-120/537-130 up to 576403, and EMC machines from 576404. The SLI wiring distinguishes 530-120 from 576404 and all 537-120/537-130 with a transducer from the boss-based arrangement on other models from 576404.
Parking Brake Serial Break: 530-110 up to 586871 and from 586872.
-
Main Relief Valve Pressure: 220–241 bar (3200–3500 lbf/in²)
-
Auxiliary Relief Valve Pressure: 96–275 bar (1400–4000 lbf/in²), depending on the hydraulic service
-
Hydraulic Pump Flow: 88.0–110.0 liters/min at max engine rev/min and zero pressure (main pump; model-dependent)
-
Hydraulic Capacity: 152–292 liters nominal machine capacity, depending on model; total system capacity depends on equipment, with all rams closed for filling and level checks
-
Engine Oil Capacity: 10 liters
JCB Manual Features & Selected Content Preview

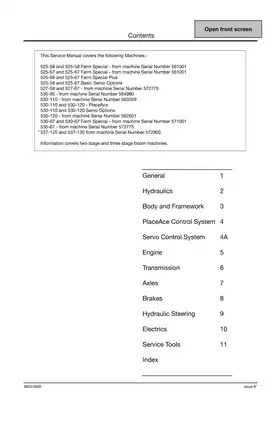

This JCB 500 Series service manual (P/N 9803/3600) documents the 525, 527, 530, 535 and 537 telehandler variants listed above, including two- and three-stage booms, Farm Special and Farm Special Plus machines. Separate sections address PlaceAce, Servo and Basic Servo controls, with model-specific serial limits and equipment differences.
PDF Search, Diagram Detail and Page Count
Search and schematic viewing: PDF text search is not available, and there are no embedded bookmarks. Dense hydraulic and wiring diagrams need zooming to read small component identifiers, terminal numbers and wire codes.
One printable PDF contains 736 pages, including the original cover and 38 blank pages. Individual service and schematic pages can be printed for workshop use.
Hydraulics, Boom Service and Drivetrain Repair
These selected workshop topics show part of the manual’s coverage. Cab glazing replacement and fuel-tank removal are among the additional procedures.
-
Hydraulic repair: Pump removal and resealing, control-valve disassembly, relief-valve pressure testing, ram repair, fan-motor service and boom-extension circuit bleeding.
-
Boom and framework: Boom removal and replacement, model-specific wear-pad shimming, extension ram wear-pad replacement and Q-Fit carriage removal.
-
Electrohydraulic controls: PlaceAce sensor testing and calibration, Motion Pac control-unit replacement, plus separate Servo and Basic Servo valve and joystick fault-finding procedures.
-
Transmission repair: Syncro Shuttle and Powershift disassembly and assembly, reverser and clutch work, torque-converter stall tests, and pressure, flow and clutch-leakage checks.
-
Axles, brakes and steering: Hub and differential overhaul, brake-pack service, master-cylinder repair, parking-brake adjustment, steering-unit assembly and hydraulic steering bleeding.
-
Engine service: Oil and filter servicing, fuel-system bleeding and priming, cooling-system maintenance, radiator removal, and engine removal and replacement.
-
Electrical diagnosis: Starting-circuit tests, A127 alternator and Lucas M127 starter service, Safe Load Indicator testing, wiring diagrams and sealed-harness repair.

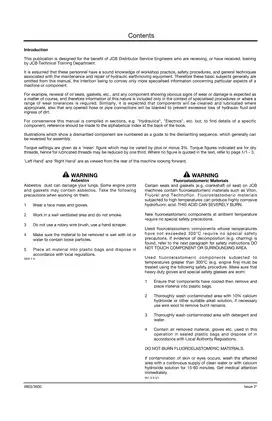

Written for JCB distributor service engineers receiving or having completed JCB technical training, this manual assumes established workshop skills and experience repairing hydraulic equipment.
Hydraulic Logic and Component Repair

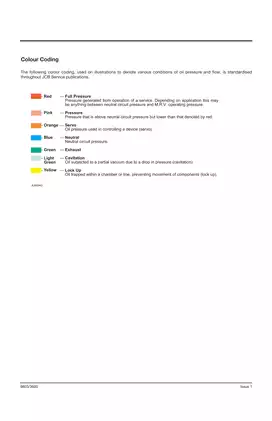

Model- and serial-specific circuits let a technician follow oil flow through load-hold check valves, hose-burst protection and regenerative boom extension before selecting the appropriate pressure test. Illustrated operating explanations cover the machine neutral circuit, boom lift and lowering, sway, and stabilizer functions.
Step-by-step procedures extend to control-valve repair and ram disassembly, with separate instructions for dowelled piston heads. Pump inspection criteria distinguish external leakage suitable for resealing from internal wear requiring pump replacement.
Incorrect main-pump drive-bush and sleeve assembly can cause premature pump-shaft failure. Mixing control-valve spools between their original bores can also cause incorrect operation and component damage.
PlaceAce Calibration and Servo Fault Finding
PlaceAce: Fault charts connect display warnings and missing boom movements with sensor, harness, joystick and valve checks. Full-system, vehicle-attitude, tachometer-feedback, pulsar-solenoid and driver-card calibration procedures accompany component replacement instructions.
Servo and Basic Servo: Separate diagnostic sections address inactive controls, missing tilt or extension functions, valve-block signals and dump-valve faults. Supporting illustrations include the PlaceAce Schematic Electrical Circuit and the Servo Wiring Diagram for 530-110/530-120 machines.
Transmission, Axle and Steering Variants
The transmission section distinguishes two- and three-piece Syncro Shuttle housings, earlier and later reverser units, and mechanical or hydraulic four-wheel-drive assemblies. Powershift coverage reaches individual clutch assemblies, mainshaft and layshaft work, with related end-float and test specifications.
Axle procedures include pinion-depth setting, crownwheel contact checks and limited-slip differential service. Steering coverage separates IP67 and earlier electrical arrangements and documents priority-valve operation. The Cutaway of Front Axle and steering operating diagrams support these sections.
Brake instructions distinguish single and tandem master cylinders, with and without servo assistance, alongside front- and rear-axle bleeding procedures.
Engine, Electrical and Air-Conditioning Scope
Engine coverage concentrates on installed-engine service and removal. Further engine details are referred to separate publication 9806/0100, which is not included in this download.
Electrical coverage includes boss- and transducer-based SLI testing, with different test-box arrangements for earlier and EMC machines. IP67 wiring diagrams, wire-number tables and harness repair are included; the introduction defers a dedicated IP67 electrical fault-finding section to a later issue.
The air-conditioning section supplies a Wiring Diagram, fault charts, leak-testing information and component replacement procedures. Refrigerant charging and discharging procedures are excluded and require trained refrigeration personnel.
Service Planning and Workshop Precautions
Fluid charts, torque tables and greasing diagrams cover pivot pins, axle lubrication, boom wear-pad runways and extension ram pivots. The service schedules bring axle, gearbox and hydraulic checks together so fleet maintenance can be planned against the machine’s inspection intervals.
Raised booms, retained hydraulic pressure and heavy assemblies require the support and isolation precautions specified in the manual.
A Preview of Coolant and PlaceAce Sensor Specifications
For the 525-58, the cooling-system chart specifies 17 liters of coolant.
The PlaceAce boom-extension sensor setting procedure for 530-110/530-120 machines specifies 0.52–0.56 volts with the boom fully retracted and 4.30–4.94 volts fully extended, with the machine on level ground. Associated sensor and harness tests provide the electrical context for these readings.
