JCB 4CX-M Military Backhoe Loader Service Manual, 2001–2007 (P/N 9803/3275)

451 Pages • 1 Printable PDF (English) • Download

5.0starstarstarstarstar(1)
$38.79 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

JCB Models Covered & Key Technical Specifications

Model: 4CX-M Military

Model Years: 2001–2007 (2001, 2002, 2003, 2004, 2005, 2006, 2007)

VIN identifiers: For the documented steering and build configuration, character 7 = F (four-wheel steering) and character 8 = S (sideshift).


  • Engine: Perkins 1000 Series AK50640, 4-cylinder turbo

  • Transmission: PS750 electro-hydraulic Powershift

  • Hydraulic system capacity: 150 liters (33 UK gallons), depending on the equipment fitted

  • Fuel tank capacity: 150 liters (33 UK gallons)

  • Hydraulic oil test temperature: 50°C (122°F)

  • Main Relief Valve (M.R.V.) pressure: 236–241 bar (3420–3500 lbf/in²)

  • Pump section 1 displacement: 33 cc/rev (2.01 cu in/rev)

  • Pump section 2 displacement: 23 cc/rev (1.40 cu in/rev)

  • Wheel nut torque: 680 Nm (500 lbf ft)

  • Hydraulic attachment flow (Hammermaster 360): 50–150 liters/min

JCB Manual Features & Selected Content Preview

This is the JCB 4CX-M Military Backhoe Loader Service Manual for the listed 2001–2007 model years. The original cover of Issue 1 (P/N 9803/3275) is marked DRAFT.

PDF Search and Page Count

Text search and diagram detail: The PDF has searchable text and section contents pages. It has no embedded bookmarks. Small wire IDs and terminal numbers on the machine wiring diagrams are easier to read when zoomed in.

The download is one printable English PDF with 451 pages, including the original JCB cover and introduction. The manual contains 12 sections.


Drivetrain Repair, Hydraulic Testing, and Wiring

These selected workshop topics include major repairs and diagnostic tests. The manual also covers checks of the cab’s ROPS/FOPS structure and servicing the hydraulic tank suction strainer.

  • Routine maintenance and engine: Service schedules, lubrication and fluid specifications, engine removal and installation, fuel-system bleeding, and cooling-system maintenance.

  • PS750 Powershift: Transmission removal, clutch-pack overhaul, torque-converter stall testing, and individual clutch leakage tests.

  • SD80 front axle and SD70 rear axle: Hub and differential repair, pinion-depth adjustment, bearing preload, and ring-and-pinion backlash checks.

  • Loader and backhoe hydraulics: Pump flow testing, control-valve service, cylinder resealing, and hose-burst protection valve checks.

  • Four-wheel steering: Steering-unit overhaul, steer-mode valve repair, system bleeding, and axle proximity-switch adjustment.

  • Machine wiring: Complete Machine schematics and component keys for blackout and convoy lighting, hydraulic tools, and transmission and steering controls.

  • Hammermaster 360 Rockbreaker: Accumulator service and charging, internal disassembly, and pressure-adjusting valve service.

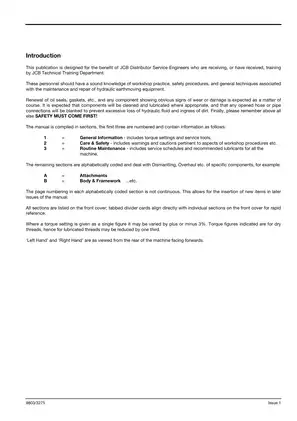

JCB wrote this manual for distributor service engineers with JCB technical training and a working knowledge of hydraulic earthmoving equipment and workshop safety.

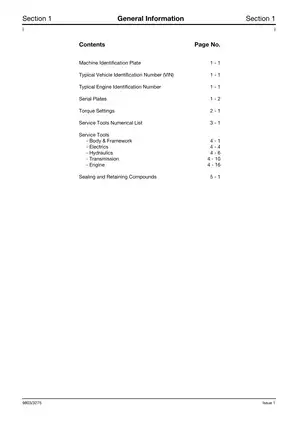

Machine Identification and Engine Scope

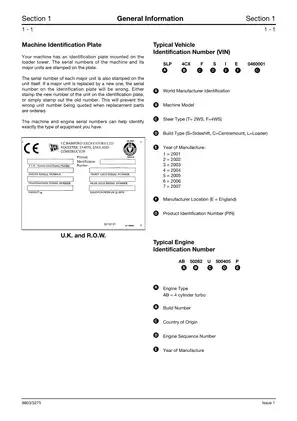

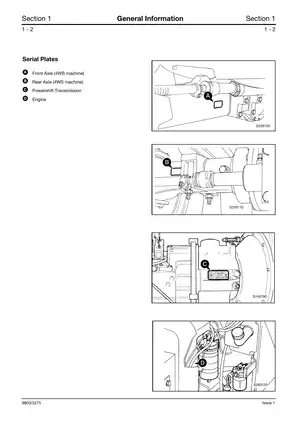

Identification pages explain the VIN fields and show where to find the axle, transmission, and engine serial plates. The engine section identifies the Perkins AK50640 and explains how to check the fuel-lift-pump inlet strainer when restricted fuel flow is suspected.

Internal engine overhaul requires a separate engine manual. The technical data refers AK, AM, and AR engines to publication 9806/2140. Other service notes reference 9806/0100. Both engine manuals are separate publications.

Powershift, Axles, and Brakes

PS750 sectional views and drivepath diagrams show which clutch packs engage in each gear. Shaft assembly details cover end float, PTFE piston-ring seals, and solid-spacer and collapsible-spacer setups. The assembly notes warn that drawing misaligned case halves together with the bolts can damage the mainshaft clutch plates.

Powershift fault charts cover low mainline pressure, clutch slip, overheating, and water contamination. The stall and leakage tests help distinguish torque-converter faults from internal clutch leakage. The water-contamination section includes a flushing procedure.

Rear-axle procedures cover oil-immersed brake packs with controlled back-off. The brake section also covers piston-seal leakage tests, bleeding, master-cylinder service, and parking-brake caliper overhaul. It explains why conventional brake fluid can damage the system’s seals.

Hydraulic Diagnosis and Steering

The machine schematic and neutral-circuit description trace flow through the 4070H double pump and control valves. The fault charts distinguish a problem affecting all hydraulic functions from one confined to a single service. The pump section describes resealing a unit with adequate output and calls for replacement if flow or pressure is low.

Procedures also cover the unloader valve, Hydraulic Speed Control, load-holding check valves, and Hydraclamp sideshift. Smooth Ride System coverage includes fault diagnosis and accumulator service, with charging specifications matched to the bucket. Smooth Ride is inoperative on machines fitted with hose-burst check valves. The boom and dipper hose-burst valves have more limited service coverage than the loader valve.

The steering schematic identifies the 160 OSPC unit, priority valve, and front and rear power track rods. The link-arm replacement procedure includes wheel-alignment checks.

Electrical Testing, Attachments, and Bodywork

The 24-volt, negative-ground system is documented with fuse and relay keys, speed-sensor tests, and harness repair procedures. The starter and alternator sections cover bench inspection and reassembly. Powershift electrical fault charts address no drive, missing gears, downshift protection, and transmission-dump faults.

Hammermaster service includes tie-rod inspection, cylinder and front-head work, and diagrams showing how the pressure-adjusting valve operates. Other sections cover earth-drill wear parts, Sweeper Collector brush replacement and height adjustment, the optional sprinkler and gutter brush, fuel-transfer-pump repair, and air-compressor valve replacement.

Bodywork and controls coverage includes direct glazing, loader arm and backhoe assembly removal, Extradig and stabilizer wear-pad checks, carriage clearance, and Return to Dig adjustment. The indexed air-conditioning service procedures, detachable-roof procedure, and separate Hammermaster torque and fault-finding pages are absent from this edition.

Workshop References and Safety

Reference tables include general and component-specific torques, fluid capacities, and military lubricant equivalents. Listed tools include the ARV test kit 892/00309, Powershift end-float kit 993/70100, and cylinder seal-fitting tool 892/00334. Safety guidance covers hydraulic pressure isolation, loader-arm support, lifting equipment, and battery gases.

Axle Backlash and Rockbreaker Wear Limits Preview

For differential assembly, the manual specifies 0.13–0.20 mm of ring-and-pinion backlash for the SD80 front axle and SD70 rear axle.

The Hammermaster 360 inspection data gives a 70 mm new tool shank diameter and a 68 mm minimum allowable diameter. It lists 72 mm as the maximum allowable bushing diameter.
