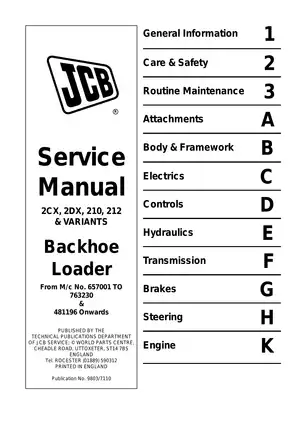

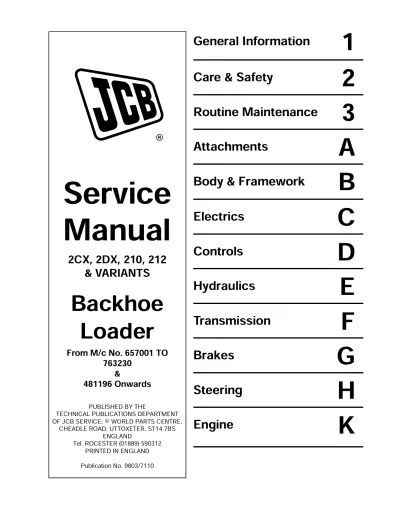

2002–2007 JCB 2CX, 2DX, 210, 212 Backhoe Loader OEM Service Manual (P/N 9803/7110)

JCB factory service publication P/N 9803/7110 covers the 2CX, 2DX, 210, 212, and related variants. Applicable machine serial ranges are 657001–763230 and 481196 onward.

The download consists of one 381-page PDF.

• Hydraulics and steering: Pump and priority-valve flow/pressure testing, MRV and ARV testing, loader and excavator valve overhaul, steering-system bleeding, and JCB ram sealing.

• Transmission and axles: Syncro Shuttle gearbox and reverser overhaul, clutch-pack work, torque-converter replacement, stall testing, and SD40/SD55 axle and differential repair.

• Brakes: Accumulator charge-valve overhaul, hydraulic pressure and leakage testing, brake bleeding, and parking-brake inspection, adjustment, and fault diagnosis.

• Electrical diagnosis: Serial-specific circuit diagrams, fuse and relay data, wire-number identification, harness references, and charging and starting tests.

• Body and attachments: Kingpost and carriage work, cab glazing, extending-dipper wear-pad inspection and reshimming, stabilizer wear-pad adjustment, and three-point-hitch service procedures.

• Maintenance and engine data: Routine service schedules, lubricant and fluid-capacity tables, fuel-system bleeding, and engine specifications organized by machine configuration.

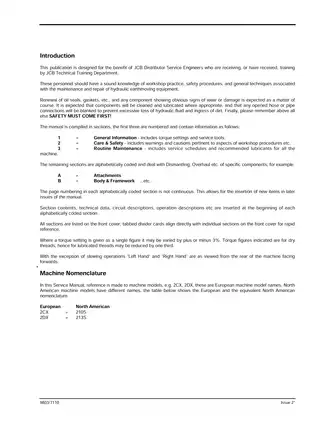

The manual is written for JCB Distributor Service Engineers receiving or having completed JCB technical training. It assumes sound workshop practice and knowledge of hydraulic earthmoving equipment maintenance and repair.

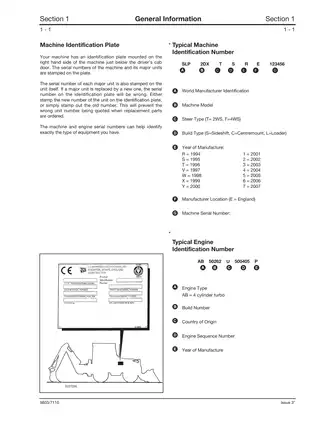

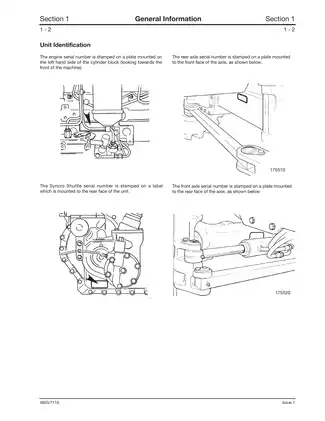

Model Variants and Serial Changes

The manual cross-references European and North American model names: 2CX = 210S and 2DX = 213S, with variant-specific material for 2CXU/212SU, 2CXL, 210SL, 2CX Farm Master, and 210FM.

Production changes include the hydraulic-pump change at serial 657448, the hydraulic system break at 658961, later capacity tables from 659599, and North American engine and fluid data from 762080. These distinctions help match service information to the machine's build configuration.

Hydraulic Circuits and Steering

Hydraulic coverage distinguishes the early Single-Priority pump arrangement from later charge/priority-valve systems and the additional 2DX pump. Main-relief settings differ by configuration; the full-power hydrostatic OSPCLS steering unit has separate relief and shock-valve data.

The diagrams include “Schematic Hydraulic Circuit – 2CX & 2DX Machines from 658961 to 763230 and from 481196 onwards” and “Hydraulic Tool Circuit (H.T.C.) – Schematic Hydraulic Circuit.” The tool circuit also has dedicated flow and pressure tests.

Later metric-threaded ram end caps use different seals and orientation from earlier designs.

Syncro Shuttle and Axle Repair

The SS400 Syncro Shuttle combines the torque converter, reverser, gearbox, and integral parking brake. Fault charts connect symptoms such as loss of drive, clutch slip, and overheating with checks; pressure/flow diagnosis includes mainline and forward/reverse clutch specifications.

SD40 coverage applies to 2CX/210S machines, with a factory note identifying SD55 axles from serial 489724. SD55 material also covers configurations including 2DX, 2CXU, 210SL, 210FM, and 212SU.

Axle repair includes open and limited-slip drive heads, crownwheel and pinion adjustment, hubs, driveshafts, propshafts, and axle removal/replacement. Separate procedures cover PTO clutch and transfer-gearbox overhaul.

Electrical Diagrams and Controls

Electrical coverage follows serial ranges, including changes around 489724. “Circuit Diagram – 212SU From Serial No. 489724,” “Heater/Air Conditioning Circuit,” and “Hydraclamp Circuit” support tracing the relevant circuits alongside wire-identification and harness information.

The controls section covers loader-control-knob dismantling and assembly, microswitch replacement, and steering-column work.

Brake Testing

The “Schematic Brake Circuit” supports the hydraulic brake procedures, including residual-pressure checks and separate low- and high-pressure leak tests. The low-pressure check can reveal small piston-seal leaks that a high-pressure test may mask as seals deform under pressure.

Brake arrangements change around serial 489724. Foot-brake valves are identified as non-serviceable; the manual covers their removal and replacement.

Cab and Air Conditioning

R-134a air-conditioning fault finding covers components such as the blower, thermostat, clutch relay, and pressure switches. Charging and discharging procedures are expressly outside this manual because they require specialist refrigeration equipment and training.

Cab work distinguishes rubber-mounted and directly bonded glazing.

Service Data and Repair Notes

Routine service schedules run from daily and weekly checks through major scheduled services. Capacity charts separate build configurations and list SD40/SD55 axle housings and hubs individually; UNF Grade 'S' and Metric Grade 8.8 torque tables distinguish dry-thread values from lubricated-thread guidance.

The numerical service-tool list contains well over 100 part-numbered entries. Hydraulic equipment includes Hydraulic Circuit Pressure Test Kit 892/00253 and Flow Monitoring Unit 892/00268.

Mechanical setup tools include Drive Coupling Spanner 892/00812, Torque Multiplier 992/04000, and End Float Setting Tool 993/59400. Engine-related tools include fuel-injection-pump Timing Pin 892/00956.

Excessive drive-head rolling torque distorts the collapsible pinion spacer, requiring renewal; ram assembly guidance specifies a protection sleeve to prevent rod-seal damage. Rubber-glazing instructions call for a nylon spatula because metal tools can chip the glass edge.

Engine Data and Scope Limits

Engine Section K provides technical data rather than a full engine rebuild section. It identifies builds including 1004-4LR2/AA50429, AA50525, and later North American 1004-40AJ/AJ50686 and 1004-42AR/AR50696, then directs deeper engine repair to separate JCB Engine Service Manuals 9806/0100 or 9806/2140.

Revision markings vary by section. Steering service data appears under Section E Hydraulics; this PDF has no separate Section H page set.

Hydraulic and brake circuits can retain dangerous pressure, and raised loader/backhoe structures require secure support. Follow the manual's safety procedures and use qualified personnel for repair work outside your training or equipment level.

PDF Navigation and Diagram Readability

One cover page and one introduction page are already included in the stated page total. The 20 numbered bookmarks jump between page blocks rather than named chapters, while standard PDF text search is not usable because of character encoding and image-based content. Small wiring-diagram labels are best read at higher zoom.
