Prior to 1988 Suzuki DT30, DT30C, DT35, and DT40 Outboard Condensed Service Manual (P/N 99500-30102)

This condensed service manual covers 1983–1989 Suzuki DT30, DT30C, DT35, and DT40 outboard motors, with maintenance, lubrication, and overhaul information for the two-cylinder and three-cylinder configurations.

Text search, bookmarks, and wiring detail: OCR text search is available, although some words and diagram labels contain recognition errors. Four bookmarks open the model sections. Small wiring labels require zooming; some DT35/DT40 labels remain difficult to read when enlarged.

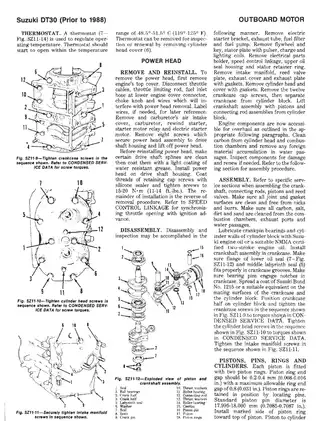

• Power-head repair: Removal and installation, crankcase disassembly, piston and cylinder inspection, crankshaft checks, and reassembly with component-specific tightening sequences.

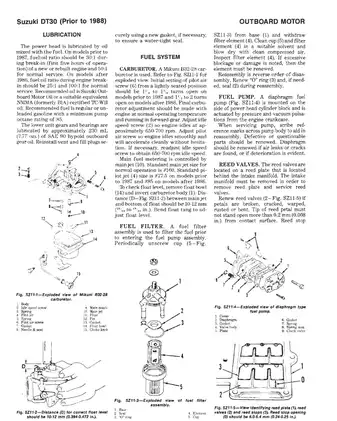

• Fuel system: Mikuni carburetor float adjustments, throttle/ignition synchronization, reed valve inspections, fuel-filter service, and diaphragm fuel-pump overhaul.

• Oil injection: Pump bleeding, delivery tests, control-linkage adjustment, and DT30C oil-flow-sensor testing for the automatic lubrication system.

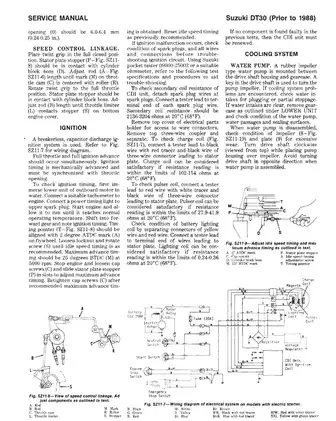

• Ignition and charging: CDI troubleshooting, condenser charging coil and pulser coil tests, throttle-valve-sensor adjustment, idle-speed-switch diagnosis, and rectifier test data.

• Cooling system: Water pump impeller replacement, thermostat inspection, and DT30C engine-temperature-sensor and cooling-water-flow-sensor checks.

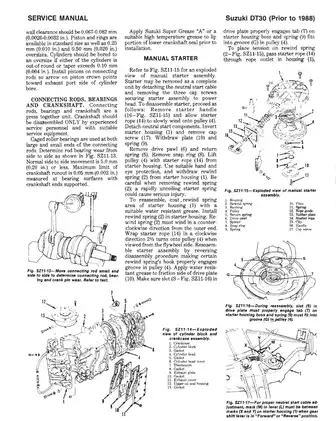

• Starters and gearcase: Manual rewind starter and electric starter motor service, neutral start interlock adjustment, propeller shaft service, and gearcase backlash shimming.

• Power tilt: Hydraulic bleeding, up/down circuit pressure tests, and identification of the different pump assemblies in the DT35/DT40 section.

This material suits mechanics familiar with two-stroke outboards and electrical test equipment; pressed-crankshaft disassembly is specifically reserved for experienced service personnel with suitable workshop equipment.

Technical Engine Coverage

The DT40 material separates the 617 cc engine with independent or simultaneous ignition from the 696 cc oil-injected configuration shared with the DT35. The DT30C has its own three-cylinder service section.

Power-head inspection data covers piston-to-cylinder clearances, ring gaps, crankshaft runout, and connecting-rod bearing wear. Component torque specifications and illustrated tightening sequences support power-head reassembly.

Carburetors and Oil Injection

The fuel-system sections distinguish single-carburetor setups from the DT30C's three Mikuni B26-20 carburetors. Speed-control linkage views and the reed-block cross-section in Fig. SZ11-39 support synchronization and reed inspection.

DT30C oil-injection coverage connects pump-control linkage adjustment with throttle synchronization and measured pump output. The DT35/DT40 section also explains the air/oil mixing valve and its role in distributing injected oil.

Ignition Diagnosis and Electrical References

The DT30C throttle-valve-sensor procedure identifies test harness 09930-89530. A misadjusted sensor can make the idle-speed switch appear defective; the related checks help distinguish sensor setup from an actual switch failure.

Electrical references include the DT30C wiring diagram in Fig. SZ11-44, the throttle-position/ignition-timing chart in Fig. SZ11-45, and the DT40 neutral start interlock test chart in Fig. SZ12-8. Separate CDI test charts address independent and simultaneous ignition, alongside model-specific charging, pulser, counter-coil, and ignition-coil test data.

For DT35/DT40 CDI-module testing, the text identifies dedicated Suzuki testers and a test harness; their operating procedures are supplied with the tester.

Lower Unit Repair and Adjustment

Gearcase repair includes bearing-carrier extraction, dog-clutch inspection, and shift-control linkage adjustment. Backlash and gear-tooth-contact checks accompany shim and propeller-shaft end-play adjustments.

The combined DT35/DT40 gearcase exploded view in Fig. SZ13-30 locates the gears, bearings, and shift components. Its propeller-shaft removal illustration identifies Suzuki remover 09950-59310 and slide hammer 09930-30102.

Power Tilt Pump Variants

The DT35/DT40 section covers power tilt only; using this system as power trim can damage it. Figure SZ13-35 distinguishes pump assemblies before S/N 613245 from those after S/N 613244, with different oil-level checking positions.

The hydraulic coverage includes manual-release-valve identification and separate up/down pressure tests. Marine engine repair involves high-voltage ignition and flammable fuel; work within your training or consult a qualified marine technician.

PDF Sections and Page Count

The manual is supplied as one printable, English-language, 36-page PDF: DT30 section, 7 pages; DT30C, 11 pages; standalone DT40, 7 pages; combined DT35/DT40, 11 pages. These counts include the section-opening specification pages; there are no separate cover or addendum pages.
