Yamaha Grizzly 300 ATV Service Manual – 2012 YFM30GB (P/N LIT-11616-25-16)

312 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(4)
$17.99 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models & Model Codes: Grizzly 300 (YFM30GB, 1SC1)

Model Year: 2012


  • Engine displacement: 287 cm³

  • Engine type: Liquid cooled 4-stroke, SOHC

  • Transmission type: V-belt automatic

  • Starting system: Electric starter

  • Drive system: Shaft drive

  • Fuel capacity: 10.7 L (2.83 US gal)

  • Tire size (front): AT22 x 7-10

  • Tire size (rear): AT22 x 10-9

  • Battery capacity: 12 V 10.0 Ah

Yamaha Manual Features & Selected Content Preview

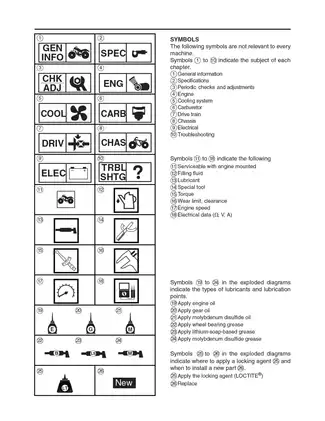

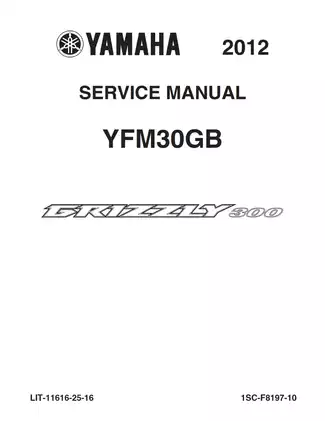

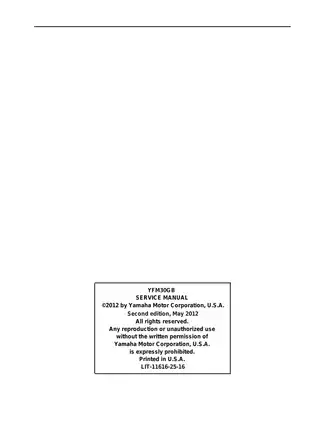

This Yamaha factory service manual covers the 2012 Grizzly 300 ATV (YFM30GB, model code 1SC1). It is the second edition, dated May 2012 (P/N LIT-11616-25-16). The cover also carries document identifier 1SC-F8197-10.

PDF Text Search and Wiring Detail

Search, navigation, and diagram labels: Text search is available in the table of contents and on selected service pages. Most specification and repair pages are image-based, and the PDF has no embedded bookmarks. Zoom in to read small wire codes and connector labels on the wiring diagrams.

The download is one printable English-language PDF with 312 pages. That total includes 18 introductory pages, counting the front cover and one blank page, plus 292 technical chapter pages, the back cover, and the final YFM30GB wiring diagram.


Workshop Coverage by System

The list below highlights selected service procedures. Other examples in the manual include starter-clutch disassembly and front toe-in adjustment.

  • Engine repair: Engine removal, cylinder-head service, valve and piston inspection, crankcase separation, crankshaft installation, and oil-pump checks.

  • Belt drive and transmission: V-belt replacement, clutch-shoe and sheave inspection, transfer-case service, bearing-shim adjustment, and internal transmission checks.

  • Carburetor and emissions: CVK 32 carburetor disassembly, diaphragm inspection, fuel-level adjustment, and Air Induction System checks.

  • Cooling system: Radiator-cap pressure testing, thermostat opening checks, and water-pump disassembly, inspection, and seal replacement.

  • Brakes and chassis: Step-by-step instructions for hydraulic brake bleeding, plus master-cylinder service, parking-brake adjustment, steering-knuckle removal, and double-wishbone front-suspension inspection.

  • Electrical diagnosis: DC-CDI ignition tests, starting-circuit checks, charging-system diagnosis, lighting and signal troubleshooting, and radiator-fan circuit testing.

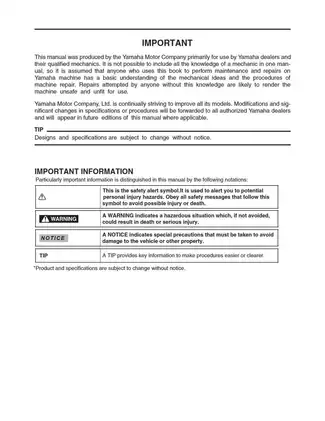

Written primarily for Yamaha dealers and qualified mechanics, the manual assumes a working knowledge of mechanical principles and machine repair.

Engine Maintenance and Internal Repair

The periodic-check sections cover emission-control maintenance, valve clearance, ignition timing, compression testing, engine-oil changes, and air-filter service. Throttle-lever free play and speed-limiter adjustment have their own procedures.

Internal engine coverage includes valve-seat inspection and lapping, piston-ring and timing-chain checks, and cylinder-bore wear limits. The valve-service illustrations show the camshaft sprocket’s “I” mark as a reference for top dead center on the compression stroke.

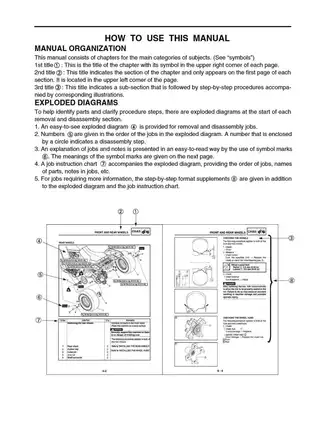

Exploded assembly views accompany the repair procedures, and separate tables list engine and chassis tightening torques. The crankshaft removal instructions identify crankcase separator 90890-04152 / YU-A9642.

CVT, Transfer Gears, and Rear Final Drive

The belt-drive section distinguishes the primary sheave’s weights and sliders from the secondary sheave’s torque cam and compression spring. Transmission coverage extends to the high, low, and reverse gear assemblies, shift forks, and shift cam.

Bearing-shim calculations and a color-coded chart guide final-shaft circlip washer selection. The rear-drive chapter covers ring-and-pinion inspection, roller-bearing service, and backlash adjustment. It also warns that striking the axle directly can damage its threads and splines.

CVK 32 Carburetor and Air Induction

Carburetor inspection covers the piston-valve diaphragm, coasting enricher, needle valve, jets, and starter plunger. The float-chamber mating surface is the reference for the fuel-level check.

The Air Induction System section explains how intake pressure controls one air cut-off valve and how the control unit operates the other. It also covers checks of the valves, hoses, and connecting tube.

Radiator, Thermostat, and Water Pump

The coolant flow diagrams show the circuit through the radiator and engine. The pump procedures identify the impeller’s left-hand thread and cover the shaft, bearing, oil seal, and mechanical seal. The seal-installation instructions specify installer 90890-04078 / YM-33221.

Brake Hydraulics, Steering, and Suspension

The chassis chapter covers caliper inspection and pad replacement, and it treats the rear brake lever and pedal separately from the parking-brake cable. Steering and suspension procedures cover the steering-stem bushings, tie-rods, front-arm ball joints, and rear-swingarm bearings.

Brake and steering work directly affects rider safety. Pay particular attention to the specified tightening torques and operational checks.

Electrical Tests and Fault Isolation

The ignition, starting, and charging circuit diagrams supplement the full-vehicle wiring diagram and cable-routing illustrations. Troubleshooting charts pair spark and coil-resistance tests with switch-continuity and wiring checks to help distinguish a failed component from a connection fault when the engine has no spark or won’t crank.

A Preview of Valve Clearances and Oil-Pump Limits

The valve adjustment section specifies 0.08–0.12 mm for the intake valve and 0.13–0.17 mm for the exhaust valve. Both ranges apply with the engine cold and the piston at top dead center on the compression stroke.

For the trochoid oil pump, the standard inner-to-outer rotor tip clearance is 0.15 mm, with a service limit of 0.20 mm. The manual lists separate limits for clearance at the pump housing.
