Yamaha Grizzly 300 2012–2013 Service & Owner’s Manual Set (P/N LIT-11616-25-16)

446 Pages • ZIP Download: 2 Printable PDFs • 125.46 MB

5.0starstarstarstarstar(1)
$17.50 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models & Model Codes: Grizzly 300 (YFM30GB, 1SC1)

Sub-models / Variants: 2WD, V-belt automatic transmission

Model Years: 2012–2013

Serial Numbers: RK1AH34W0B0000001-


  • Engine displacement: 287 cm³

  • Ignition system: DC CDI

  • Charging system: AC magneto

  • Compression pressure: 1,200 kPa (12.0 kg/cm², 174.0 psi)

  • Battery capacity: 12 V, 10 Ah (GTX12-BS)

  • Wheelbase: 1199 mm (47.2 in)

  • Front carrier load limit: 20.0 kg (44 lb)

  • Rear carrier load limit: 45.0 kg (99 lb)

  • Maximum total load capacity: 155.0 kg (342 lb)

  • Tire pressure (Front): 30.0 kPa (4.4 psi)

  • Tire pressure (Rear): 25.0 kPa (3.6 psi)

  • Spark plug: NGK/CR8E

Yamaha Manual Features & Selected Content Preview

Publication Pages
Service Manual — Grizzly 300 / YFM30GB, model code 1SC1, 2012. P/N LIT-11616-25-16; first edition, September 2011. 306

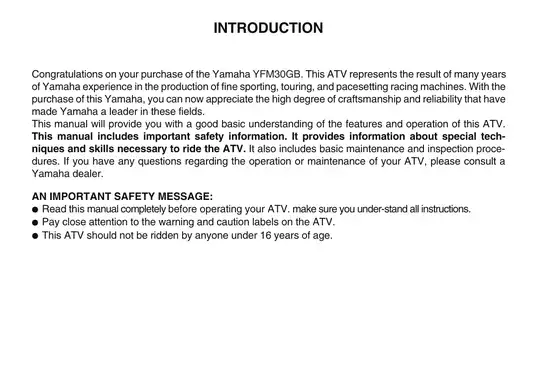

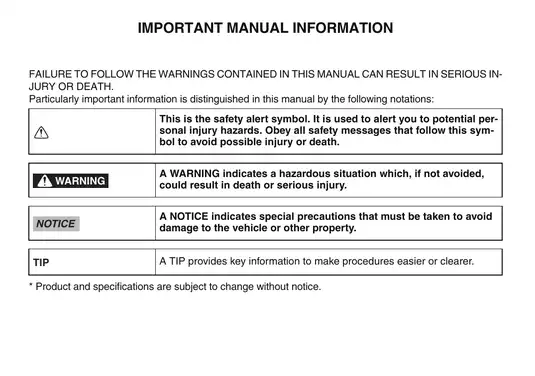

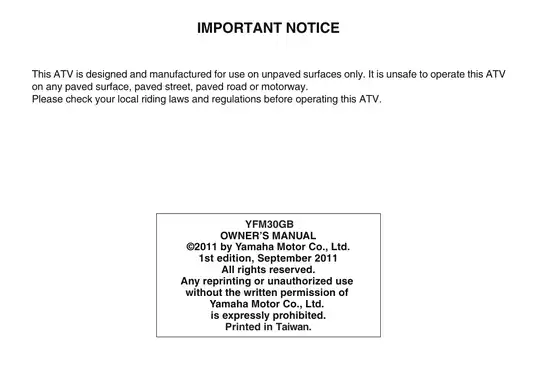

Owner’s Manual — YFM30GB. P/N 1SC-F8199-60-E0; first edition, September 2011. 140

The Service Manual provides the internal repair procedures, while the Owner’s Manual covers operation, preventive maintenance, and basic troubleshooting.

Searchable PDFs and Wiring Diagram Detail

Text search and diagram viewing: Both manuals have searchable text and embedded PDF bookmarks. Small labels in the Service Manual’s circuit and wiring diagrams require zooming.

The ZIP download contains 2 printable PDFs with 446 pages in total. This includes the original covers, the EC declaration, the final wiring diagram, and one blank page in each file.


Engine, Driveline, and Electrical Workshop Coverage

The following highlights are a selection of the included content. Additional topics include body-panel removal and headlight-beam adjustment.

  • Engine repair: Engine removal, cylinder-head service, camshaft and rocker-arm inspection, valve and spring work, cylinder and piston checks, and crankcase disassembly.

  • Belt drive and transmission: Primary and secondary sheave service, clutch inspection, transfer-case and transmission teardown, and shift-cam and shift-fork checks.

  • Rear axle and final drive: Driveshaft removal, gear-case disassembly, bearing and oil-seal work, ring-and-pinion inspection, shim selection, and backlash adjustment.

  • Cooling and fuel systems: Radiator and thermostat testing, water-pump service, and carburetor disassembly, inspection, reassembly, installation, and fuel-level adjustment.

  • Brakes and chassis: Hydraulic bleeding, caliper and master-cylinder repair, wheel-hub bearings, steering stem, tie-rods, knuckles, ball joints, front arms, swingarm, and shock-absorber checks.

  • Electrical diagnosis: Ignition, starting, charging, lighting, signal, and cooling circuits, with switch-continuity tests, component checks, diagnostic flowcharts, and the YFM30GB wiring diagram.

  • Owner operation and maintenance: Controls, pre-ride checks, riding safety, loading, maintenance schedules, storage, and basic troubleshooting charts.

The Service Manual was written primarily for Yamaha dealers and qualified mechanics with a basic understanding of mechanical principles and repair procedures; the companion Owner’s Manual supports operators with routine checks and maintenance.

Engine Inspection and Assembly References

The documented powertrain combines a liquid-cooled SOHC single-cylinder engine, CVK32 carburetor, dry centrifugal clutch, V-belt automatic transmission, shaft final drive, and DC-CDI ignition.

Step-by-step procedures pair exploded assembly views and job instruction charts with inspection criteria, replacement points, lubrication callouts, and component-specific torque data. Internal engine coverage extends to the CDI magneto, starter clutch, oil pump, crankshaft, connecting rod, and timing-chain components.

Reference sections consolidate approved lubricants, fluid capacities, wear limits, clearances, tightening torques, and electrical test specifications.

Transmission Shims and Final-Drive Service

Transmission assembly instructions include bearing-shim and drive-pinion-shim calculations, plus final-shaft circlip-washer selection. These references connect measured clearances with the parts used during reassembly.

The rear-axle chapter warns that direct hammer blows can damage axle threads and splines; it also identifies the final-drive bearing retainer’s left-hand threads. Belt-drive assembly notes address grease contamination that can cause slipping, while the selector section warns that shifting before the ATV has stopped with the throttle closed can damage the transmission.

Special Tools for Workshop Jobs

Yamaha’s special-tool section cross-references 90890 numbers with US/Canada YM and YU numbers. These references help identify the specified equipment before an assembly is taken apart.

Examples include the crankcase separator 90890-04152 / YU-A9642 and clutch spring holder 90890-01337 / YM-33285. Fuel-level checks use gauge 90890-01312 / YM-01312-A; rear-axle work references nut wrench 90890-01498 / YM-37134.

Follow the manual’s safety warnings and post-repair checks, especially for spring-loaded clutch work and hydraulic brake service.

Circuit Diagrams and Fault-Finding

Reference drawings include coolant-flow and oil-flow diagrams, cable-routing views, the ignition circuit diagram, the electric-starting circuit diagram, and the full YFM30GB wiring diagram. Electrical checks pair the drawings with continuity, resistance, voltage, and component tests.

Separate fault-finding sections address hard starting, poor idle or high-speed performance, faulty shifting, clutch slip, and overheating. Other sections cover weak brakes, shock-absorber problems, unstable handling, and lighting failures.

Operating Guidance and Routine Maintenance

The Owner’s Manual explains cold and warm starting, drive-selector and reverse operation, break-in, accessories, and loading. Emission-control and lubrication charts accompany procedures for engine, transfer-gear, and final-gear oil service.

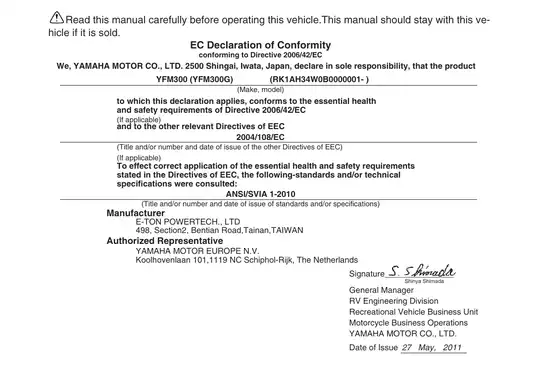

Routine coverage also includes air-filter and spark-arrester cleaning, brake and battery care, and wheel service. Regional warning-label layouts and the EC Declaration for YFM300/YFM300G are included.

A Preview of Valve-Clearance and Charging Checks

For valve-clearance checks on a cold engine at room temperature, with the piston at TDC on the compression stroke, the Service Manual specifies 0.08–0.12 mm intake clearance and 0.13–0.17 mm exhaust clearance.

The charging-system troubleshooting procedure specifies 14 V at 5,000 r/min with a fully charged battery.
