1988–1991 Suzuki GSX-R750 Service Manual (P/N 99500-37055-01E)

• Covers Suzuki GSX-R750J (1988), K and RK (1989), L (1990), and M (1991), including model supplements and a 1988 production-change appendix.
• Engine removal and reinstallation, compression and oil-pressure testing, clutch inspection, and six-speed transmission repair.
• Carburetor overhaul, float-height adjustment, vacuum-balancer calibration, and synchronization.
• Charging-system fault tracing, generator and starter overhaul, and ignition-component testing.
• Front fork rebuilding, steering-bearing service, swingarm and suspension-linkage inspection, plus brake caliper and master-cylinder repair and hydraulic bleeding.
• Destination-specific wiring diagrams, cable and hose routing drawings, and troubleshooting charts organized by symptom, cause, and remedy.

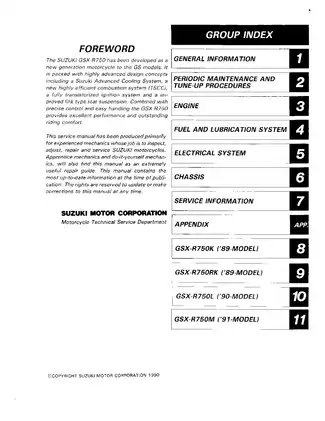

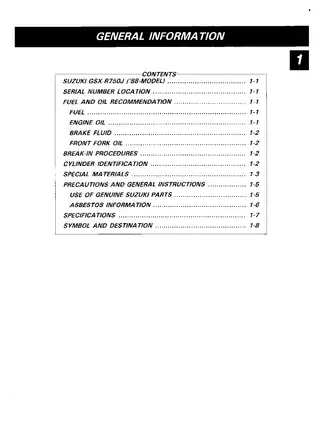

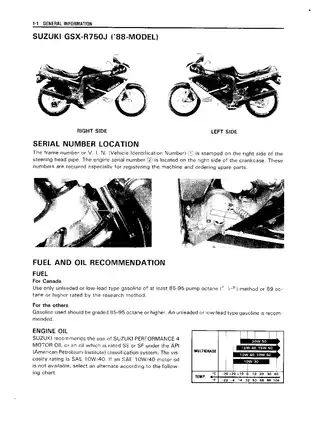

This 399-page PDF reproduces Suzuki Motor Corporation’s service manual, P/N 99500-37055-01E, sixth edition, December 1990. Suzuki wrote it primarily for experienced mechanics inspecting, adjusting, repairing, and servicing its motorcycles.

Model Supplements and Production Changes

The base chapters cover the J model; later supplements supply changes to use alongside those chapters. The 1988 appendix identifies early and late piston-ring and clutch arrangements, applicable frame-number breaks, and parts interchangeability. It also documents a production change to starter-motor lead routing.

Carburetor coverage distinguishes the J/K models’ Mikuni BST36SS units from the RK’s BST40SS and the L’s BST38SS. The M tables separate U.S. BST38SS and California BST36SS applications. The RK supplement also covers revised transmission gearing and its oil cooler and sub-oil-cooler arrangement.

Engine Inspection and Maintenance

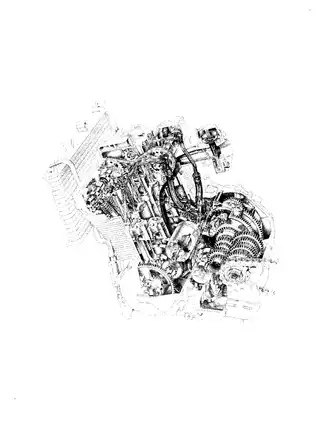

The engine chapters address the SACS-cooled inline-four TSCC powerplant. Inside, you will find detailed inspection and servicing procedures for cylinder heads, pistons, crankshafts, and the transmission gear assembly. Work extends to valve-guide replacement, valve-seat reconditioning, cylinder wear assessment, and camshaft and cam-chain timing checks.

Color-coded bearing-selection tables support connecting-rod and crankshaft repair, including journal oil-clearance and thrust-clearance assessment. The transmission’s Location of Small Parts section view identifies gear, washer, and circlip positions during reassembly.

The manual warns that uneven camshaft journal-holder tightening can damage the cylinder-head or holder thrust surfaces. Its assembly coverage also identifies oil-jet locations and sealing points.

It also clarifies regular maintenance intervals, with procedures for valve-clearance adjustments, spark-plug inspection, and drive-chain care. The M supplement provides tappet-shim selection tables for intake and exhaust valves. The RK section adds chain cutting, joining, and riveting procedures using Suzuki tool 09922-22710.

Fuel, Lubrication, and Electrical Diagnosis

Carburetor sections explain the diaphragm, slow, main, starter, and float systems, with market-specific settings and needle-valve inspection. Suzuki carburetor balancer 09913-13121 is identified for the synchronization work.

The Engine Lubrication System Chart and Cylinder Head Cooling System Chart trace oil flow through the SACS circuits. Related material covers the sump strainer, pressure regulator, oil pump, and cooler.

Electrical checks address the IC regulator, ignition coils, signal generator, ignitor, and starter relay. Ignition-timing data accompany the component tests. The Side-Stand/Ignition Interlock System circuit drawing and inspection section explain the relationship between the neutral switch, side-stand switch, relay, and diode.

Suspension, Brake Service, and Factory Specifications

Front Fork exploded views accompany bushing, seal, and damper work. The L supplement adds steering-damper setting and swingarm-pivot thrust-clearance adjustment; the M supplement contains a separate front-fork procedure specifically labeled for Canada.

Rear-suspension coverage includes preload and damping adjustments. The base rear shock is a nonserviceable unit; the RK supplement covers spring removal and reassembly but identifies its reservoir as nonserviceable. Fork-service cautions warn that improper bushing installation can damage their Teflon-coated surfaces.

Factory reference tables supply component-specific torque specifications, fluid capacities, wear limits, valve clearances, spark-plug gaps, tire pressures, and electrical test values. Model supplements distinguish revised settings and components so the base specifications are not applied indiscriminately across the range.

Always ensure you have the proper training, workspace, and tools before performing engine, brake, or suspension repair.
