2004 Kia Sorento G 3.5 DOHC Automatic Transaxle System Repair Manual

Official Maintenance Blueprint: Kia Sorento (2004) Transmission-Guide — detailing automatic transaxle system, hydraulic control system, and diagnostic troubleshooting codes. PN 45000-39500

4.7starstarstarstarstar_half(3)
visibility Preview Available
Kia 2004 Kia Sorento G 3.5 DOHC Automatic Transaxle System Repair Manual manual page preview - page 1 of 1056

Sample pages from the 2004 Kia Sorento G 3.5 DOHC Automatic Transaxle System Repair Manual manual

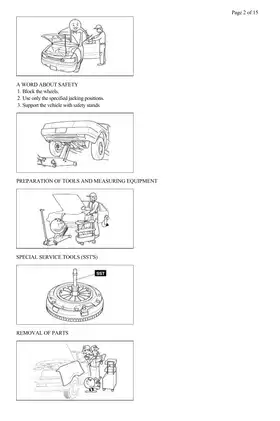

Kia 2004 Kia Sorento G 3.5 DOHC Automatic Transaxle System Repair Manual manual preview page 2 - thumbnail

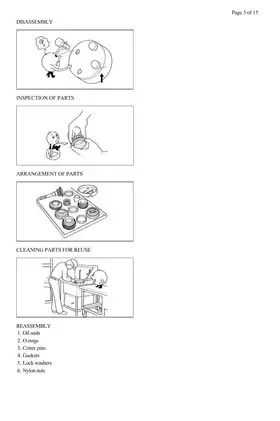

Kia 2004 Kia Sorento G 3.5 DOHC Automatic Transaxle System Repair Manual manual preview page 3 - thumbnail

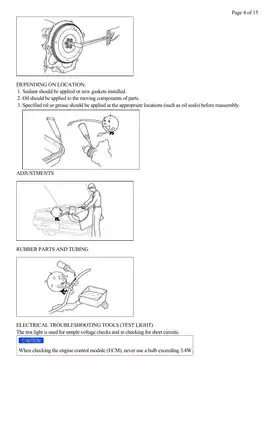

Kia 2004 Kia Sorento G 3.5 DOHC Automatic Transaxle System Repair Manual manual preview page 4 - thumbnail

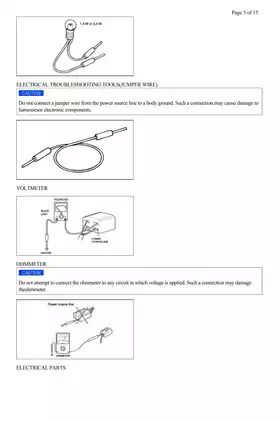

Kia 2004 Kia Sorento G 3.5 DOHC Automatic Transaxle System Repair Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$12.35 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Kia Models Covered & Key Technical Specifications

Models: 2004 Kia Sorento
Sub-models / Variants: 3.5L DOHC, Automatic Transaxle, 4WD, 2WD
Build Years: 2004
Serial Numbers: 45000–39500
Technical Data:

  • Transmission Gear Ratio (1st): 2.804
  • Transmission Fluid Capacity: 11.5 liters (12.2 US qt)
  • Transfer Case Fluid Capacity: 1.42 liters (1.50 US qt)
  • Transfer Case Gear Ratio (LOW): 2.480
  • Output Speed Sensor Resistance: 560–680 ohms (20°C)
  • Solenoid Valve Resistance: 11–15 ohms
  • Pressure Solenoid Resistance: 3.3–3.7 ohms
  • Torque Converter Stall Speed: 2480 ± 250 rpm
  • Solenoid Operation Voltage: Vbatt – 0V (1.9A Max)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
30825 / Susan Cooper
File Size:
29.14 MB
File Type:
PDF
Language:
Pages:
1056
Printable:
Yes
Category:
SUV
Last updated / verified
Apr 9, 2026

Kia Manual Features & Content Preview

2004 Kia Sorento Automatic Transaxle Technical Documentation

  • Covers 2004 Kia Sorento 3.5L DOHC models equipped with an automatic transaxle system
  • Official publication providing diagnostic, repair, and component assembly specifications
  • Contains 175 technical illustrations, 12 component-specific exploded diagrams, and 18 system wiring schematics
  • 1056-page service document detailing hydraulic control, electrical sensor thresholds, and mechanical disassembly
  • Accessible from your device as soon as the order is placed
  • OCR text layer lets you jump to a torque spec by keyword
  • Laid out for standard letter and A4 printing
  • This is the definitive factory reference for the 2004 Kia Sorento transmission assembly, replacing earlier preliminary drafts with full production-level technical data.

Diagnostic and Repair Scope

This Kia Sorento 2004 service publication provides comprehensive documentation for the automatic transaxle system. The technical data covers engine-to-transmission coupling, hydraulic control systems, and complex electronic fault analysis. Key chapters include full component location diagrams, wiring schematics for the EC-AT control system, and diagnostic trouble code charts for precise identification of solenoid or sensor failures.

Specification and Reference Data

Detailed tables within this document outline tightening torque requirements, gear ratios for 4WD configurations, and electrical resistance values for output speed sensors and control solenoids. Maintenance schedules, fluid capacity limits, and tolerance charts are presented for both normal and severe operating conditions. Cylinder head bolt torque values are documented in a multi-stage sequence in the engine assembly data. Valve clearance for the intake is listed at 0.11–0.20 mm in the cylinder head specification table. Coolant system capacity for the 2004 Kia Sorento is documented at 2.73 liters. This factory workshop manual serves as the primary technical source for 3.5L DOHC Kia Sorento owners and workshop personnel.

Manual FAQ, Purchase & Download Details

Can I find the official document publication cues or edition markers in the manual? keyboard_arrow_down

Manual displays chapter references and header labels that identify the document as the 2004 Kia Sorento automatic transaxle service and wiring publication.

Which chapters contain technical information regarding automatic transmission fluid capacities and lubricant charts? keyboard_arrow_down

Specification tables located within the Automatic Transaxle System section cover fluid capacity limits for proper operation. These tables include capacity data for the transmission system and the transfer case.

What information regarding exploded views and parts illustrations is available in this document? keyboard_arrow_down

Manual contains detailed sections featuring special service tools and component illustrations for the transmission system. These diagrams provide visual references for various internal parts and assemblies. Users can navigate through these figures to view organized component breakdowns.
