2002–2011 Toro Workman 1100/1110/2100/2110 UTV Factory Service Manual (P/N 02110SL)

Toro's factory service manual covers the 2002–2011 Workman 1100, 1110, 2100, and 2110 utility vehicles. Publication P/N 02110SL, Rev. D, includes revisions through 2007.

Text search and diagram navigation: Service text is searchable, but some tables and drawing labels are not. Internal bookmarks cover chapters and individual procedures. Small wiring labels require zooming.

• Engine service: Engine removal and installation, starter/generator belt and throttle-cable adjustments, air-cleaner service, fuel-filter replacement, and spark-plug inspection.

• Clutch and transaxle repair: Drive-clutch disassembly, driven-clutch ramp-button replacement and spring-torsion checks, plus internal transaxle, differential, and axle-shaft service.

• Brake systems: Mechanical rear-brake service and hydraulic-brake procedures, including master-cylinder replacement and overhaul, front-caliper service, parking-brake adjustment, and bleeding.

• Steering and suspension: Steering gearbox overhauls, front wheel toe-in and ride-height adjustments, wheel-bearing service, and suspension A-arm and frame pivot yoke removal.

• Electrical troubleshooting: Starting and charging fault charts, voltage-regulator tests, starter/generator repair, accelerator-switch checks, and Workman 2100/2110 RPM shutdown-module testing.

This manual is written for service technicians and calls for qualified, authorized personnel to maintain, repair, adjust, or inspect the vehicle.

Engine Coverage and Repair Limits

The engine specifications identify the Briggs & Stratton 303440 V-twin for Workman 2100/2110 and the Kohler CH12 PA-941521 single-cylinder engine for Workman 1100/1110.

Engine coverage focuses on external service and removal/installation. The separately linked Briggs & Stratton V-twin repair manual and Kohler COMMAND PRO CS Series service manual are not included in this PDF. Routine maintenance schedules are referenced to the separate Operator's Manual.

Clutch, Transaxle, and Governor Variants

Beyond the engine bay, the manual breaks down the operation and repair of the variable clutch system. The Transaxle Service exploded view and assembly illustrations identify internal gear sets, differential components, and axle shaft assemblies.

Ground-speed checks distinguish transaxle-governed machines from engine-governed Workman 2100/2110 units above S/N 240000000. Shift-cable adjustments also distinguish levers with and without a neutral position.

Special tools include clutch remover TOR4094 and spider-removal kit TOR4098. The clutch repair instructions warn that uneven pressure on the cam towers during spider removal can damage them.

Brake and Chassis Repair by Model

Workman 1100/2100 have mechanically actuated rear brakes, with separate adjustment procedures below and above S/N 230000000. Workman 1110/2110 have hydraulic brakes; front-caliper service changes below and above S/N 240000000.

These distinctions help match brake components and repair procedures to the vehicle before disassembly.

Suspension coverage explains A-arm spring-rate differences and their relationship to ride-height settings. The Steering Gearbox component view shows the required Pitman arm and sector-gear alignment.

Observe the manual's vehicle-support and raised-bed precautions during chassis and drivetrain service.

Electrical Testing and Circuit Drawings

Starting Problems and General Run Problems charts connect symptoms with likely circuit or component faults. Component testing extends to two ignition-switch designs, the oil-pressure switch, diode assembly, battery, and starter/generator armature and field coils.

Electrical Schematics, Start Circuits, and Run Circuits drawings support fault tracing. Serial-specific main and engine harness drawings and wiring diagrams show connector locations, terminal assignments, and wire colors.

Starter/generator repair notes explain why emery cloth can cause short circuits between the commutator bars.

Specification and Reference Data

Fastener torque tables cover inch-series and metric hardware, with component-specific values throughout the repair sections. The service tables also provide fluid capacities, driven-clutch speed checks, brake wear limits, bearing installation dimensions, and electrical test specifications.

PDF Contents and Page Total

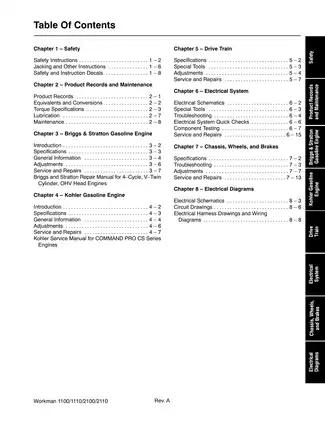

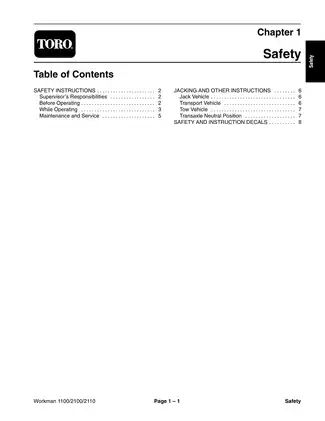

The manual is supplied as one printable, English-language 194-page PDF. That total includes one title/preface page, one general contents page, and eight intentionally blank pages; there are no separately supplied supplements.
