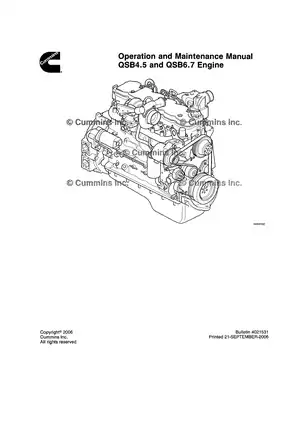

2006 Cummins QSB4.5 and QSB6.7 Diesel Engine Operation and Maintenance Manual (P/N 4021531)

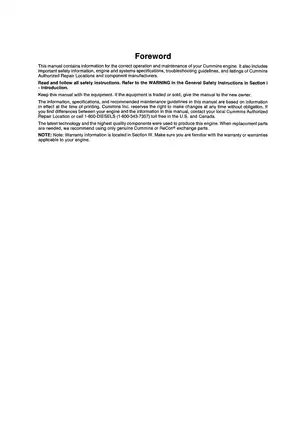

This operation and maintenance manual documents operational parameters and maintenance schedules for 2006 and later Cummins QSB4.5 and QSB6.7 diesel engines. Bulletin 4021531 was printed September 21, 2006.

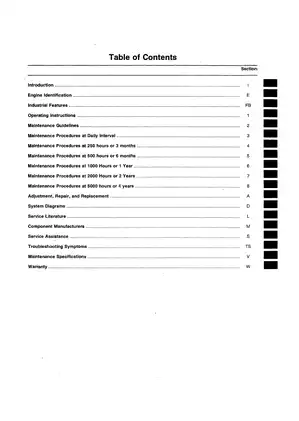

Text search and section navigation: Embedded OCR supports text searches, with occasional recognition errors. The Maintenance Specifications contents page is not searchable. There are 24 PDF bookmarks covering the main sections; small labels in electrical test illustrations benefit from zooming.

• Overhead and routine service: Valve-lash inspection and adjustment, oil and filter changes, fuel-water separator service, crankcase breather inspections, and air compressor maintenance checks.

• Cooling and charge air: Cooling-system flushing and refilling, coolant thermostat testing and replacement, plus charge-air cooler leak, temperature-differential, and pressure-differential tests.

• Starting and charging: Alternator circuit and output tests, alternator replacement, starting motor checks and replacement, and troubleshooting charts for electric and air starters.

• Belt drive and dampers: Cooling fan belt replacement, tensioner and fan hub inspection, fan spacer and pulley service, and rubber and viscous vibration damper checks.

• Electronic controls: Electronic Control Module (ECM) feature descriptions, Intermediate Speed Control (ISC), shutdown functions, fan control, and water-in-fuel sensor operation.

• Symptom diagnosis: Cause-and-correction charts for hard starting, low power, overheating, abnormal oil pressure, excessive smoke, and fuel-system complaints.

Owners and operators can use the operating and routine-maintenance sections; Cummins specifies trained, experienced technicians for troubleshooting.

Maintenance Guidelines and Engine Identification

This operation manual breaks down requirements by specific maintenance intervals, from daily checks through the 5,000-hour/four-year overhead service. A maintenance record form is included. Oil drain intervals vary with engine rating and lubricant classification; cold-weather guidance covers fuel, oil, coolant, and starting aids.

Engine identification includes the ESN, CPL, fuel injection pump dataplate, and ECM identification. The ESN-based oil-pan capacity lookup helps distinguish sump configurations before service. Overhead procedures separate four- and six-cylinder valve-check positions and cover rocker-cover and breather-connection variations.

Fuel Service and Cooling-System Checks

Fuel-filter replacement includes priming the low-pressure supply through the equipment manufacturer's priming device. The manual warns that pre-filling the on-engine filter can introduce debris and damage fuel-system components.

Thermostat coverage distinguishes versions with one or two vent check balls. A thermostat that physically fits but has the wrong configuration can cause improper temperatures and engine damage. Follow the manual's precautions for high-pressure fuel, hot coolant, and accidental starting.

Component Repair and Test Procedures

The Adjustment, Repair, and Replacement section distinguishes spool-, pad-, and hinge-mounted alternators. Starting motor coverage includes voltage-drop checks, pinion and flywheel ring-gear inspection, mounting-spacing measurements, and separate connection requirements for Cummins and non-Cummins starters.

Charge-air cooler leak and differential tests help separate leakage, airflow restrictions, and cooling problems when tracing low-boost complaints before repair. Tool references include barring tool 3824591, digital multimeters 3164488/3164489, and clamp-on current probe 3164490.

Industrial Features and ECM Behavior

Idle Shutdown, Hot Shutdown Monitor, Automatic Boost Power, and the Fuel Consumption Rate Logger are described with their operating conditions and interactions. Multiple Unit Synchronization covers soft-coupled, hard-coupled, and marine arrangements.

Feature availability depends on the equipment and ECM calibration. The text identifies functions configured through Cummins INSITE and explains how control settings can affect shutdown or perceived low-power complaints.

System Diagrams and Specification Data

Ten labeled engine views locate external components and service points. Fuel-system flow diagrams show layouts with an electric lift pump and routing differences for air-cooled and fuel-cooled ECMs. Additional diagrams trace the lubricating oil, cooling, air intake, and compressed air systems.

This document provides torque values for mounting brackets and drain plugs, fluid-level checks, operating temperature thresholds, and specifications for electrical and air-starting systems. Valve-lash settings and inspection limits, fan hub end play, oil and coolant capacities, and belt-tension data support the service procedures. Engine-only coolant capacities are separate from the equipment's total cooling-system capacity.

Repair Coverage and Separate Publications

Coverage centers on engine operation, maintenance, symptom troubleshooting, and selected component repair. Full rebuild procedures require Service Manual 4021271. Detailed CM850 electronic troubleshooting and the ECM wiring diagram are separate publications 4021416 and 4021524. These three publications are not included. Vehicle, vessel, and equipment maintenance are outside this manual's scope.

English PDF and Included Reference Pages

One printable 342-page PDF: 332 pages of manual content and reference sections, including internal blank and notes pages; one title page; two registration-card pages; four pages of original CD-ROM instructions; and three closing blank/notes pages. All are included in the total.
