Suzuki DF200/DF225/DF250 2004 Outboard Motor Service Manual

Suzuki service manual for the 2004 (K4) DF200, DF225, and DF250 four-stroke outboards, covering inspection, maintenance, troubleshooting, and overhaul of their main components.

Searchable Text and Wiring Diagram Detail

Search, bookmarks, and diagram labels: Service text is searchable throughout the technical sections. Embedded bookmarks open five broad document blocks rather than individual chapters. Small wire-color codes and connector labels in the main wiring diagrams require zooming; rotating these pages makes them easier to read.

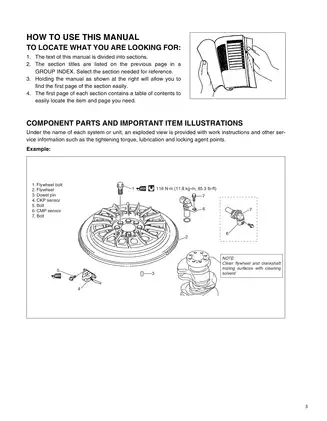

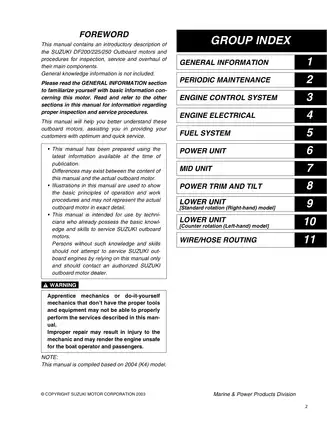

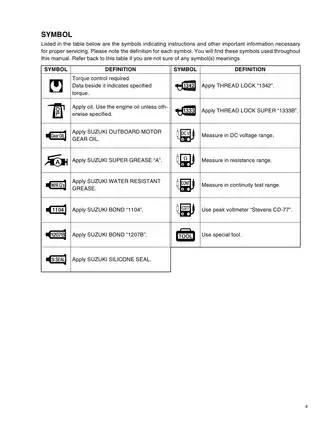

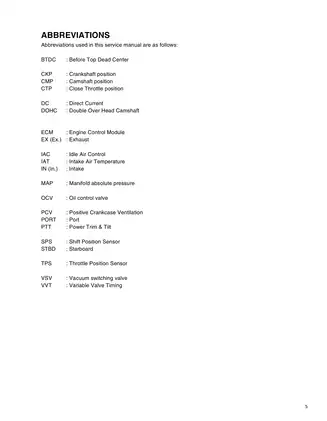

Supplied as one printable, English-language, 415-page PDF, including the front and back covers and four introductory pages within that total. Print individual service pages for bench reference.

Powerhead, EFI, and Lower-Unit Service

This selection of covered work highlights the main systems below. Additional maintenance topics include anode inspection and the oil-change reminder system.

• Maintenance and adjustment: Lubrication and ignition service, tappet adjustment, throttle-body synchronization, cylinder-compression testing, oil-pressure checks, and engine-vacuum inspection.

• EFI and electrical diagnosis: ECM circuit-voltage and resistance tables, sensor tests, self-diagnostic codes, caution-system operation, charging checks, and starter-system troubleshooting.

• Powerhead repair: Step-by-step power-unit removal, cylinder-head and valve service, crankcase disassembly, piston inspection, and timing-chain installation.

• Fuel-system service: Fuel-pressure and residual-pressure testing, vapor-separator disassembly, regulator checks, injector removal and installation, and evaporation-purge inspection.

• Lower-unit overhaul: Separate standard-rotation and counter-rotation procedures for gearcase disassembly, gear shimming, backlash checks, seal replacement, and water-pump service.

• Mid unit and power trim: Driveshaft housing, oil pan, and mounting-bracket service; PTT overhaul, air bleeding, motor inspection, and tilt-limit switch checks.

Written for technicians who already possess the basic knowledge and skills to service Suzuki outboards, with the proper tools and equipment; general mechanical instruction is not included.

ECM Tests and Model-Specific Controls

This manual gives marine technicians direct access to the factory data needed to maintain and troubleshoot these outboards. The on-board self-diagnostic code tables, ECM connector layouts, and circuit test data help trace reported faults to the relevant wiring and components.

The electrical section includes a starter-system troubleshooting flowchart and starter-motor inspection and assembly procedures. Separate DF200/DF225 and DF250 wiring diagrams show harness connections and wire-color codes.

Induction and valve timing: The DF200 uses single-stage induction; the DF225 and DF250 use multi-stage induction. VVT and oil control valve coverage applies to the DF250, with separate non-VVT timing-chain procedures for the DF200 and DF225.

O₂ feedback requirements: The manual explains system operation, but the fuel-mixture check requires Suzuki Diagnostic System software and hardware, plus a temporarily installed O₂ sensor. The operating procedure is referenced to the separate Suzuki Diagnostic System Operation Manual, which is not included.

Fuel Delivery and Internal Engine Repair

The Fuel System Diagram distinguishes the low- and high-pressure fuel paths. Vapor-separator procedures cover the float, needle valve, suction filter, and pressure regulator. The low-pressure fuel pump is tested and replaced as a complete unit.

Internal engine inspection includes camshaft-journal oil clearances, valve-train wear limits, cylinder and piston measurements, and crankshaft main-bearing selection using identification marks. Oil-pump disassembly and rotor-clearance checks extend the lubrication coverage; thermostat testing supports cooling-system diagnosis.

The VVT installation instructions warn that overtightening the intake camshaft sprocket bolts can damage the actuator.

Gearcase Setup and Trim Hydraulics

The two lower-unit chapters provide rotation-specific shimming procedures, tooth-contact illustrations, and propeller-shaft thrust-play checks. These distinctions help select the correct setup procedure for the gearcase being repaired. Incorrect tooth contact can chip the forward and pinion gears.

PTT hydraulic circuit drawings explain trim-up, tilt-down, shock absorption, and manual-release operation. Overhaul coverage includes cylinder, rod, seal, and shock-valve inspection, alongside PTT motor and relay tests.

Proper assembly requires adherence to the factory procedures and safety guidelines, particularly fuel-pressure precautions and support of the engine during PTT removal.

Compression and Intake-Clearance Examples

Compression testing: The manual gives a standard guideline of 1,100–1,700 kPa for a warmed engine tested at wide-open throttle, with a maximum difference of 100 kPa between cylinders. These figures are identified as guidelines rather than absolute service limits.

Valve adjustment: Cold intake tappet clearance is 0.23–0.27 mm. The maintenance section supplies the related shim-selection charts and adjustment procedures.
