1997–1999 Mercury OptiMax 200/225 DFI Outboard Service Manual (P/N 90-855348R02)

Mercury service manual P/N 90-855348R02, November 2002 edition, covers the 1997–1999 OptiMax 200 and 225 DFI outboards in serial range 0G386496–0G960499, with maintenance, diagnosis, and repair procedures for the powerhead and associated outboard systems.

• Powerhead repair: Removal, cylinder-block disassembly, piston and connecting-rod inspection, reed-block service, reassembly, and cylinder-head installation.

• Direct fuel injection: Vapor separator and fuel-rail service, injector removal, regulator and tracker-valve inspection, and reciprocating air-compressor disassembly and reassembly.

• Electrical diagnosis: ECM and ignition checks, alternator and starter repair, warning-system troubleshooting, and model-specific wiring diagrams.

• Cooling and lubrication: Thermostat testing, poppet-valve diagnosis, water-pump service, oil-injection priming, and replacement-powerhead break-in setup.

• Lower-unit overhaul: Standard- and counter-rotation gearcases, ratcheting and non-ratcheting shift-spool service, pinion shimming, and forward/reverse backlash adjustment.

• Power trim: Hydraulic fault isolation, up/down pressure testing, trim-cylinder and tilt-ram repair, motor testing, and system purging.

• Installation and steering: Transom mounting, shift/throttle cable setup, Dyna-Float suspension service, and Ride-Guide steering installation for single and dual outboards.

The overhaul and pressure-testing sections suit mechanics familiar with outboard service and equipped with the specified gauges, pullers, and shimming tools.

DFI Diagnosis and Oil-Injection Service

The fuel-rail sections explain the operating pressure differential and the tracker diaphragm’s role in absorbing pressure pulses. The Fuel Pressure and Air Pressure Troubleshooting Chart distinguishes combined pressure loss from fuel-only faults. Alongside the Air Compressor Flow Diagram, it helps narrow diagnosis to the compressor, regulators, tracker valve, or fuel-supply system.

Oil-system coverage includes the remote and engine-mounted reservoirs, the 1997 Model Oil Flow Schematic, and the distinction between priming and break-in activation. For 1998/1999 models, the oil warning responds to low reservoir level; pump malfunction or air in the supply hose does not trigger it. The electric oil pump is replaced as an assembly.

The priming section warns that running the fuel pumps dry during oil-system priming can damage them. Always review the recommended safety procedures and consider consulting a certified marine technician before servicing high-pressure fuel or ignition systems.

Ignition, Charging, and DDT Coverage

Electrical procedures cover ignition-module and electronic control module (ECM) removal, sensor checks, alternator circuitry tests, and starter cleaning and reassembly. The Starter Circuit Troubleshooting Flow Chart accompanies the circuit checks, with separate engine wiring diagrams for the earlier and later configurations.

The Digital Diagnostic Terminal (DDT) supports ECM-input monitoring and, on 1998/1999 models, cylinder-misfire and output-load tests. Complete DDT diagnostic procedures require the separate DDT Reference Manual; this publication includes model-specific troubleshooting charts and describes the limits of non-DDT checks.

Powerhead Inspection and Cooling-System Diagnosis

The powerhead chapter covers cylinder-bore honing and measurement, piston-ring fitting, crankshaft and bearing inspection, and connecting-rod cap alignment. Cylinder-head installation uses a torque-plus-angle procedure; separate fastening specifications identify ECM bolts and the propeller nut.

Maintenance schedules address lubrication points, anode replacement, spark-plug inspection, and storage. Cooling diagnosis covers thermostat operation, poppet-valve behavior, and water-pump condition. Component-location illustrations include the 1998/1999 Model 200/225 Powerhead Port View.

Gearcase, Power Trim, and Steering Work

Serial-specific gearcase illustrations distinguish the ratcheting and non-ratcheting arrangements. Gear-location checks identify Pinion Gear Shimming Tool 91-12349A2, with separate procedures for right- and left-hand operation and related lubricant-capacity data.

Power trim: Hydraulic and electrical fault charts accompany the V6 Power Trim Diagrams, trim-cylinder seal work, and tilt-ram repair. The priming notes warn that operating the trim motor before the pump is primed can cause drive-shaft failure.

Ride-Guide steering: Installation sections distinguish single-cable, dual-cable/single-outboard, and dual-outboard arrangements, including mounting tubes, link rods, and extension couplers.

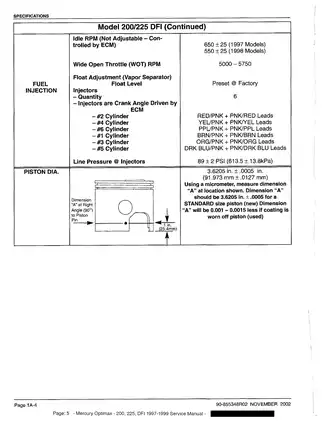

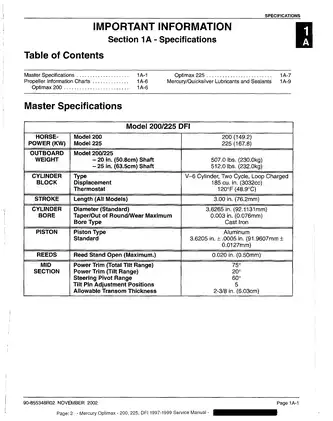

Examples of Coil, Compression, and Lubricant Data

The following figures are a small sample of the manual’s electrical and mechanical reference data.

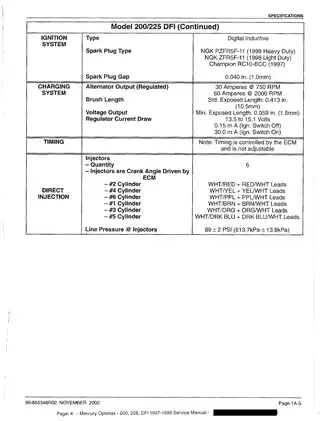

For 1998/1999 ignition coils, the resistance table specifies 0.38–0.78 ohm between the primary and ground terminals and 8.1–8.9 kilohms between the high-voltage tower and ground.

Normal compression is listed as 90–110 psi with the engine block warm, throttle fully open, all spark plugs removed, and a fully charged battery. Gearcase lubrication data give a maximum capacity of 28.0 fl. oz. (828 ml).

Text Search, Diagram Detail, and PDF Contents

Search and diagram detail: An OCR text layer supports searching much of the manual, but some tables, illustrations, and repair pages have no searchable text. There are no embedded PDF bookmarks. Small wiring labels require zooming; some dense lettering in the 1997 engine diagram remains blurred. Several diagram pages also require rotation.

The download is one English-language, printable 725-page PDF, comprising one cover page and 724 service-manual pages. The steering-attachment section is included in this total.
