2000–2002 Mercury OptiMax 200 hp / 225 hp DFI Outboard Service Manual (P/N 90-859769R1)

• Mercury Marine Manual No. 90-859769R1, Revision 1, dated December 2000; 742 PDF pages across 22 files covering the factory sections from master specifications through color diagrams.
• Coverage centers on 200 and 225 OptiMax DFI, model years 2000 and 2001, with the 60-degree V-6 direct-injected powerhead and all shaft-length configurations listed in this edition.
• DFI diagnosis and repair includes Digital Diagnostic Terminal use, ECM and ignition inputs, vapor-separator service, fuel rails, regulators, tracker valve, direct-injector testing, and air-compressor pressure testing and overhaul.
• Powerhead work runs from removal and internal disassembly through cylinder, piston, crankshaft, bearing, reed-block, connecting-rod, and cylinder-head inspection, followed by reassembly, installation, cable setup, and break-in.
• Both Showa Design I and Oildyne Design II power-trim systems receive hydraulic and electrical troubleshooting, pressure testing, fill-and-purge procedures, ram and seal repair, motor/pump service, and trim-sender checks.
• Lower-unit coverage separates right-hand standard-rotation and left-hand counter-rotation non-ratcheting gear housings, including teardown, bearing and gear inspection, pinion-location and backlash setup, bearing preload, water-pump service, sealing, and final installation.

Model-Year Electrical and DFI Diagnosis

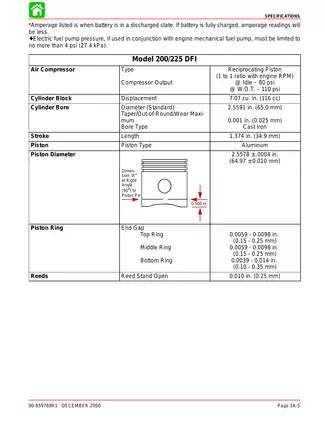

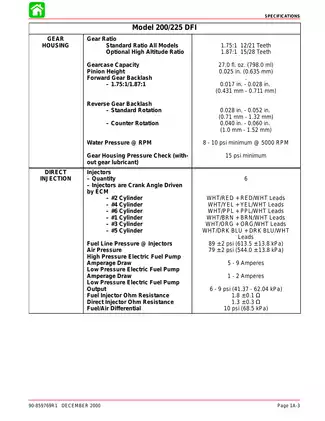

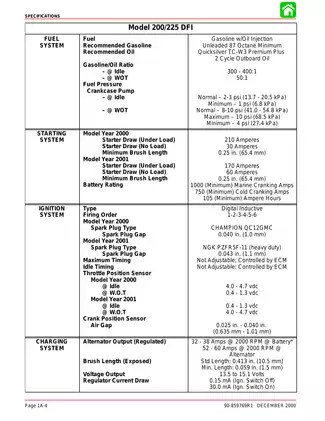

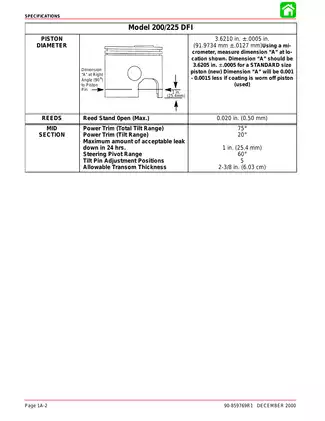

The master specifications identify the covered engine as a 3.0-liter, 185.9 cu. in. (3047 cc), 60-degree V-6 two-cycle direct-injected outboard and list 20-, 25-, and 30-inch shaft applications. Coverage is limited to the 2000 and 2001 configurations documented in this revision; it should not be purchased as a 2002-specific manual.

The two model years are handled as distinct service configurations. Electrical chapters separate their component locations, fuse assignments, crank-position-sensor and flywheel arrangements, throttle-position-sensor data, starter systems, warning instrumentation, and SmartCraft connections. The 2000 starter has its own centrifugal-Bendix service chapter, while the 2001 unit receives separate solenoid-driven-Bendix procedures and slave-solenoid diagnosis. The 2001 wiring material also identifies a compressor-temperature-sender circuit change at S/N 0T280000 / 0T280001, including the added tan lead used with an analog temperature gauge.

Section 2A covers fault isolation with and without the Digital Diagnostic Terminal, DDT function references, a dedicated DFI troubleshooting guide, harness-connector handling, and removal and installation of the ECM, ignition module, crank position sensor, and TPS. Special-tool callouts include the DDT 91-823686A2, dual fuel/air pressure gauge 91-852087A1/A2/A3, direct-injector seal installation and sizing tools 91-851980 and 91-851980-1, and power-trim test gauge kit 91-52915A6.

Major Repair Sections and Factory Reference Data

The mechanical chapters document full powerhead repair rather than stopping at external service. Separate 2000 and 2001 cylinder-block and end-cap illustrations support teardown and rebuild work, along with torque sequences, piston and ring combinations, crankshaft and bearing inspection, reed-block service, thermostats, and final operational setup. One model-specific repair trap is stated plainly: 2000 and 2001 225 cylinder heads are not interchangeable because the combustion-chamber configuration and ECM calibration changed. The DFI section also warns that an internal air-compressor failure can spread metal debris through hoses, rails, and injectors, causing poor performance or powerhead damage if the related components are not inspected.

The midsection and lower-unit chapters are written for repair work, not just parts identification. The two trim designs have separate hydraulic circuits, troubleshooting charts, pressure checks, disassembly, electrical tests, priming, and sender procedures. Standard- and counter-rotation gear housings have their own exploded assemblies, special-tool lists, gear-location and backlash work, bearing-carrier service, propeller-shaft procedures, pressure testing, and installation data.

Diagram support includes the 2000 analog engine wiring diagram, 2000 digital engine wiring diagram, 2001 engine wiring diagram, Typical SmartCraft CAN Installation, Fuel & Air Flow Diagram, and Water Flow Diagram. Section 2D adds power-trim, instrument, lanyard-stop, oil-level, QSI-gauge, synchronizer, warning-system, and Guardian-system wiring references.

Routine workshop coverage includes inspection and maintenance schedules, cooling-system flushing, fuel and compressor-air filter service, lubrication, storage preparation, propeller charts, transom installation, steering and control linkage, shift/throttle cable setup, oil-system priming and purging, and dual-outboard arrangements. Related reference tables provide component-specific torque data, pressure-test specifications, wear and clearance limits, electrical test values, and adjustment information. Because the DFI rails retain pressurized fuel and air, follow the manual’s pressure-relief, battery-isolation, and hot-component warnings before fuel-system repair or exposed electrical testing.
