Mercury Mariner 135/150 OptiMax 1998–1999 Service Manual (P/N 90-855347R1)
490 Pages • 1 Printable PDF (English) • Download

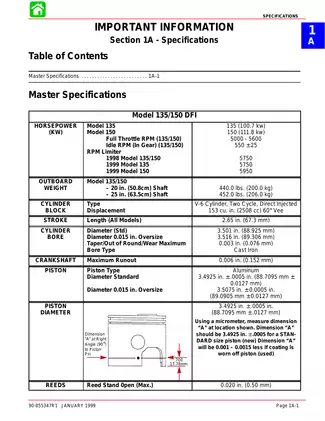

Mercury Models Covered & Key Technical Specifications
Models: Mariner 135 OptiMax, Mariner 150 OptiMax
Sub-models / Variants: Direct Fuel Injection (DFI); right-hand non-ratcheting (standard rotation) and left-hand non-ratcheting (counterrotation) gear housings
Model Years: 1998–1999
Serial Numbers: OG590000 and Above
Procedure-specific serial break: Oil hose check valve installation — 1998 Model 135/150 DFI Outboards, SN 0G886266 and Below
-
Engine type: V-6, two-cycle, direct-injected
-
Displacement: 153 cu. in. (2508 cc)
-
Horsepower: 135 HP (100.7 kW) / 150 HP (111.8 kW)
-
Full throttle RPM range: 5000–5600 RPM
-
Idle speed (in gear): 550 ± 25 RPM
-
Fuel pressure: 89 ± 2 psi (10 psi fuel/air differential)
-
Spark plug gap: 0.040 in. (1.0 mm)
-
Cylinder head bolt torque: 30 lb-ft (41 N·m) plus 90° turn
-
Gearcase capacity: 22.5 fl. oz. (665.4 ml)
Mercury Manual Features & Selected Content Preview
Mercury Marine Service Manual P/N 90-855347R1, January 1999, covers 1998–1999 Mercury and Mariner 135/150 OptiMax DFI outboards with S/N OG590000 and Above, including the 60-degree powerhead and standard- and counterrotation gearcases.
Searchable PDF and Wiring Diagram Detail
Text search and diagram readability: The PDF has searchable text. Embedded bookmarks cover the opening pages, not the technical chapters. Small wiring labels require magnification; some pin numerals in the ECM connector-face drawings overlap and remain unreadable even when enlarged.

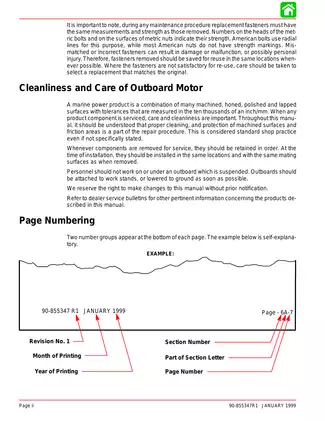

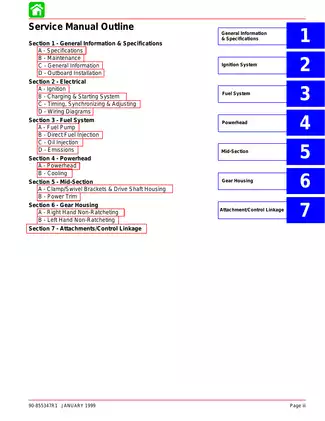

One printable English PDF contains 490 pages, including the cover, three introductory pages, and four notes pages.
DFI Systems, Powerhead Repair, and Gearcase Overhaul
The following selected coverage highlights outline the main service areas. Additional topics include compression checks and painting procedures.
-
DFI fuel and air systems: Crankcase pulse fuel-pump testing and repair, vapor-separator service, electric pump tests, fuel-rail and injector work, regulator and tracker-valve service, and air-compressor disassembly/reassembly.
-
Oil injection: Oil-pump removal and installation, priming, hose routing, reservoir service, air purging, warning-system checks, and troubleshooting.
-
ECM, ignition, and starting diagnosis: DDT functions, sensor and injector checks, TPS monitoring, charging-system circuit tests, alternator repair, starter overhaul, warning signals, and multi-function gauge testing.
-
Powerhead and cooling repair: Step-by-step powerhead removal, disassembly, inspection, and reassembly procedures cover crankshaft, piston, connecting-rod, reed-block, and cylinder-head work, plus break-in, thermostat testing, water-pressure checks, and cooling diagnosis.
-
Midsection and power trim: Clamp/swivel brackets, driveshaft housing, Dyna-Float suspension, hydraulic and electrical troubleshooting, trim-rod and tilt-ram repair, motor service, and fill/purge procedures.
-
Standard- and counterrotation gearcases: Separate right-hand and left-hand non-ratcheting overhaul sections cover water pumps, bearing carriers, propeller and driveshaft assemblies, clutch components, pinion depth, and gear backlash.
-
Factory diagrams and test aids: Labeled powerhead views accompany the 1998 and 1999 DFI Wiring Diagrams, Starter Circuit Troubleshooting Flow Chart, Air Compressor Flow Diagram, and separate 1998/1999 and 1999½ Water Flow Diagrams.

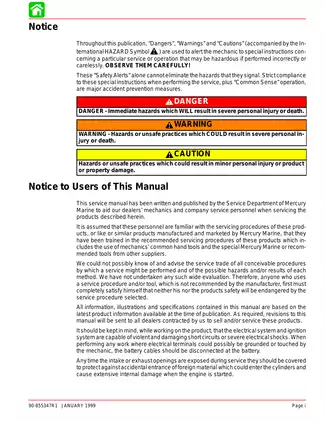

Mercury wrote this manual for dealer mechanics and company service personnel, assuming familiarity with similar outboards, trained service procedures, and access to common and specified special tools.
DFI Diagnosis and DDT Requirements
The symptom-based DFI guide and fuel/air pressure troubleshooting chart help distinguish electrical, fuel-supply, regulator, and compressor faults during no-start or rough-running diagnosis.
DDT material covers live sensor and ECM data, status switches, fault and run history, cylinder-misfire isolation, component output-load tests, oil-pump prime, and break-in status. Complete DDT diagnostic procedures are referenced to the separate DDT Reference Manual 90-825159-3, which is not included.
Non-DDT sensor diagnosis is limited mainly to resistance checks. The throttle position sensors are not adjustable; their readings are monitored through the ECM with the DDT. Idle speed is also not adjustable.
Early OptiMax Variants and Repair Limits
The oil-injection chapter covers check-valve kit 21-858945A2 for 1998 135/150 DFI outboards through S/N 0G886266. The cooling diagrams distinguish the original flow path from the 1999½ arrangement, including revised routing from the air compressor through the fuel cooler.
Air-compressor service includes internal inspection and reassembly, but a scored cylinder bore requires replacement of the compressor assembly. Pistons and rings, and connecting rods and bearings, are supplied as assemblies rather than individual parts.
Installation and Routine Service
Installation coverage addresses lifting, transom mounting, single- and dual-engine rigging, remote harnesses, gauges, and shift/throttle cable setup. It also documents fuel-system filling, oil-system priming, trim-in and trim-tab adjustment, and Ride Guide steering arrangements.
Routine-service material covers scheduled maintenance, cooling-system flushing, component inspections, gearcase lubrication, storage preparation, and post-submersion service.
Workshop Tools and Repair Cautions
Named tools include the Digital Diagnostic Terminal 91-823686A2, dual fuel/air pressure gauge 91-852087A1/A2, power-trim test gauge kit 91-52915A6, and pinion locating gear tool 91-12349A2. These references help assess the equipment needed for a planned repair.
The power-trim gauge tests check system pressures after repair; they do not locate the original fault. Factory tables also provide component torque sequences, inspection limits, electrical test values, and adjustment data. Spark-plug references distinguish NGK PZFR5F-11 from the listed light-duty alternatives.
The DFI air and fuel circuits retain pressure, so the manual’s bleed-down precautions apply before components are opened. Blocked exhaust-cooling dump holes can melt the tuner pipe and damage bearing-carrier prop-shaft seals. Incorrect shim locations, gear depth, or backlash can cause noisy operation and premature gear failure.
Examples of Injector and Oil-Pump Test Specifications
Injector resistance specifications are 1.7–1.9 ohms for fuel injectors and 1.0–1.6 ohms for direct injectors, measured across the terminal pins with the injector leads disconnected.
Oil-pump delivery during the DDT auto-prime period is specified as 110 ml (cc) ± 8 ml (cc). The output check uses a full onboard reservoir, released remote-tank pressure, and a stopped engine.
