1997 Mercury 225, 225 EFI, 250 EFI, 3.0 Litre Marathon & SeaPro Outboard Service Manual (P/N 90-822900R3)

Mercury Marine service manual P/N 90-822900R3, dated December 1997, covers the 1997 Mercury 225, 225 EFI, 250 EFI, 3.0 Litre Marathon, and 3.0 Litre SeaPro outboards. The cover identifies U.S. serial numbers 0D280813 and above, with component-specific serial breaks throughout the service sections.

Searchable PDF and Wiring Diagram Detail

Text search and diagram access: The PDF has searchable text and embedded bookmarks for the main sections and many individual procedures. Small wiring labels require zooming. On some large EFI wiring diagrams, the numbered component legend is clipped along the left edge.

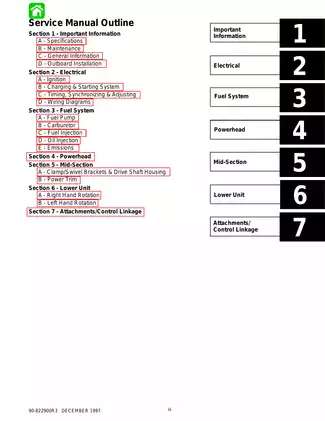

One printable PDF contains 639 pages total, including the cover, preliminary pages, section dividers, and Notes pages.

Powerhead, Fuel-System and Lower-Unit Service

These selected topics outline the main workshop coverage; the manual also includes submerged-engine recovery guidance and Commander 2000 key-switch testing.

• Powerhead repair: Step-by-step removal, disassembly, cylinder and piston inspection, crankshaft service, reed-block inspection, reassembly, and installation procedures.

• Carburetor service: WMH and WMV fuel-circuit descriptions, jet-placement charts, float adjustment, carburetor synchronization, enrichment-system testing, and removal and installation.

• EFI diagnosis: Low- and high-pressure fuel troubleshooting, vapor-separator tests, pressure-regulator checks, injector-harness testing, and sensor diagnosis.

• Ignition and charging: CDM troubleshooting flowcharts, stator and ECM DVA tests, ignition timing, alternator repair, and starter-motor inspection.

• Mid-section and power trim: Clamp and swivel brackets, drive shaft housing, square- and round-motor trim systems, hydraulic testing, seal repair, and priming.

• Lower units and steering: Standard- and counter-rotation gear housing overhaul, water-pump service, shift-spool inspection, backlash adjustment, and Ride Guide steering installation.

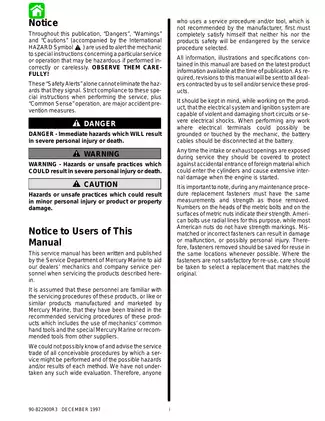

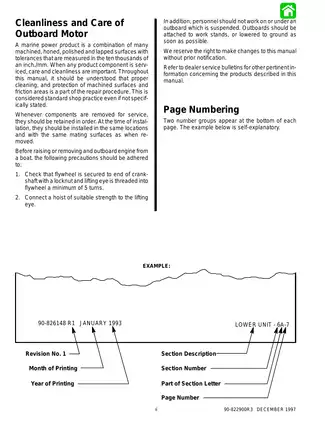

Written for Mercury dealer mechanics and service personnel, this manual assumes familiarity with outboard servicing and the use of standard and specialized service tools.

Fuel Delivery and Electrical Fault Isolation

The fuel and electrical sections support both routine maintenance and bench repair. Their linked tests help distinguish fuel-supply problems from ignition or EFI electrical faults before components are replaced.

Carburetors and oil injection: The High Altitude Jet Chart and cylinder-specific jet-placement information distinguish WMH and WMV arrangements. Oil-injection coverage includes pump removal, worm-bushing service, bleeding, linkage synchronization, output testing, and warning-system troubleshooting.

EFI testing: The Fuel Flow Diagram and separate low- and high-pressure troubleshooting charts trace delivery through the pulse pump, filters, vapor separator, electric pump, regulator, and injectors. Injector operation testing requires the Digital Diagnostic Terminal; the manual refers to the terminal’s separate instructions for test setup.

Stator diagnostics, crank-position and throttle-position sensor checks, charging-system troubleshooting, and the Starter Circuit Troubleshooting Flow Chart support electrical fault tracing. A shorted stop diode in one CDM can prevent at least two other modules from sparking, so multiple missing sparks do not necessarily indicate multiple failed modules.

Working on marine fuel systems and high-voltage ignition components requires strict adherence to factory safety protocols to prevent injury or equipment damage.

Powerhead Overhaul and Bleed-System Differences

The powerhead chapter goes beyond removal and installation. It includes cylinder-bore inspection and honing information, piston and ring checks, crankshaft-bearing inspection, connecting-rod assembly, thermostat testing, and component-specific torque sequences.

Bleed Hose Flow Diagrams distinguish carbureted and EFI layouts across the serial breaks. EFI illustrations also identify fuel ECM 830046-4 for the 225 EFI and 830046-5 for the 250 EFI, followed by 830046-7 and 830046-8 respectively in the later routing arrangement.

Removing the oil-pump drive gear requires removal of the lower crankshaft ball bearing, which normally damages the bearing and requires replacement.

Trim Hydraulics, Gear Housings and Installation

Power-trim coverage separates square- and round-motor designs, with hydraulic circuit illustrations, electrical troubleshooting, pressure testing, motor repair, and system priming. The Power Trim Wiring Diagram complements the circuit tests.

Lower-unit chapters cover both rotation directions and both ratcheting designs. Procedures include bearing-carrier service, water-pump impeller replacement, shift-spool assembly, pinion-depth checks, bearing preload, and forward and reverse backlash adjustment.

Outboard installation, control-cable adjustment, clamp and swivel brackets, and single- and dual-outboard steering arrangements are also covered. The emissions section explains exhaust-emission principles and certification information.

Examples of Ignition and Mechanical Specifications

Spark-plug specifications distinguish NGK BPZ8H-N-10 at 0.040 in. (1.0 mm) for 3 Litre Work/225 Carb serial numbers 0D280813–0G437999 from Champion QL77CC at 0.035 in. (0.889 mm) for the EFI models and later carbureted engines from 0G438000.

Compression specifications call for 90–110 psi with a fully charged battery, throttle shutters wide open, and the cylinder block warm. The crank-position sensor resistance specification is 1100 ±200 ohms.

Gear housing lubricant capacity is 28 fl. oz. (828 ml). Fastener specifications include 55 lb. ft. (74.5 N·m) for the propeller nut and 125 lb. ft. (169.5 N·m) for the flywheel nut.
