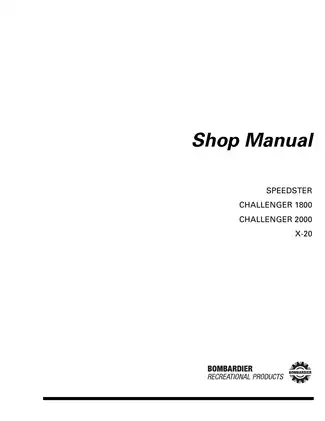

Sea-Doo Speedster, Challenger 1800/2000 & X-20 — 2002 Shop Manual (P/N 219 100 162)

Bombardier’s 2002 Sea-Doo Sport Boat Shop Manual, P/N 219 100 162, covers boat-side service and repair for the Speedster, Challenger 1800, Challenger 2000, and X-20.

Searchable Text and Large-Format Wiring

Text search, bookmarks, and diagram detail: Main service text supports PDF text search; the outer covers and wiring-diagram labels do not. Embedded bookmarks are only partly usable: many point to separate section files, and several section links return to the cover. Small wiring labels are readable when enlarged.

One printable English PDF contains 117 pages, including 105 pages of technical sections and wiring, 10 front-matter pages, and two outer cover pages.

Exhaust, Fuel, Steering, and Hull Service

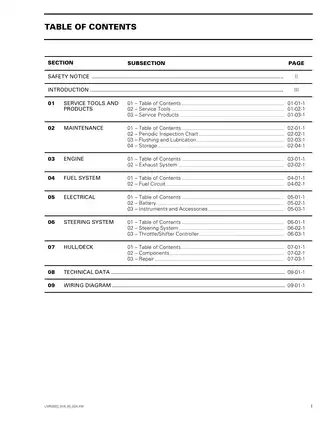

The following selected topics outline the coverage rather than reproduce the complete contents; decal replacement and windshield care are further examples.

• Exhaust system: Model-specific exploded views and step-by-step procedures for muffler and exhaust-outlet removal and installation.

• Fuel circuit: Baffle pickup removal, filter inspection, fuel-line and vent-valve service, and fuel-system pressure testing after repairs.

• Battery and instruments: Battery troubleshooting, unloaded and loaded testing, charging guidance, fuel-sender resistance checks, and speed-sensor verification.

• Steering and controls: Steering diagnosis, cable replacement, helm replacement, low-speed steering control work, and throttle/shifter controller service.

• Hull and deck: Engine-cover and latch work, drain-tube replacement, scupper-valve service, seating removal, ski-post repair, and fiberglass/gelcoat repair procedures.

• Wiring documentation: A boat wiring diagram with wire identification, connector positions, splice references, and wire-color codes.

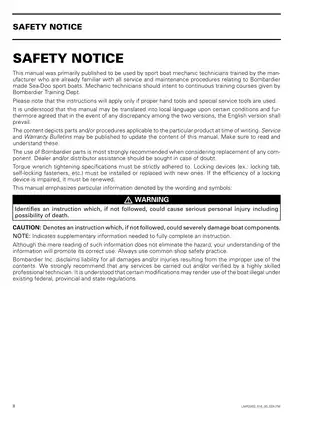

Written primarily for manufacturer-trained sport boat mechanic technicians already familiar with Sea-Doo service and maintenance procedures and equipped with the specified tools.

Engine Installations and Coverage Limits

The Exhaust System drawings distinguish 240 EFI, 240 EFI Plus, and 250 Optimax installations. Their model labels and component layouts help match the boat’s configuration before selecting the applicable exhaust, fuel, or steering information. References to 210 engines occur in the fuel-circuit and steering sections.

The Engine section centers on exhaust service. Internal engine and jet-pump overhaul require the separate Mercury M2 Jet Drive Service Manual, which is not included. Complete cooling-system flushing, steering alignment, and engine-side throttle/shifter adjustments also refer to Mercury documentation.

Technical Data identifies Mercury Marine Sport Jet propulsion, with axial-flow single-stage pumps for the Speedster and Challenger models and mixed-flow single-stage pumps for the X-20. It also supplies capacity, dimension, electrical, and equipment-reference tables.

Maintenance and Storage

The Periodic Inspection Chart distinguishes first-10-hour, 25-hour, 50-hour, and 100-hour/pre-season service, operator versus dealer responsibilities, and special salt-water/foul-water intervals.

Storage guidance covers boat cleaning, battery care, anticorrosion treatment, and engine-compartment ventilation. Engine and jet-pump storage procedures are referred to the separate Mercury manuals.

Fuel-System Testing and Electrical Diagnosis

Fuel repairs: Fuel Circuit layouts show the pickup, supply, return, and vent connections. Procedures address the integrated fuel sensor, pickup filter, filler-neck hose, clamp positioning, and vent-valve orientation. The pressure-test instructions identify pump gauge tester P/N 529 021 800 from engine leak tester kit P/N 295 500 352.

Battery and gauges: Battery troubleshooting separates connection problems and battery faults from charging-system faults referred to Mercury documentation. The fuel-level/resistance chart supports sender diagnosis, while the paddle-wheel speed-sensor check verifies its changing output. The service-tool list specifies digital multimeter P/N 529 035 868.

The Wiring Diagram section explains W-number wire identification, C/S connector and splice designations, connector positions, and main/tracer colors for circuit tracing.

Fuel-system and battery work require the manual’s ventilation and electrical-isolation precautions because fuel or electrolyte vapors can ignite.

Steering, Helm, and Throttle/Shifter Controls

Steering System exploded views support cable and helm work. Inspection procedures distinguish cable resistance from helm faults; the helm is replaced as an assembly rather than internally rebuilt.

The manual recommends steering wheel puller P/N 295 000 161 and warns that hammering on the shaft can cause damage. The controller section covers cable attachment, lubrication, lever friction, and shifter-lock adjustment, supported by a Throttle/Shifter Controller assembly view.

The LSC sensor/actuator adjustment passage is specifically labeled for Optimax-powered Utopia models; it should not be read as a general adjustment procedure for every listed boat.

Deck Components and Fiberglass Repair

Hull/deck procedures include bumper replacement, engine-cover gas shocks and latch adjustment, bilge/deck drain servicing, seat/backrest removal, and Speedster ski-post disassembly and inspection. The Bilge Pump/Deck Drain and Water Bypass System Outlets Location illustration identifies the separate outlets.

Bumper-rail drilling can damage the hull or engine-compartment resonators; an incorrectly assembled scupper valve can allow water ingress.

The repair section addresses air bubbles, blisters, minor gelcoat fractures, and compound fractures, with tools, materials, and laminate-repair guidance. It supports damage assessment but does not replace a complete fiberglass and gelcoat repair manual. Exhaust-outlet service separately identifies tool P/N 295 000 132.

Examples of Fuel-Test and Battery Reference Data

The fuel-system leak-test specification is 34 kPa (5 PSI), maintained for 10 minutes with the tank quite full; the manual expressly prohibits exceeding that pressure.

Battery reference data identifies 12.6 Vdc as a fully charged unloaded reading. Technical Data also lists an 1800 RPM low-speed setting; the cable-adjustment section specifies an in-water check with the engine at operating temperature.
