2002 Mercury Marine 250 OptiMax Jet Drive Service & Repair Manual (P/N 90-888438)

This Mercury Marine service manual covers the 2002 250 OptiMax Jet Drive, serial numbers 0E407100 and higher, including the V-6 DFI powerhead and jet pump. Document 90-888438, June 2002.

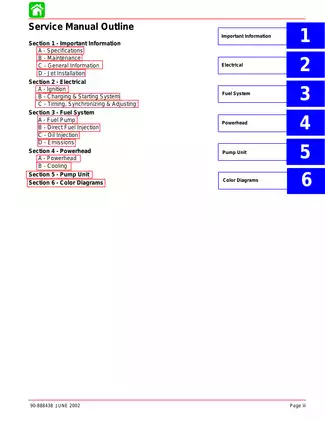

• Powerhead repair: Engine removal, internal disassembly, cylinder inspection, crankshaft and piston service, reed-block inspection, and reassembly with torque sequences.

• Fuel and air systems: Fuel-pump pressure tests, Vapor Separator Tank service, injector testing, fuel-rail repair, and Air Compressor disassembly.

• Electrical troubleshooting: Ignition-coil and sensor tests, alternator circuit diagnosis, starter overhaul, and Digital Diagnostic Terminal function charts.

• Lubrication and cooling: Oil-pump output testing, reservoir air purging, low-oil troubleshooting, cooling-system flushing, and water-pressure diagnosis.

• Jet pump overhaul: Stator, impeller and Wear Ring inspection, shaft-bearing replacement, pinion gear shimming, and backlash adjustment.

• Installation and rigging: Hull-opening requirements, exhaust-system layout, harness connections, and throttle, shift and steering cable adjustments.

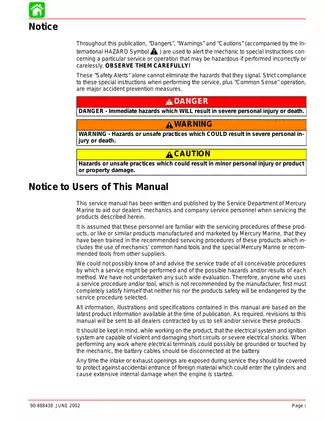

Written for dealer mechanics and Mercury Marine service personnel, this manual assumes prior service training and familiarity with the specified workshop tools.

DFI Diagnosis and Fuel-System Repair

Pressure troubleshooting separates faults affecting both fuel and air pressure from fuel-side problems with normal air pressure. The charts connect these patterns to the compressor, pumps, Fuel Pressure Regulator, Air Pressure Regulator and Tracker Valve, helping narrow the cause before parts are replaced.

Injectors and fuel delivery: Vapor Separator Tank (VST) disassembly and fuel-rail cleaning accompany direct injector leak tests. Injector seal installation and sizing tools 91-851980 and 91-851980-1 are identified. The electric fuel lift pump has no serviceable internal parts; its coverage centers on diagnosis, replacement and filter service.

Air Compressor: Reed, piston and end-cap work is illustrated, with assembly replacement required for a scored compressor bore. The manual warns that metal debris from an internal compressor failure can contaminate the air hoses, fuel rails and injectors, leading to powerhead failure.

Fuel-system sections include pressure-release precautions and warnings about residual fuel and fire hazards during component removal.

Ignition, Charging and DDT Coverage

Electronic Control Module (ECM) inputs, ignition coils, the Throttle Position Sensor (TPS) and Crank Position Sensor receive component-specific diagnostic coverage. Alternator circuitry tests and starter overhaul procedures supplement the Starter Circuit Troubleshooting Flow Chart.

Digital Diagnostic Terminal (DDT) charts identify fault-history, cylinder-misfire and output-load-test functions. Complete DDT diagnostic procedures are referenced to a separate DDT Reference Manual, which is not included in this PDF.

Ignition timing, idle speed and TPS settings are not adjustable. The manual distinguishes these ECM-controlled functions from the mechanical throttle-cam and cable adjustments it describes.

Powerhead, Oil Injection and Cooling

Internal repair includes cylinder honing, piston and ring inspection, connecting-rod checks and crankshaft-bearing service. Port and starboard piston identification, matched connecting-rod caps and assembly torque sequences are addressed.

Oil-system coverage distinguishes pump priming from reservoir air purging and explains Engine Guardian low-oil warnings. Cooling diagnosis covers the Water Pressure Relief Valve, pressure-sensor readings and flow through the cylinder heads, compressor and fuel cooler.

Maintenance schedules pair 10- and 50-hour checks with monthly limits, and 100-hour service with seasonal limits. Storage preparation and corrosion protection are also covered.

Jet Pump Service and Installation Details

The Stator Assembly, Wear Ring and impeller sections provide inspection criteria and impeller-to-wear-ring clearances. Drive-housing repair extends to shaft bearings and seals. Shimming instructions identify which replacement components require pinion and backlash checks and specify the Pinion Gear Location Tool 91-882758.

For rigging and repowers, the installation section covers tunnel dimensions, hull openings and exhaust alignment. Steering-helm requirements, Reverse Gate adjustment, bilge-siphon routing and trim-plate setup accompany the cable and harness instructions.

Separate wiring layouts cover the SmartCraft System Monitor and non-SmartCraft dash installations. Engine Wiring, Fuel & Air Flow, Water Flow and Air Compressor Flow diagrams support circuit and passage tracing, alongside drive-housing exploded views.

A Preview of Bore Limits and Regulator Draw

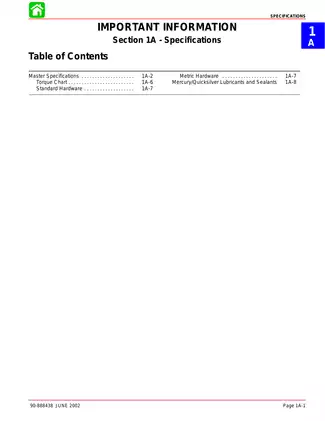

These examples are a small selection of the manual’s dimensional and electrical specifications.

The powerhead tables list a standard cylinder-bore diameter of 3.6265 in. (92.1131 mm), with a maximum taper, out-of-round or wear limit of 0.003 in. (0.076 mm).

The charging-system specifications list regulator current draw of 0.15 mA with the ignition switched off. This is a component-specific reference for checking key-off current, rather than a specification for the boat’s total electrical draw.

PDF Navigation, Diagram Detail and Page Count

Text search and diagram access: The service chapters have searchable text and embedded bookmarks, including navigation to the color-diagram section. Small connector numbers and wire markings in the wide wiring diagrams need zooming. Some flow-diagram callout numbers are not searchable.

Supplied as one printable, English-language, 386-page PDF. That total already includes the cover, three introductory pages and eight Notes pages.
