2000–2003 Ducati ST2 USA Parts Catalog Set (P/N 915.1.046.1F)

This 2000–2003 Ducati ST2 USA parts catalog set maps out the engine, chassis, and electrical assemblies of the Sportouring series. It contains Ducati publications 915.1.046.1C (2000), 915.1.046.1D (2001), 915.1.046.1E (2002), and 915.1.046.1F (2003, issued June 2002).

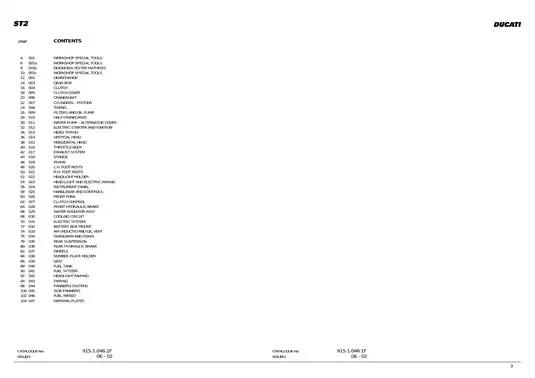

Parts search and navigation: Parts descriptions and numbers are searchable in all four PDFs. Cover lettering in the 2001–2003 files is not searchable, and none of the files has embedded PDF bookmarks.

• Engine and timing: Exploded views of the crankshaft, cylinders, pistons, cylinder heads, timing drive, and oil pump, with bearings, seals, and shim listings.

• Clutch and transmission: Dry clutch assembly, hydraulic clutch control, six-speed gearbox, gear selector, and chain-drive components identified by part number and quantity.

• Fuel and cooling: Throttle body, fuel injection, fuel pump and regulator, radiator, thermostat, and water-pump components, including associated hoses and seals.

• Chassis and brakes: Showa front fork, rear suspension linkage, swingarm, wheels, and Brembo brake assemblies, with separate listings for mounting hardware.

• Electrical assemblies: Starter motor, alternator, injection control unit, instrument panel, and wiring harness layouts for identifying replacement components.

• Bodywork and equipment: Frame, fairings, panniers and mounts, plus illustrated workshop tools and Mathesis diagnostic tester accessories.

The set is suited to mechanics and experienced owners who can interpret exploded views and need factory part numbers when planning a repair.

Engine Parts and Variant Selection

Clutch components: Drawing 004 separates the clutch pack, drum, pressure plate, housing, and hydraulic actuation parts. The 2000–2001 catalogs list a different clutch plate set and housing from the 2002–2003 catalogs, helping you distinguish those assemblies before ordering repair parts.

Cylinder-head parts: The vertical and horizontal head tables distinguish standard and oversize valve seats and guides. Return-cap and rocker-adjustment tables match available sizes to part numbers; these are parts-selection references, not valve-clearance specifications.

The engine drawings also identify crankshaft bearing grades, gearbox shims, timing-belt rollers, and tensioners. Separate part listings make the small hardware around these assemblies easier to cross-reference.

Fuel, Cooling, and Electrical Components

Fuel system: Drawing 041 identifies the pump, filter, pressure regulator, and flange seals. The separate Fuel Infeed section shows the U.S. canister and its hoses, while the exhaust section distinguishes left- and right-hand silencers and their mounting parts.

Cooling circuit: Water Pump – Alternator Cover, drawing 011, identifies the mechanical seal and the pump's other sealing components. Radiator and cooling-circuit drawings show the thermostat, temperature sensors, hose connections, and expansion tank.

Electrical coverage: Electric System, drawing 031, shows the main harness, injection control unit, EPROM, coils, and relays. Harness part numbers differ between editions, including the front and main harnesses in the 2003 catalog. These are component layouts, not electrical wiring schematics or pinout diagrams.

Chassis Hardware and Workshop Tools

Front Fork, drawing 026, separates the stanchion tubes, bushings, springs, adjusting screws, and seals. Fairing and pannier drawings identify individual brackets, spacers, fasteners, and color-specific panels; paint-reference pages supplement those listings.

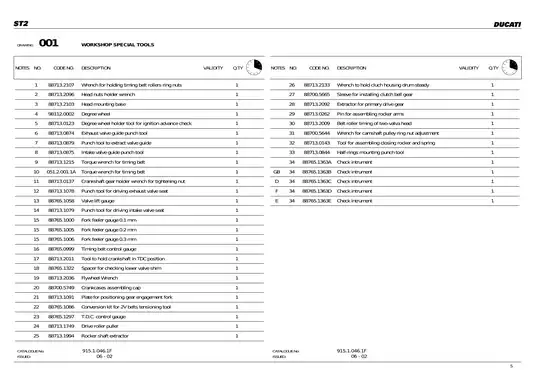

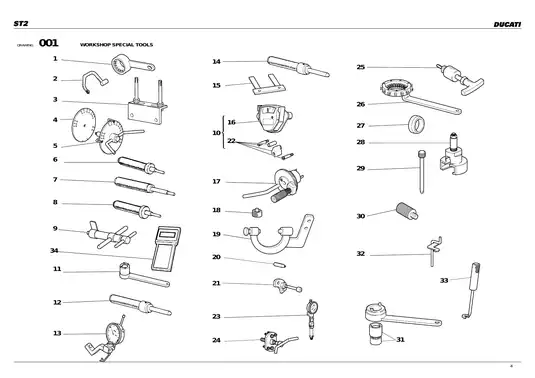

The workshop-tool pages identify equipment such as the Showa fork seal installation tool 88713.0960 and, in the later catalogs, clutch drum holding wrench 88713.2133. The Mathesis section lists tester components, cables, and adapters, rather than diagnostic test procedures.

Parts Identification and Repair Scope

These catalogs contain factory part numbers, required quantities, and exploded assembly views. They do not include written disassembly, overhaul, adjustment, or troubleshooting procedures, or workshop torque and clearance specifications. The drawings are general illustrations, so part identification should follow the applicable catalog and item listing rather than appearance alone.

The marking-plate section also reproduces a fuel-tank warning about breather-pipe leakage when the tank is lifted with too much fuel in it.

For repair work around the wheels, brakes, or suspension, keep the motorcycle securely supported.

Four PDFs and Included Reference Pages

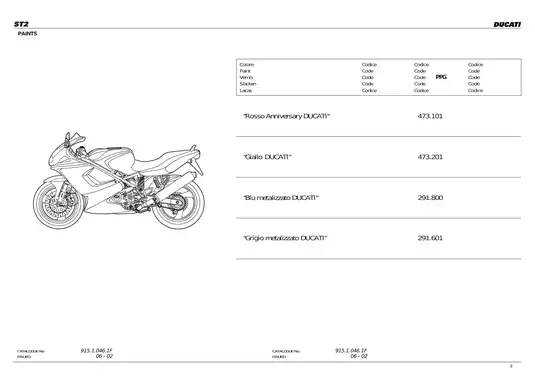

The ZIP contains four printable PDFs with 477 pages total: 2000, 117 pages; 2001, 117 pages; 2002, 121 pages; and 2003, 122 pages. These totals already include each catalog's 13-page part-number index, one paint-reference page, one cover, and one publication-label page, plus one blank page in each 2000–2002 file and two blank pages in the 2003 file.
