Suzuki SV1000S / SV1000 2003–2005 Factory Service Manual (P/N 99500-39250-03E)

479 Pages • ZIP Download: 9 Printable PDFs (English)

4.5starstarstarstarstar_half(4)
$18.99 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Suzuki Models Covered & Key Technical Specifications

Models & Model Codes: SV1000, Suzuki SV1000S (SV1000SK3)

Sub-models / Variants: E-02 (U.K.), E-03 (U.S.A. except California), E-19 (EU), E-24 (Australia), E-28 (Canada), E-33 (California)

Model Years: 2003–2005 (2003, 2004, 2005)


  • Engine: 4-stroke, liquid-cooled, DOHC, 90-degree V-twin

  • Displacement: 996 cm³ (60.8 cu. in.)

  • Bore × Stroke: 98.0 mm × 66.0 mm

  • Compression Ratio: 11.3:1

  • Fuel System: Fuel injection

  • Transmission: 6-speed constant mesh

  • Clutch: Wet multi-plate type

  • Coolant Capacity: 2.2 L (2.3/1.9 US/Imp qt)

  • Battery: 12 V 43.2 kC (12 Ah)/10 HR

Suzuki Manual Features & Selected Content Preview

This Suzuki Motor Corporation factory service manual, P/N 99500-39250-03E, dated February 2003, documents the 2003 SV1000S K3 (SV1000SK3). Owners working on the unfaired SV1000 or later K4/K5 revisions should confirm the applicable publication or supplement rather than assume this K3 manual covers the differences.

PDF Search, Page Bookmarks, and Chapter Files

Search and diagram detail: The PDFs contain searchable OCR text, with recognition errors in some labels and tables. FI System PDF p. 75 and Chassis PDF p. 51 have no searchable text. Each file has page-number bookmarks rather than descriptive topic bookmarks. Small wiring labels require zooming; the wiring diagrams at the end of the Emission Control file span adjacent pages.

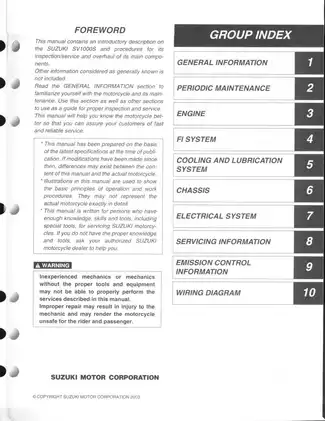

The ZIP download contains nine printable English PDFs totaling 479 pages, including nine pages of front matter and two closing publication/cover pages. File lengths are General Information, 19 pages; Periodic Maintenance, 32; Engine, 113; FI System, 94; Cooling and Lubrication System, 23; Chassis, 97; Electrical System, 38; Servicing Information, 46; and Emission Control Information with wiring diagrams, 17.


Engine Overhaul, FI Diagnosis, and Chassis Service

The following selected coverage highlights major workshop tasks. Other included topics range from lubrication points to headlight beam adjustment.

  • Engine and drivetrain repair: Step-by-step engine removal and reassembly, cylinder-head and valve service, piston and crankshaft inspection, clutch repair, and transmission teardown.

  • FI troubleshooting: User- and dealer-mode self-diagnosis, malfunction-code charts, fail-safe operation, sensor circuit testing, and ECM connector references.

  • Fuel and throttle systems: Fuel-pressure and pump checks, mesh-filter cleaning, injector inspection, throttle-body service, TPS/STPS adjustment, fast-idle setting, and throttle-valve synchronization.

  • Chassis and hydraulics: Front-fork teardown, wheel and steering service, swingarm and linkage work, brake caliper and master-cylinder repair, clutch hydraulics, and bleeding.

  • Cooling and lubrication: Cooling-circuit pressure testing, radiator and cap checks, fan and thermostat tests, water-pump seal and bearing repair, and oil-system diagnosis.

  • Electrical troubleshooting: Charging and ignition tests, starter-motor overhaul, side-stand/ignition interlock checks, combination-meter testing, relay and switch inspection, and wiring diagrams.

  • Periodic maintenance: Service schedules, air-cleaner and spark-plug checks, tappet adjustment, drive-chain inspection and adjustment, fluid replacement, and compression and oil-pressure tests.

Suzuki states that this manual is written for people with sufficient motorcycle-service knowledge, skills, and equipment, including special tools; it is not a beginner-level repair guide.

Internal Engine Repair and Reassembly

The engine section separates components serviceable in the frame from jobs requiring engine removal. Together with the compression-test guidance, this helps plan whether further investigation can proceed in the chassis or requires engine removal.

Internal repair coverage reaches the camshafts, valve guides and seats, connecting rods, gearshift forks, starter torque limiter, starter clutch, oil jets, and crankcase. Inspection limits, bearing selection tables, tightening sequences, sealant and lubricant callouts, and front/rear cylinder timing references support disassembly and reassembly.

FI Fault Isolation and Market Differences

The FI section explains ECM-controlled fuel delivery and secondary-throttle operation before presenting diagnostic procedures. Malfunction charts run from C11 camshaft-position faults through C49 PAIR-solenoid faults, with checks for crankshaft, pressure, temperature, throttle, tip-over, ignition, injector, fuel-pump relay, and gear-position circuits.

The charts connect fault codes with possible causes, test results, and harness checks, helping distinguish a sensor fault from a wiring or connection problem. Stored-code reset and fail-safe information accompany the troubleshooting procedures.

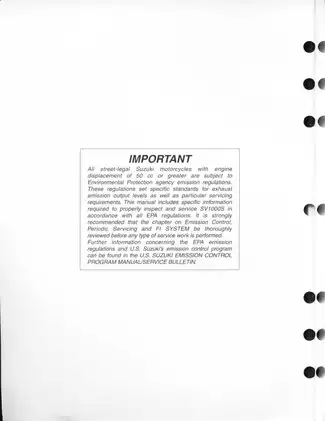

Heated oxygen-sensor diagnosis applies to E-02 and E-19. E-33 receives California-specific evaporative-emissions inspection and canister hose routing. Market-dependent service data is identified separately.

During throttle-valve synchronization, the manual warns that dirt entering with the air-cleaner box removed can damage internal engine parts.

Suspension, Brakes, and Clutch Hydraulics

Chassis coverage includes cowling removal, wheel bearings, steering damper and stem service, fork oil-level setup, steering-tension adjustment, and tire balancing. Swingarm and cushion-linkage procedures include bearing inspection, replacement, and final adjustment.

Rear-shock coverage is limited to removal, inspection, disposal, remounting, and suspension setting. The rear shock unit is unserviceable and must not be disassembled.

Brake and clutch sections include component inspection, seal replacement, fluid replacement, and bleeding. The fork section cautions against damaging the inner tube and requires new slide metal, oil seals, and dust seals during reassembly.

Cooling, Lubrication, and Electrical Checks

Water-pump inspection distinguishes oil leakage from coolant leakage and identifies the related seals for examination. Lubrication references cover the oil-pressure regulator, strainer, pump, jets, oil cooler, and oil-flow paths.

Electrical diagnosis includes battery-current leakage, generator output, regulator/rectifier tests, ignition peak-voltage checks, and starter/interlock troubleshooting. Combination-meter functions, lamps, relays, switches, and MF-battery charging procedures are also covered.

Fuel-system testing, engine handling, hot cooling-system work, brake and clutch hydraulics, and live electrical checks require the stated precautions and properly equipped shop practices.

Diagrams, Special Tools, and Shop Data

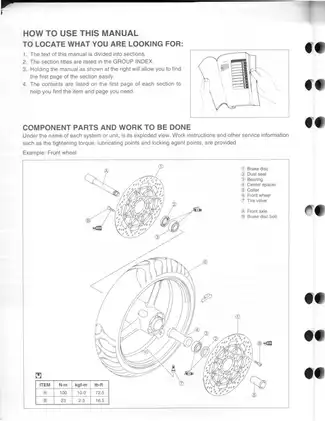

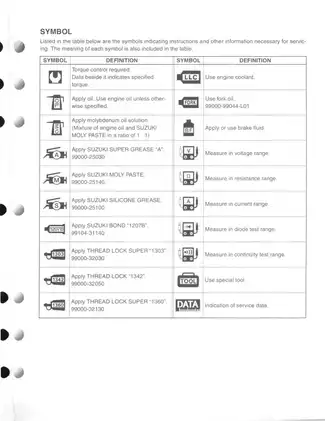

Named references include the FI System Wiring Diagram, the main Wiring Diagram for E-03/E-24/E-28/E-33, the Cooling Circuit, Engine Lubrication Flow Chart, Wire Harness Routing, and Throttle Body Installation/Hose Routing views. Exploded illustrations connect components with torque, lubrication, locking-agent, removal, and installation callouts.

Diagnostic tools include mode select switch 09930-82720, multi-circuit tester 09900-25008, needle probe set 09900-25009, and fuel-pressure gauge adapter and hose attachment 09940-40211/09940-40220.

Repair-tool references include crankcase separating tool 09920-13120, front-fork assembling tool 09940-30250, and fork-oil level gauge 09943-74111. Consolidated service data covers component torques, pressures, capacities, clearances, wear limits, suspension settings, and electrical test specifications.

A Preview of Tappet Clearances and FI Test Values

For cold-engine tappet checks, the manual specifies intake clearance of 0.10–0.20 mm and exhaust clearance of 0.20–0.30 mm. Separate intake and exhaust shim selection tables accompany the adjustment instructions.

FI inspection data includes approximately 300 kPa (43 psi) fuel pressure with the ignition switched on. Injector circuit testing specifies resistance of 11–13 Ω between the injector terminals at 20°C (68°F).
