Isuzu FRR/W5 Truck Service Manual 1997–1998 (P/N FRR97-WSM-C01)

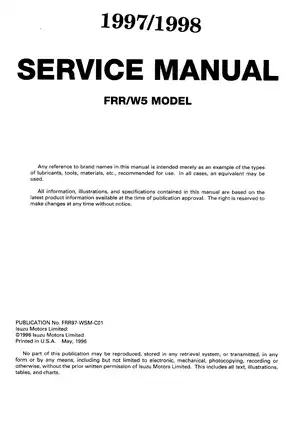

Isuzu Motors’ 1997–1998 FRR/W5 service manual, P/N FRR97-WSM-C01, printed May 1996, covers medium-duty steel tilt cab trucks with the 6HE1-TC1 diesel.

PDF Navigation and Download Contents

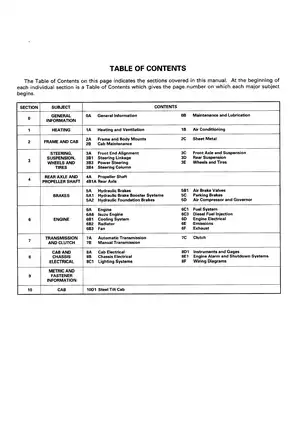

Search, bookmarks, and diagram detail: PDF text search is not available. Embedded bookmarks provide section and topic navigation. Small wire codes and pin numbers on the two large wiring-diagram sheets require zooming.

The ZIP download contains one printable English-language PDF with 755 pages, including six introductory pages, 30 memo pages, and the original back cover.

Diesel, Driveline, and Steel Tilt-Cab Service

These selected service topics show part of the manual’s coverage; maintenance schedules and exhaust-brake diagnosis are also included.

• Engine repair: 6HE1-TC1 troubleshooting and internal repair, turbocharger service, cooling-system diagnosis, valve adjustment, and engine removal and replacement.

• Fuel injection and TICS: Injection-pump timing, injector bench testing, fuel-system bleeding, and TICS/ECM diagnosis using Pro-Link 9000 and on-board flash codes.

• Transmission and driveline: AT542 on-vehicle service, MLD6Q unit repair, clutch hydraulics, SPL90 vibration diagnosis, and R065 differential setup.

• Brake systems: Air-over-hydraulic diagnosis, bleeding, booster and valve repair, foundation brakes, compressor and governor service, and parking-brake work.

• Steering and chassis: Power-steering testing and overhaul, axle and suspension work, frame-alignment checks, crack repair, and body-mount procedures.

• Cab and HVAC: Steel tilt-cab hardware and body service, R-134a performance diagnosis, refrigerant handling, and heater and air-conditioning component replacement.

• Electrical diagnosis: Starter and generator repair, glow-plug tests, DRL and non-DRL lighting, instruments, engine alarms, and FRR/W5 wiring diagrams.

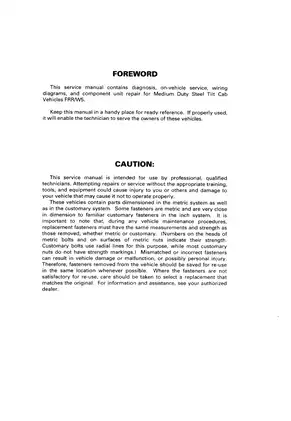

This manual is intended for professional, qualified technicians with the training, tools, and equipment required for commercial-truck service.

Build Identification and Service Planning

VIN, engine-identification, RPO, wheelbase, and service-parts-label information helps confirm the individual truck build before parts or procedures are selected. The model-data table calls the manual transmission MLD6; the transmission-identification section specifies MLD6Q.

Engine and Fuel-System Repair

Troubleshooting covers no-start, hard-start, misfire, low-power, smoke, overheating, oil-pressure, oil-consumption, and abnormal-noise complaints. Step-by-step procedures address compression testing and cylinder-head, valve-train, piston and liner, timing-gear, oil-system, crankshaft, flywheel, seal, mount, and engine replacement work.

Fuel-system material includes the transfer pump, filters and sedimentor, injection-pump replacement, idle adjustment, injector inspection, and bench testing. Cooling coverage extends to pressure testing, flushing, thermostat and oil-cooler replacement, water-pump repair, radiator service, drive belts, and the automatic fan clutch.

TICS Fault Tracing

The Timing and Injection Rate Control System (TICS) section provides scan-tool procedures for reading and clearing DTCs, alongside on-board flash-code diagnosis. Fault charts cover the rack-position and engine-speed sensors, coolant-temperature circuit, pre-stroke controls, boost-cut magnetic valve, and variable-swirl valve.

The TICS Circuit Diagram, ECM Harness Connector Pin Layout, and component-location views let a technician follow an injection-control complaint from a stored code to the relevant circuit checks.

Transmission, Clutch, and Driveline

AT542 scope: The automatic-transmission chapter covers diagnosis, fluid and filter service, cables, governor service, cooler and line flushing, and transmission replacement. It expressly refers major internal AT542 repair to the applicable Allison transmission manual; that separate publication is required for a complete automatic-transmission overhaul.

MLD6Q and clutch: Manual-transmission coverage reaches case, gearshaft, synchronizer, and shift-quadrant unit repair. Clutch procedures cover adjustment, bleeding, disc and pressure-plate replacement, release components, and master/slave-cylinder repair.

SPL90 and R065: Propeller-shaft work includes vibration road testing, balancing, U-joints, and center bearings. Rear-axle procedures address carrier and housing removal, disassembly, inspection, assembly, bearing preload, backlash, and gear-contact checks.

Brakes, Steering, and Frame Repair

The air-over-hydraulic Plumbing Schematic links the hydraulic and pneumatic circuits. Related chapters cover brake road testing, flushing, air-booster repair, control valves, compressor and governor service, and parking-brake work.

Steering and suspension material includes front-end alignment, hubs and kingpins, springs and stabilizers, power-steering gear and pump overhaul, adjustment, bleeding, and flushing.

Frame diagnosis addresses sag, buckle, diamond, twist, sidesway, tracking, and cracking. The Rail Layout and Alignment Check supports plumb-bob and diagonal measurements, with bubble-protractor checks for rail slope. Separate procedures cover reinforcement, crack repair, crossmember replacement, high-tensile-steel welding, and body mounting.

Cab, Heating, and Air Conditioning

Cab sections include trim care and steering-wheel refinishing, water and dust leak diagnosis, alignment and straightening, glass, mirrors, sheet metal, doors and weatherstrips, wipers, cab mounts, tilt hardware, and cab removal.

The R-134a chapter covers performance diagnosis, leak repair, recovery and recycling, evacuation and charging, compressor and oil checks, receiver/dryer, condenser fan, evaporator, blower resistor, thermostat, and pressure switch. Refrigerant-cycle and component-location drawings accompany pressure-temperature charts and electrical tests.

Starting, Charging, and Vehicle Wiring

Engine-electrical chapters cover battery and charging-system diagnosis, generator and starter-motor unit repair, glow-plug testing, and engine-stop controls.

Cab and chassis electrical coverage adds circuit diagnosis, connector repair, harness routing, lighting with and without DRL, instruments, warning systems, engine alarms, and shutdown controls. The main FRR/W5 wiring diagram and separate Canadian version are accompanied by connector views, parts locations, and diagram-reading conventions.

Factory Tools and Repair Cautions

Diagnostic-tool references include the J-26487-B power-steering analyzer, J-34532/J-26999-12 compression-gauge setup, and J-28829 injector tester. Unit-repair references include the J-34827 transmission-bearing remover, J-36411 brake-shoe spring pliers, and J-37367 clutch pilot aligner.

Chapter-specific torque tables, capacities, pressure-test data, wear limits, adjustment specifications, and electrical test values accompany the procedures.

Frame-repair cautions identify prohibited drilling and welding zones and explain how uncontrolled heat or unsmoothed weld beads can cause stress concentrations and cracking or damage nearby wiring and fuel-system parts. R065 pinion instructions identify a direction-sensitive collapsible spacer; reuse or reversal can compromise bearing preload and damage the gear set.

Frame, brake, refrigerant, and cab-tilt work involves load-bearing structures, stored air or hydraulic pressure, pressurized refrigerant, and heavy components. Follow the manual’s cautions and use commercial-truck repair equipment suited to the job.

Injector Test Pressures and Brake-Drum Limits: A Preview

For injector bench testing, the diesel fuel-injection specifications list an opening-pressure production range of 20,104–21,084 kPa (2,915–3,057 psi), with a service limit of 19,613 kPa (2,844 psi).

For both front and rear foundation-brake drums, the original diameter is 320 mm and the discard diameter is 322 mm. The machining cautions explain that exceeding the drum limits increases the risk of drum failure and brake malfunction.
