1996–2002 Suzuki RM250 Owner´s Service Manual

This Suzuki owner's service manual covers the 1996–2002 RM250, focusing on two-stroke engine maintenance, drivetrain, and chassis tuning.

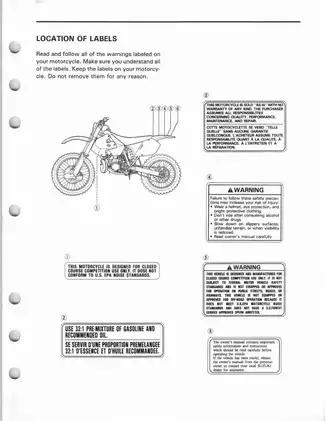

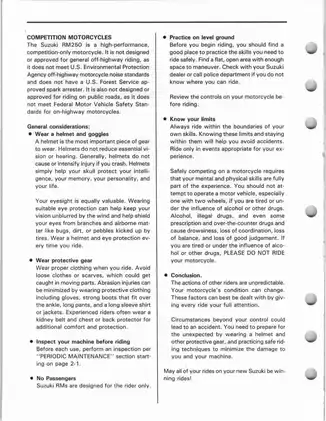

Supplied as a single 185-page PDF.

• Engine repair: Engine removal, cylinder and piston inspection, exhaust valve service, crankcase separation, and crankshaft installation.

• Clutch and transmission: Clutch plate and primary driven gear inspection, kick starter repair, gearshift linkage service, and transmission rebuilding.

• Fuel and cooling: Keihin PWK38 carburetor and reed valve service, power jet solenoid testing, radiator inspection, and water pump repair.

• Electrical diagnosis: Ignition peak-voltage tests, CDI terminal checks, stator coil inspection, and an electrical circuit diagram with wire-color codes.

• Suspension and steering: Front fork overhaul, rear shock servicing, suspension tuning, swingarm pivot service, and steering stem bearing replacement.

• Brakes and wheels: Caliper and master cylinder overhaul, brake bleeding, wheel inspection, and wheel bearing replacement.

This manual suits mechanically experienced owners and technicians who can use precision measuring tools; internal engine repair and nitrogen-charged shock work require suitable workshop equipment.

Engine, Clutch, and Transmission Repair

Chapters are dedicated to general service instructions, periodic maintenance schedules, and systematic troubleshooting for engine and chassis performance. Troubleshooting tables address starting problems, power loss, overheating, shifting faults, poor handling, and braking complaints.

Cylinder head distortion and piston pin bore service limits are documented alongside piston ring clearances and crankshaft runout. The cylinder section identifies a chrome-plated bore that must not be bored or honed. Reassembly notes explain how incorrect piston-ring positioning can damage a ring during cylinder installation.

Transmission coverage extends to gear dogs, shift forks, and the gearshift cam. Tool references include crankcase separator 09920-13120 and crankshaft installer 09910-32812 with attachment 09911-11310.

Keihin Carburetor Service and Tuning

The PWK38 is identified as carburetor I.D. 37E4. Tuning coverage distinguishes the slow, intermediate, main, and power jet circuits, with a throttle-opening chart, jet-needle choices, and temperature and altitude guidance.

Power jet solenoid diagnosis includes operating checks and follow-up checks of the CDI unit, stator, rectifier, wiring, and coupler connections.

Radiator and Water Pump Service

Cooling coverage includes radiator cap pressure testing, hose routing, coolant replacement, and water pump impeller, bearing, and oil seal inspection. The pump-shaft removal procedure calls for crankcase separation, helping you plan the required engine access before starting a water pump repair.

Ignition and Electrical Testing

Electrical component location and connection points are included alongside the Electrical Circuit schematic and CDI unit coupler terminal-number view. Ignition peak-voltage testing specifies multi-circuit tester 09900-25008 with a peak-voltage adapter.

CDI and rectifier checks include terminal-by-terminal readings for the specified tester. Ignition coil and condenser testing, plus magneto rotor and stator removal and reassembly, are also covered.

Front Fork and Rear Suspension

The chassis and suspension sections cover front fork adjustment, including compression and rebound damping, and rear suspension sag measurement. The Front Fork Tuning Procedure chart, fork load-versus-stroke curves, oil-level guidance, and suspension balance checks support setup work.

Fork repair includes damper-rod bleeding and seal replacement. Service cautions identify inner-rod handling that can damage its oil seal; the damper rod assembly and compression damper unit are not to be internally disassembled.

The manual outlines procedures for depressurizing and recharging the rear shock absorber with nitrogen gas, along with oil replacement and damper-rod inspection. Swingarm and suspension linkage sections include pivot-bearing installation and orientation drawings.

Brake and Wheel Service

Brake inspections cover piston and seal condition, disc wear and runout, and pedal adjustment. Wheel and final-drive procedures add axle and rim runout checks, drive chain adjustment, sprocket replacement, and bearing installation drawings.

When handling DOT 4 brake fluid or releasing highly pressurized nitrogen gas, follow the manual's safety procedures.

Service Data and Workshop References

Component-specific torque tables, fluid capacities, wear limits, clearances, and electrical specifications support the repair chapters. Exploded clutch and transmission views show assembly relationships. Special-tool application drawings identify the required equipment, while Wire, Cable and Hose Routing provides seven pages of installation references.

File Format and Readability

The total includes one cover page, eight introductory and contents pages, 165 technical pages, eight memo pages, and a three-page index.

Text search: OCR text search is available across the technical chapters, with recognition errors in some words and diagram labels. The cover text is poorly recognized.

Navigation: PDF bookmarks link to the contents, service chapters, and index.

Electrical labels: Small wire-color codes and connector numbers are readable when enlarged; the smallest labels are harder to distinguish in full-page view.
