Yanmar 3TNV82A-4TNV106T 2009 Industrial Engines Service & Repair Manual (P/N 0DTNV-G00600)

• Model coverage: Covers the cover-listed Yanmar TNV direct-injection range from 3TNV82A through 4TNV106T, including naturally aspirated, turbocharged, -B, -U, -Z, and -E configurations. The specification section separates EPA Tier 2 engines from Interim Tier 4 builds and also carries tables for 3TNV84T-Z, 3TNV88-Z, 4TNV84T-B, and 4TNV88-Z.

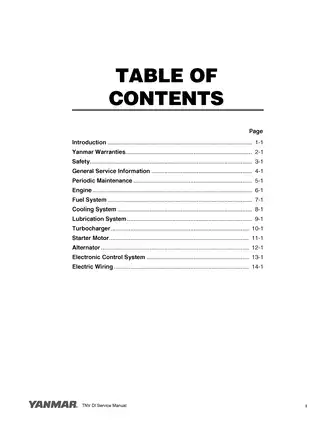

• Document set: A 600-page PDF set consisting of the 378-page, December 2009 Industrial Engines Service Manual, printed document code 0BTNV-U00102, and the 222-page Electronic Control Troubleshooting Manual, code 0DTNV-G00600.
• Internal engine repair covers separate 2-valve and 4-valve cylinder heads, valve and guide work, rocker/bridge inspection, piston and rod groups, crankshaft and bearings, camshaft and tappets, timing gears, block inspection, honing/boring, reassembly, and adjustment.
• Fuel-system procedures distinguish MP2 and MP4 injection-pump installations and cover pump removal, drive-gear indexing, injection timing, injector testing and pressure adjustment, fuel priming, electronic-governor components, and EGR valve, cooler, and lead-valve service.
• Cooling, lubrication, turbocharger, and electrical chapters document coolant-pump overhaul, oil-pressure diagnosis, model-group-specific trochoid oil pumps, wastegate testing, starter repair, and alternator/dynamo inspection and output testing.
• Electronic diagnosis adds DTC operating-state and recovery information, E-ECU pin assignments, 2G eco-checker harness checks, sensor/relay/actuator testing, CAN and immobilizer diagnosis, flash-code charts, and factor-analysis charts for speed fluctuation, stalling/no-start, and black smoke.

Engine Repair and Fuel-System Coverage

The mechanical service manual goes well beyond scheduled maintenance. Its cylinder-head chapters differentiate 2-valve and 4-valve layouts and cover removal, disassembly, cleaning, inspection, machining criteria, reassembly, installation, and valve adjustment. Lower-engine coverage addresses piston, ring, and connecting-rod groups; crankshaft journals and bearings; camshaft and tappets; the timing gear train; front gear case; rear oil seal; and cylinder block. Principal-specification and service-standard tables add engine dimensions and dry weights, torque data, clearances, wear limits, compression-test values, oil-pressure ranges, and engine-only fluid capacities.

Fuel-system coverage is separated by engine family. The manual identifies the MP2 pump used on 3TNV82A–4TNV88 engines and the larger MP4 used on 4TNV94L–4TNV106T, then separates their mounting, drive-gear access, indexing, and timing methods. Injector repair includes removal, bench testing, disassembly, inspection, pressure adjustment, reassembly, and installation. Fuel-injection-pump coverage stops at removal, installation, timing, and external service; internal pump repair and calibration are assigned to a qualified Yanmar FIE repair facility. That scope limit matters before ordering the set for a pump rebuild.

Special-tool tables call out the 2-valve injector removal tool, P/N 129470-92305, the valve spring compressor, P/N 129100-92630, model-specific Flex-Hones, and compression-gauge adapters for the covered 2-valve and 4-valve cylinder heads.

Electronic Control and Fault Diagnosis

The electronic-control service section applies specifically to 4TNV84T-Z, 4TNV98-E, 4TNV98-Z, and 4TNV98T-Z. It explains the EGR/Eco-governor architecture, E-ECU, rack actuator and position sensor, engine-speed sensor, CSD solenoid, starting-aid circuit, speed-control functions, and CAN link to the driven machine. These components are serviced as complete assemblies rather than repaired internally. Fuel-injection-pump replacement on these versions also requires the specified E-ECU fuel-data rewrite.

The dedicated troubleshooting volume goes beyond a basic code list. Each DTC entry combines detection conditions with checkpoints, resulting engine operation or restriction, recovery conditions, likely causes, and a directed test workflow. It covers analog and pulse inputs, switch circuits, rack and EGR actuators, ECU power and internal faults, CAN communication, and immobilizer problems. Voltage, resistance, continuity, connector, and diagnosis-tool signal checks are built into the fault-isolation procedures. The referenced Diagnosis Tool Operation Manual is a separate publication and is not included.

Useful visual references include the fuel-system, cooling-system, and lubrication-system diagrams; the electronic-control harness schematic; the E-ECU pin-layout drawing; and the failure-indicator and factor-analysis charts. The final engine wiring diagram is representative rather than machine-specific. Machine-side wiring and installation-dependent capacities must be checked against the equipment manufacturer's documentation.

Maintenance Scope and Workshop Cautions

The periodic maintenance schedule covers oil and filter service, belt and battery inspection, fuel filter/water-separator maintenance, coolant replacement, valve-clearance checks, injector inspection, turbocharger wash and inspection, EGR cleaning, and crankcase-breather service. General service information also addresses engine identification labels, emissions data, diesel fuel and low-sulfur requirements, fuel-system priming, lubricants, and coolants.

The pump chapter flags a serious timing trap: rotating the crankshaft after the drive gear has been indexed, or separating the gear from its hub, can destroy the reference needed to restore injection timing. The fuel-priming section also warns against using the starter to prime the system because extended cranking can damage its coils, pinion, or ring gear.

High-pressure fuel, rotating components, hot coolant, turbocharger parts, and starting/charging circuits require the isolation and safety procedures specified in the manuals. This material is written for trained service and repair personnel.
