2002 Kawasaki KVF650, Prairie 650 4x4 Service Manual

For 2002 Kawasaki KVF650 & Prairie 650 models: diagnostics, service, and parts information for complete maintenance and repair procedures. Ref: 99967-1095-02

4.5starstarstarstarstar_half(2)
visibility Preview Available

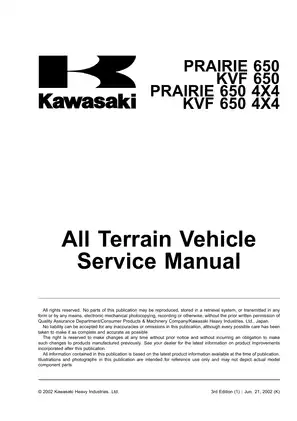

Kawasaki 2002 Kawasaki KVF650, Prairie 650 4x4 Service Manual manual page preview - page 1 of 488

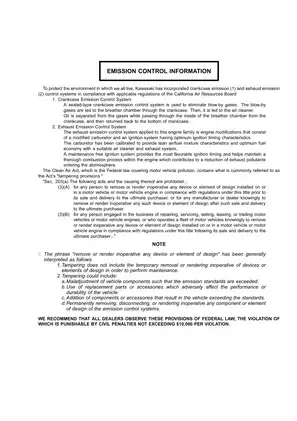

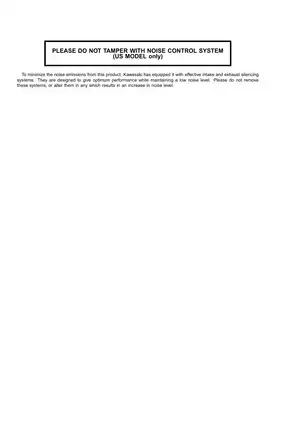

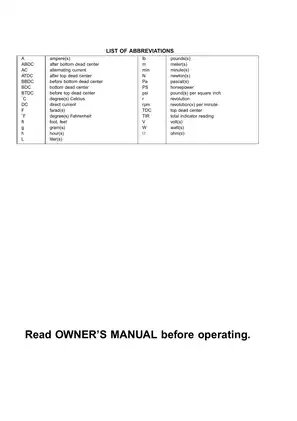

Sample pages from the 2002 Kawasaki KVF650, Prairie 650 4x4 Service Manual manual

Kawasaki 2002 Kawasaki KVF650, Prairie 650 4x4 Service Manual manual preview page 1 - thumbnail
Kawasaki 2002 Kawasaki KVF650, Prairie 650 4x4 Service Manual manual preview page 2 - thumbnail
info_outline Click thumbnails to preview different pages
$17.25 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
3 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Kawasaki Models Covered & Key Technical Specifications

Models: KVF650, Prairie 650 4x4
Sub-models / Variants: KVF650-A1, KVF650-B1, KVF650-A2, KVF650-B2
Build Years: 2002
Technical Data:

  • Engine: 4-stroke, SOHC, V2-cylinder, liquid-cooled
  • Displacement: 633 mL
  • Compression Ratio: 9.9:1
  • Maximum Horsepower: 30.9 kW (42 PS) @ 6,500 r/min
  • Maximum Torque: 52.1 Nm @ 4,000 r/min
  • Fuel System: Dual Keihin CVKR-D32 downdraft carburetors
  • Transmission: 2-speed plus reverse belt converter
  • Drive System: Shaft, 2WD/4WD selectable
  • Engine Oil Capacity: 2.05 liters
  • Cylinder Head Bolt (M10) Torque: 49 Nm (final torque)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
31089 / Mary Brown
File Size:
12.96 MB
File Type:
PDF
Language:
English
Pages:
488
Printable:
Yes
Category:
ATV
Last updated / verified
Oct 15, 2025

Kawasaki Manual Features & Content Preview

2002 Kawasaki KVF650 and Prairie 650 4x4 Service Manual

  • Covers 2002 Kawasaki KVF650 and Prairie 650 4x4 models, including A1, B1, A2, and B2 variants with V-twin liquid-cooled engines
  • Official Kawasaki publication 3rd Edition (1), published June 21, 2002
  • Contains 488 pages of technical specifications, exploded-view diagrams, and maintenance procedures for engine, chassis, and drivetrain systems
  • Accessible from your device as soon as the order is placed
  • Suitable for printing individual sections for shop-floor use
  • This 2002 third edition is the primary factory reference for the KVF650 launch architecture, documenting unique V-twin specifications and the specialized K-EBC system maintenance parameters

Detailed System Documentation

The 2002 Kawasaki KVF650 and Prairie 650 4x4 service manual provides extensive technical data for the maintenance of the liquid-cooled V-twin engine, including timing, valve clearance, and carburetor synchronization. General Information chapters detail the K-EBC (Kawasaki Engine Brake Control) system, the selectable 2WD/4WD drive train, and the drive belt failure detection system. Each section includes specific hardware configurations, cable routing diagrams, and electrical system diagnostics necessary for accurate servicing.

Technical Data and Specifications

Specification tables list the 633 mL engine displacement and the compression ratio of 9.9:1. Cylinder head bolt torque is specified at 49 Nm in the engine assembly data. The coolant system capacity is documented at 2.73 liters in the general technical tables. Torque for the drive pulley bolt is 93 Nm, while the radiator fan mounting nut is rated at 2.7 Nm. For what an OEM service publication covers, these documents include detailed fastener charts, fluid capacities, and electrical pinout schematics for the 12V system. Note: This page is a contents overview for the manual. It does not provide repair or diagnostic instructions.

An official 488-page Kawasaki OEM service manual covering the 2002 KVF650 and Prairie 650 4x4, documenting engine, chassis, electrical, and fuel-injection specifications for the A and B series builds.

Manual FAQ, Purchase & Download Details

Are fluid capacities and oil viscosity requirements listed in the general specifications section? keyboard_arrow_down

General specifications section includes comprehensive tables listing fluid capacities for engine oil, front final gear case oil, and rear final gear case oil, alongside recommended viscosity grades.

Does this manual, published as the 3rd Edition in June 2002, provide technical information on the K-EBC system and other vehicle components? keyboard_arrow_down

Publication contains detailed technical information regarding the Kawasaki Engine Brake Control system, including component parts and wiring diagrams. It also covers major vehicle systems divided into specific chapters for reference.

Can the manual show exploded view illustrations for component breakdown and assembly reference? keyboard_arrow_down

Most chapters within this service manual include exploded view illustrations of the system components following the table of contents. These diagrams are intended for reference and show specific parts of the vehicle. You will find references indicating which components require tightening torque or specialized agents in these detailed illustrations.
