Kubota B5100, B6100 & B7100 I&T Tractor Shop Manual (1978–1984)
46 Pages • ZIP Download: 3 Printable PDFs (English)
Kubota Models Covered & Key Technical Specifications
Models: B5100D, B5100E, B6100D, B6100E, B6100HST-D, B6100HST-E, B7100D, B7100HST-D, B7100HST-E
Sub-models / Variants: D (4WD, six-speed gear transmission), E (2WD, six-speed gear transmission), HST-D (Hydrostatic 4WD, two-speed range transmission), HST-E (Hydrostatic 2WD, two-speed range transmission)
Engine Models: Z500-1A (B5100D/E), D650-A (B6100D/E), D650-AH (B6100HST-D/E), D750-A (B7100D), D750-AH (B7100HST-D/E)
Model Years: 1978–1984 (1978, 1979, 1980, 1981, 1982, 1983, 1984)
Serial Numbers: B6100HST-D serial 50127 and later (Type II); B6100HST-E serial 11140 and later (Type II); B7100HST-D serial 51742 and later (Type II); B7100HST-E serial 11906 and later (Type II)
-
Engine Displacement: 508 cc (B5100), 675 cc (B6100), 762 cc (B7100)
-
Engine Configuration: 2-cylinder (B5100), 3-cylinder (B6100/B7100)
-
Compression Ratio: 22:1
-
Electrical System: 12-volt battery, 35 Ah (B5100), 45 Ah (B6100/B7100)
-
Maximum Hydraulic System Pressure: 11.8 MPa (1710 PSI)
-
Cooling System: Thermo-siphon liquid cooled
Kubota Manual Features & Selected Content Preview
This Intertec I&T shop manual covers 1978–1984 Kubota B5100D/E, B6100D/E, B6100HST-D/E, B7100D, and B7100HST-D/E tractors. The download contains the Kubota tractor section from I&T Shop Service Manual No. K-2, copyright 1986.
PDF Files, Index, and Wiring Readability

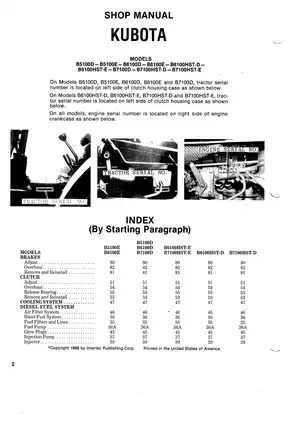

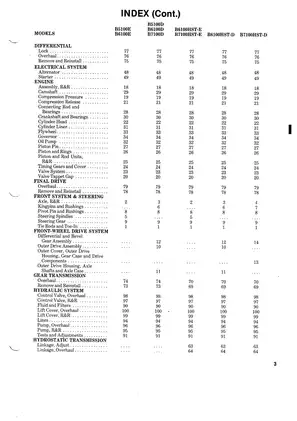

Finding procedures and reading schematics: The printed index points to numbered service paragraphs. The PDFs have no text search or embedded bookmarks. Zoom in to read small switch-terminal markings and wire-color codes on the two wiring diagrams.
The ZIP contains 46 pages across three printable English PDFs. Part 1 has 18 pages, including the cover and four pages of introductory material and service data. Part 2 has 12 pages (printed pages 19–30), and Part 3 has 16 pages (printed pages 31–46), including both wiring diagrams.
Diesel Engine, Gear Drive, and HST Service
The list below highlights selected shop procedures. The manual also covers fuel-feed pump operation and clutch safety-switch adjustment.
-
Engine overhaul: Engine removal and installation, cylinder-head and valve-train service, timing-gear alignment, piston and connecting-rod work, camshaft and crankshaft overhaul, dry cylinder-liner replacement, oil-pump inspection, and governor service.
-
Hydrostatic transmission: Case, charge, and high-relief pressure tests, vacuum testing, neutral and speed-control linkage adjustment, unit removal, internal inspection, reassembly, and operational checks.
-
Six-speed transmission and clutch: Step-by-step tractor splitting procedures, clutch centering and release-lever checks, shifter service, gear and shaft inspection, and model-specific transmission layouts.
-
Axles, steering, and PTO: Steering gear, kingpins, pivot bushings, toe-in, front-drive housings and axle shafts, differential and bevel gears, differential lock, final drives, brakes, rear PTO, HST mid-PTO, and one-way clutches.
-
Hydraulic lift: Fluid and filter service, relief-pressure testing, implement-lowering adjustment, pump and control-valve repair, lift-cover overhaul, and the optional hydraulic block for external attachments.
-
Cooling and electrical: Thermo-siphon cooling, alternator-mounted fan and belt adjustment, glow-plug testing, alternator output specifications, Nippon Denso starter service, and two wiring schematics.
The manual is suited to mechanics and experienced owners equipped for tractor teardown and bench testing, with suitable lifting and support equipment, holding fixtures, pullers, dial indicators, and pressure gauges.
Engine and Fuel System

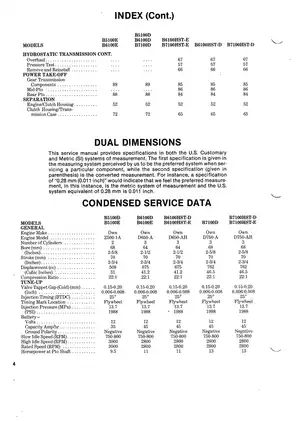

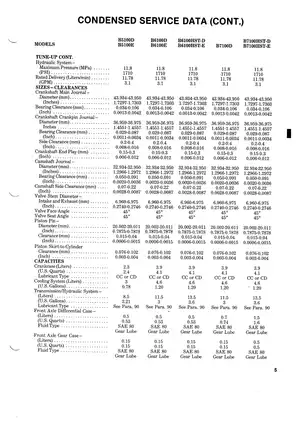

The condensed service tables group tune-up settings, engine dimensions, wear limits, capacities, and fluid specifications by configuration in U.S. customary and metric units. Component sections give torque values, backlash and end play, and bearing and bushing clearances.
Fuel service includes bleeding, injection timing, and injector opening-pressure, seat-leakage, and spray-pattern tests. The manual directs injection-pump testing and overhaul to a qualified diesel shop. Starter service includes no-load testing and pinion-engagement adjustment.
Transmission Identification and Reassembly
A model-by-model serial number table identifies where Type II HST units supersede Type I. Use it with the cross-sections and pressure-port illustration to identify the correct unit layout and test connection before diagnosis or teardown.
The HST overhaul section identifies matched piston and cylinder-block sets, the two notches on the pump-side valve plate, and the shaft protection needed during port-block installation to protect the seal lips. Relief-valve seat removal calls for Kubota tool 07916-60841 or an equivalent.
The six-speed layouts distinguish the B5100D/E, B6100D/E, and B7100D. Separate range-transmission illustrations cover HST models. The splitting procedures address both the engine-to-clutch-housing and clutch-housing-to-transmission-case joints.
Front Drive, PTO, and Hydraulic Lift
The B7100HST-D has its own front-drive layout, and the B5100D/E have separate final-drive and brake procedures. The rear PTO interlock instructions address excessive universal-joint angle when operating a three-point-mounted tiller or mower.
Lift relief-pressure testing specifies tool kit 07916-50041 or equivalent. The hydraulic illustrations show the pump-to-control-valve lines, early lift pistons with an O-ring, later pistons with an O-ring and seal ring, and the diverter-valve cylinder head fitted to some models.
Illustrations and Wiring Diagrams
Illustrations through Fig. 106 include exploded assemblies, section views, test setups, and adjustment drawings such as the drive-gear timing diagram. Exploded-view callouts identify components and their installed positions. Parts ordering requires a separate parts catalog.
The final two pages show separate wiring schematics for the B5100D/E and B6100D/E group and for the B6100HST-D/E, B7100D, and B7100HST-D/E group. Fig. 105 supplies the wire-color legend for both.
Sample Valve and HST Test Specifications
For all covered models, the valve adjustment section gives a tappet clearance of 0.15–0.20 mm (0.006–0.008 in.) for both valves, measured with the engine cold and the piston at top dead center on the compression stroke.
For HST-equipped models, the recommended case-pressure reading is 165.6–220.8 kPa (24–32 psi) at 2,800 rpm, with the high-low range selector and speed-control pedal in neutral and the parking brake engaged.
