2010–2013 Ducati Multistrada 1200 ABS & S ABS Service & Repair Manual PDF

The Ducati workshop manual for the Multistrada 1200 ABS and Multistrada 1200 S ABS is the M.Y. 2010 DRAFT edition. It covers the 1198.4 cc longitudinal 90-degree L-twin engine, wet clutch assembly, six-speed transmission, and chassis systems.

The 912-page English PDF retains some unfinished torque entries and section references from the draft.

• Engine repair: Engine removal and installation, cylinder-head overhaul, opening and closing valve-clearance adjustment, camshaft timing, and timing-belt replacement.

• Clutch and transmission: Clutch fault diagnosis, plate and spring inspection, primary-drive backlash checks, gearbox disassembly, selector inspection, and shaft shimming.

• Suspension and chassis: Marzocchi and Öhlins fork overhaul, steering-bearing replacement, swingarm service, and rear eccentric-hub removal and installation.

• ABS and brakes: ABS 8M diagnostics, wheel-speed sensor air-gap adjustment, hydraulic bleeding, brake-component replacement, and ABS control-unit removal and installation.

• DDS testing: Fault-memory retrieval, live engine parameters, actuator tests, cylinder-compression testing, and engine-oil and fuel-pressure checks.

• Fuel and exhaust: Fuel-pump flange and filter service, injector and throttle-body removal, exhaust-system replacement, and USA evaporative-canister coverage.

• Electrical circuits: Model-specific wiring diagrams, connector identification, harness-routing illustrations, and charging-system, starter, switch, and relay testing.

This manual was written for experienced technicians at Ducati Authorized Service Centers and assumes a working knowledge of motorcycle repair.

Engine Repair and Valve Timing

Cylinder-head repair extends to valve seats, guides, rocker arms, and camshaft supports. Bottom-end work includes piston/cylinder size matching, connecting-rod bearing selection, crankshaft inspection, and crankcase bearing replacement.

Timing checks: The DDS optical belt-tension procedure works with the engine installed, helping technicians plan belt service without removing the engine. Tool references include crankshaft TDC lock 88713.2011, pulley timing tool 88765.1609, and valve-lift gauge 88765.1518.

The timing section warns that reused pulley self-locking nuts can loosen and cause serious engine damage.

Clutch and Gearbox Repair

Clutch troubleshooting separates failure to disengage, slipping, and noise. Internal transmission procedures address gear engagement dogs, selector-fork and drum wear, shaft endfloat, and final shifting checks. Gearbox-shaft exploded views show the gear, bearing, and shim arrangements.

Marzocchi, Öhlins, and Chassis Service

The ABS model's Marzocchi fork and Sachs rear shock are distinguished from the S ABS model's Öhlins suspension. Fork repair covers seals and bushings; Ducati Electronic Suspension (DES) settings apply to the S version.

Rear-shock coverage provides removal and installation procedures; internal Öhlins shock service is referred to an authorized Öhlins Service Center. Steering-angle adjustment and frame inspection are covered, with damaged frames designated for replacement.

ABS 8M and Brake Service

The ABS hydraulic system layout accompanies DDS parameter, status, and fault tables. The distinction between stored and current-session errors helps interpret ABS faults after component work.

Brake coverage includes permitted external-component replacement, but excludes internal caliper and master-cylinder rebuilding. The ABS module is replaced as an assembly with its secondary hydraulic circuit already filled.

Support the motorcycle and engine securely, and observe the manual's precautions for brake hydraulics, hot coolant, and electrical isolation.

Engine Electronics and Wiring Diagrams

The control-system sections identify the Mitsubishi F8TJ ECU, BBS/Ducati Traction Control, CAN communication, and ride-by-wire APS/TPS components. Hands Free keys, immobilizer operation, dashboard error messages, and DDS service-indicator reset procedures are covered.

Separate Wiring diagram 1200 ABS and Wiring diagram 1200 S ABS sheets provide circuit references and wire-color codes. The Safety device functions table covers starter interlocks, while harness-routing illustrations locate connectors and cable retainers.

Disconnecting the battery while the engine runs can permanently damage the regulator, a specific caution in the charging-system section.

Fuel and Exhaust Systems

The fuel chapter documents filter replacement and pump-flange service, with the pump and pressure regulator supplied as a complete assembly. Exhaust work covers the catalytic converter, lambda sensors, and exhaust-valve control cable; a separate section addresses the USA-version evaporative emissions canister and hose routing.

Cooling and Lubrication

Cooling and lubrication sections cover radiator fans, thermostat hoses, water-pump seals and bearings, the oil pump, oil cooler, and breather tank.

Reference tables provide fluid capacities, approved lubricants, engine and chassis torque settings, wear limits, clearances, and electrical test specifications.

File Format and Readability

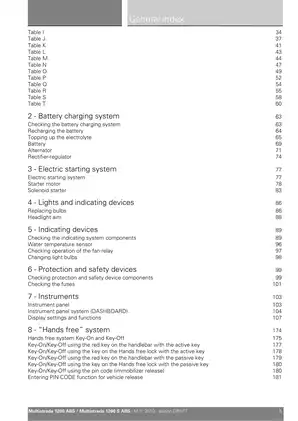

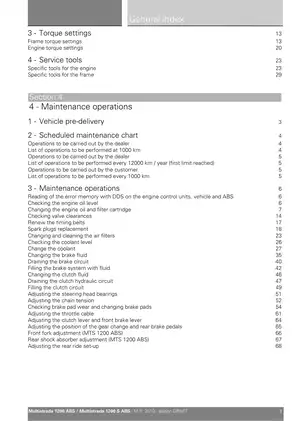

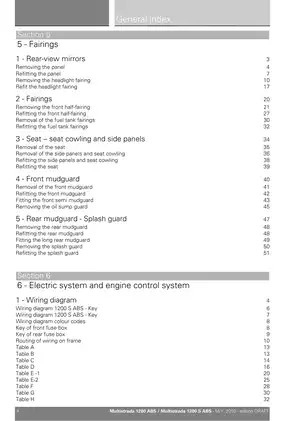

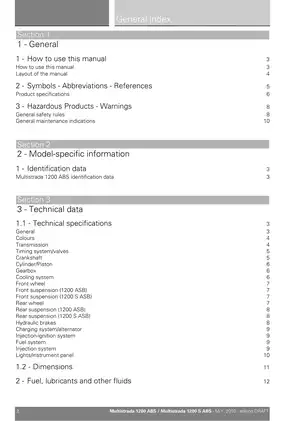

The total includes a 12-page general index, nine section-divider pages, and two blank pages, plus 889 other section pages. These pages are already included in the total; there is no separate cover or addendum.

Text search: Native PDF text is searchable across the technical sections.

Navigation: Detailed section and procedure bookmarks are included. The first ten overview bookmarks all open the initial index page.

Wiring diagrams: Small pin numbers and wire codes require substantial zoom. The dense ECU and suspension-connector areas remain legible when enlarged.
