2012 Moto Guzzi V750 IE Engine Service Manual (P/N B043109)

The 2012–2013 Moto Guzzi V750 IE engine service manual, publication reference B043109, covers internal engine repair, gearbox disassembly and clutch work. This is an engine-focused Service Station Manual rather than a complete vehicle workshop manual.

Searchable PDF with Chapter and Procedure Bookmarks

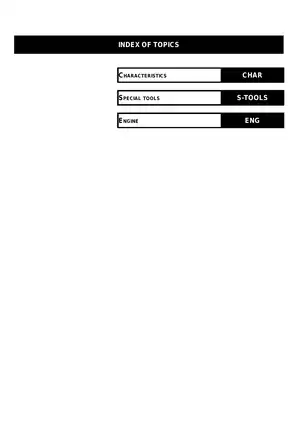

Text search and navigation: The main text is searchable, with embedded bookmarks for the technical chapters and individual engine procedures. The illustration-only opening page has no searchable text.

One English-language, printable PDF contains 113 pages, including four opening pages, four topic-divider/index pages and the closing one-page alphabetical index.

Engine Teardown, Valve Work and Drivetrain Service

These selected topics outline the main repair coverage. Additional material includes engine-speed sensor removal and installation, plus inspection of the starter-ring gear teeth.

• Gearbox and selector: Gearbox removal and disassembly, clutch-shaft removal and installation, and gear-selector reassembly with eccentric adjustment.

• Clutch and flywheel: Clutch-bell removal, plate inspection, clutch centering, flywheel inspection and installation, supported by illustrated assembly references.

• Cylinder heads and timing: Rocker-arm and valve removal, valve-guide replacement, valve-seat grinding, cold valve-clearance adjustment and cam timing.

• Pistons and crankshaft: Cylinder inspection, piston-ring checks, D-E-F piston and cylinder selection, crankcase separation and connecting-rod assessment.

• Lubrication system: Oil-pump disassembly and inspection, rotor and shaft measurements, sump and mesh-filter service, and pressure-reducer valve removal and installation.

• Generator and starter: Alternator rotor and stator removal and installation, plus starter-motor removal, with component-specific tightening data.

Written for Moto Guzzi dealers and their qualified mechanics, this manual assumes mechanical knowledge and omits some basic explanations.

Gearbox, Clutch and Flywheel Work

Step-by-step procedures cover gearbox disassembly and gear-selector reassembly, including the pre-selector spring and eccentric positioning. Gearbox and selector exploded views show the relationship between shafts, gears, forks and retaining components.

Clutch inspection addresses plate wear, flexible coupling springs and the starting sprocket’s contact surface. The assembly instructions identify clutch-centering tool 19.90.65.00 and flywheel-locking tool 19.91.18.00, allowing the required tooling to be checked before teardown.

Cylinder-Head Repair and Timing

Valve and guide coupling tables provide stem diameters and fitting clearances, while spring specifications support assessment of the valve-spring assembly. A cylinder-head section view, spring-load diagram and dimensioned valve/seat drawings accompany the repair information.

Valve-seat grinding is described for work following guide replacement or correction of leaking valves. Timing coverage includes chain and tensioner removal, phonic-wheel positioning and cam-timing alignment; valve lash is adjusted with screws and locknuts.

Working on internal engine components requires specialized tooling and mechanical expertise. Follow the factory safety precautions when servicing the valve train or grinding valve seats.

Piston Selection and Crankshaft Assessment

The D-E-F grading charts pair new cylinders with corresponding piston grades and distinguish bare-piston measurements from the graphite coating. Together with the inspection instructions, these charts support component assessment and parts selection during a rebuild.

Crankcase procedures cover separation, mating-face inspection and reassembly. Connecting-rod drawings and bearing tables accompany checks of journal dimensions, bearing clearance and crankshaft-axis parallelism.

The crankshaft is nitrided, and the manual specifically rules out grinding it. Wear, taper or deep scoring requires replacement rather than a regrinding repair.

Oil-Pump and Sump Service

Oil-pump exploded views and inspection photographs accompany checks of the pump body, inner and outer rotors, needle bearings and drive shaft. The installation section also addresses alignment dowels and shaft freedom.

The sump instructions warn that an incorrectly installed gasket can obstruct oil circulation and put engine components at risk. Pressure-reducer valve coverage consists of removal and refitting procedures.

Examples of Piston and Oil-Pump Inspection Data

The piston-ring inspection section specifies a top-ring end gap of 0.20–0.35 mm, measured with the ring inside the cylinder. The cylinder-selection section gives piston-to-cylinder fitting clearance as 0.050–0.070 mm.

For oil-pump assessment, the fitting-clearance table lists 0.080–0.135 mm between the pump body and external rotor. These figures accompany the component inspection and selection procedures.
